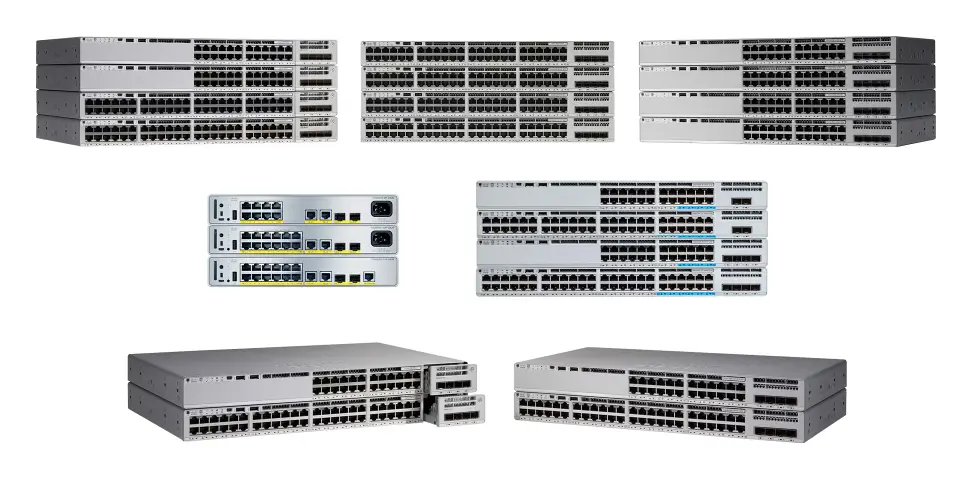

Cisco C9200-48PXG 48 Port Multigigabit PoE+ Yönetilebilir Switch

ModelC9200-48PXG

Cisco C9200-48PXG, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 740 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48 x Multigigabit port
PoE+ destekli portlar, 740W PoE bütçesi
Catalyst 9200 48-port 8xmGig, 40x1G, PoE+

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 53 satır

Değiştirilebilir (FRU) Güç Kaynağı	Yes
Değiştirilebilir (FRU) Fan	Yes
Modüler Uplink	Yes
İstifleme Bant Genişliği	160 Gbps
SD-Access support	Yes (32 virtual networks)
Birincil Güç Kaynağı	PWR-C6-1KWAC
PoE Gücü (tek güç kaynağıyla)	740W
Optional secondary power supply	PWR-C6-1KWAC
Available PoE power with additional secondary power supply	1440W

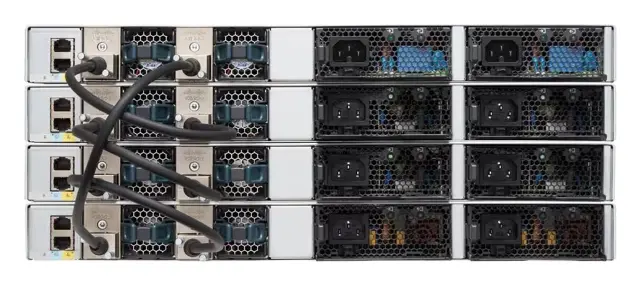

İstifleme Desteği	StackWise-160
Stacking hardware	C9200-STACK-KIT
Stack Üye Sayısı	8
Supported stack members	Other C9200 models with; same license level
Sanal Ağ Sayısı	4 for C9200-24T,; C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL; 32 for C9200-24PB, C9200-48PB
MAC Adres Sayısı	32,000
Total number of IPv4 routes (ARP plus learned routes)	14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 Yönlendirme Girdisi	4,000
IPv6 Yönlendirme Girdisi	2,000
Multicast routing scale	1,000
QoS Girdisi	1,000
ACL Girdisi	1,600
Paket Tamponu	6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	4 GB
Flash Bellek	4 GB
VLAN ID Sayısı	4094
PVST instances	128
STP virtual ports (port VLANs) for PVST	13,000
STP virtual ports (port VLANs) for MST	13,000
Total switched virtual interfaces (SVIs)	512
Jumbo Frame	9198 bytes
Wireless bandwidth per switch	Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model
IP SGT binding scale	8K
Number of IPv4 bindings	8K
Number of SGT/DGT policies	2K
Number of SXP sessions	200
Anahtarlama Kapasitesi	400 Gbps
Switch capacity with Stacking	580 Gbps
İletim Hızı	297.61 Mpps
İletim Hızı with Stacking	431 Mpps
Ağırlık (lb)	11.98
Ağırlık (kg)	5.45
Ortalama Güç Tüketimi (W, ATIS)	109.46
Güvenlik Sertifikaları	IEC 60950-1/62368-1; UL 60950-1/62368-1; CAN/CSA C22.2 No. 60950-1/62368-1; EN 60950-1/62368-1; AS/NZS 60950.1, AS/NZS 62368.1; Class I Equipment
Electromagnetic compatibility certifications	47 CFR Part 15; CISPR 32 Class A; CNS 13438; EN 300 386; EN 55032 Class A; EN61000-3-2; EN61000-3-3; ICES-003 Class A; KN 32; TCVN 7189 Class A; V-3 Class A; CISPR 35; EN 300 386; EN 55035; KN 35; TCVN 7317
Ortam Koşulları	Reduction of Hazardous Substances (ROHS) 5
TAC support	Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9200 Series product. This support does not include solution or network-level support beyond the specific device under consideration.
Devices covered	Applies to Cisco Catalyst 9200 Series Switches.
Warranty duration	As long as the original customer owns the product.
End-of-life policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
Cisco.com access	Warranty allows guest access only to Cisco.com.

Fiziksel Özellikler 4 satır

Kasa Boyutları Inches	1.73 x 17.5 x 13.8
Kasa Boyutları Centimeters	4.4 x 44.5 x 35.0
Chassis + FEP + Fan dimensions (HxWxD) Inches	1.73 x 17.5 x 15.4
Chassis + FEP + Fan dimensions (HxWxD) Centimeters	4.4 x 44.5 x 39.1

PoE 1 satır

PoE Bütçesi	740W

Sipariş Bilgileri 3 satır

Sipariş Kodları (PID)	C9200-48PXG-E, C9200-48PXG-A
Lisans Seçenekleri	-E: Network Essentials, -A: Network Advantage
Ürün Tanımı (Üretici)	Catalyst 9200 48-port 8xmGig, 40x1G, PoE+

Güç 2 satır

Power connectors	Internal power supply connector: The internal power supply is an auto-ranging unit.; It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Connectors and cabling	1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, Dense Wavelength-Division Multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single- mode or multimode fiber); 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM …

Power connectors

Internal power supply connector: The internal power supply is an auto-ranging unit.; It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

Connectors and cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, Dense Wavelength-Division Multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single- mode or multimode fiber); 10GBASE-SR, LR, LRM (only C9200), ER, ZR, DWDM …

Genel bakış

Cisco C9200-48PXG kullanım alanları ve özellikleri.

Cisco Catalyst 9200 serisi C9200-48PXG, 48 adet Multigigabit port, PoE+ desteği ve 740W PoE bütçesi sunan yönetilebilir katman 2/3 switch'tir.

Cisco Catalyst ™ 9200 Series Switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, the Catalyst 9200 Series switches offer simplicity without compromise —they are secure, always on, and IT simplified .

As foundational building blocks for the Cisco ® Networking Cloud, Catalyst 9200 Series Switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Öne Çıkan Özellikler

48 x Multigigabit port
PoE+ destekli portlar, 740W PoE bütçesi
Catalyst 9200 48-port 8xmGig, 40x1G, PoE+

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9200 Datasheet (EN)PDF · C9200-48PXG Catalyst 9200 Datasheet (PDF)PDF · C9200-48PXG

Sık sorulanlar

C9200-48PXG hakkında kısa yanıtlar.

C9200-48PXG IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 740 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

C9200-48PXG kaç portlu?

C9200-48PXG 48 porta sahiptir.

C9200-48PXG fiyatı ne kadar?

C9200-48PXG için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
