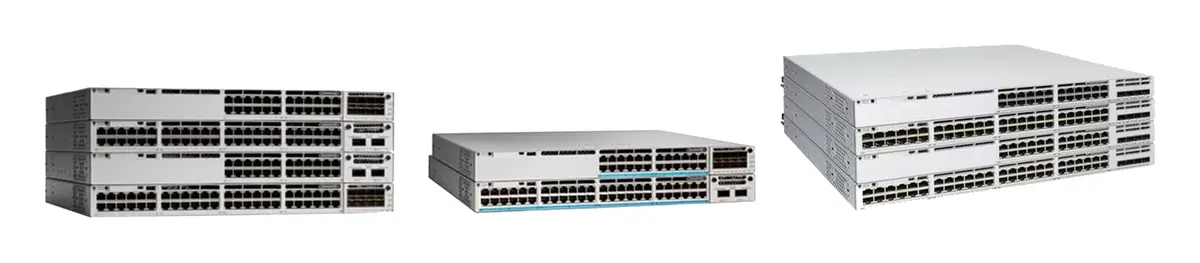

Cisco C9300X-24HX 24 Port Multigigabit UPOE+ Yönetilebilir Switch

ModelC9300X-24HX

Cisco C9300X-24HX, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

24 x Multigigabit port
UPOE+ destekli portlar
Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 49 satır

Birincil Güç Kaynağı	PWR-C1-1900WAC-P/ PWR-C1-1900WHV-T
Available PoE	1535W
With 350W secondary PS	1885W
With 715W secondary PS	2160W
With 1100W secondary PS	2160W
With 1900W secondary PS	2160W
İstifleme Desteği	StackWise-1T
İstifleme Bant Genişliği	1 Tbps
Optional stacking hardware	StackWisecable
Stack Üye Sayısı	8
Supported stack members	Stacks with other Catalyst 9300X models at StackWise-1T speeds with same license level; Stacks with C9300 SKUs at StackWise-480 speeds with same license level
MAC Adres Sayısı	32,000
Total number of IPv4 routes (ARP plus learned routes)	39,000 (24,000 direct routes and 15,000 indirect routes)
IPv6 Yönlendirme Girdisi	19,500
Multicast routing scale	8,000
QoS Girdisi	4,000
ACL Girdisi	8,000
Paket Tamponu	16-MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port fiber; 32-MB buffer for 48-port 10G Multigigabit and 24-port fiber
FNF entries	64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port fiber; 128,000 flows on 48-port 10G Multigigabit and 24-port fiber
DRAM	16 GB
Flash Bellek	16 GB
VLAN ID Sayısı	4094
PVST Instances	300
STP virtual ports (port VLANs) for PVST	13,000
STP virtual ports (port VLANs) for MST	13,000
Total switched virtual interfaces (SVIs)	1000
Jumbo Frame	9198 bytes
Total routed ports per Catalyst 9300 Series stack	448
Anahtarlama Kapasitesi	800 Gbps
Anahtarlama Kapasitesi with stacking	1,880 Gbps
İletim Hızı	654.72 Mpps
İletim Hızı with stacking	1398.72 Mpps
Ortalama Güç Tüketimi (W, ATIS)	161.3
Power connectors	Customers can power up the switch by plugging in a power cord to the power supply AC inlet at the back of the switch; The 350W, 715W, 1100W and 1900W (AC input version) power supplies are auto-ranging between 100 (115 V for 1100W and 1900W AC version) and 240 VAC. For 1900W AC version, when AC input is 115V, the maximum power is limited to 1500W
Güvenlik Sertifikaları	UL 60950-1; CAN/CSA-C222.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950.1; IEEE 802.3
Electromagnetic compatibility certifications	47 CFR Part 15; EN 300 386 V1.6.1; EN 55032 Class A; CISPR 32 Class A; EN61000-3-2; EN61000-3-3; ICES-003 Class A; TCVN 7189 Class A; V-3 Class A; CISPR 35; EN 300 386; EN 55035; TCVN 7317; V-2/2015.04; V-3/2015.04; CNS13438; KN32; KN35; Additional certifications for C9300L SKUs: QCVN 118:2018/BTTTT; VCCI-CISPR 32 Class A
Ortam Koşulları	Reduction of Hazardous Substances (ROHS) 5
TAC support	Cisco will provide during business hours, 8 hours per day, 5 days per week, basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 9300 Series product. This support does not include solution or network-level support beyond the specific device under consideration.
Connectors and cabling	1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling; 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling; SFP transceivers: LC fiber connectors (single-mode or multimode fiber); SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber); QSFP+ transceivers: MPO and LC fiber …
Devices covered	Applies to Cisco Catalyst 9300 Series Switches.
Warranty duration	As long as the original customer owns the product.
End-of-life policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the Return Materials Authorization (RMA) request. Actual delivery times might vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
Cisco.com access	Warranty allows guest access only to Cisco.com.
10 Gbps MA-SFP-10GB-SR MA-SFP-10GB-LR MA-SFP-10GB-ER MA-SFP-10GB-ZR	C9300, C9300L, C9300X
40 Gbps MA-QSFP-40G-CSR4	C9300
40 Gbps MA-QSFP-40G-SR-BD	C9300, C9300X
100 Gbps MA-QSFP-100G-LR4 MA-QSFP-100G-SR4	C9300, C9300L, C9300X

Fiziksel Özellikler 9 satır

Chassis only	1.73 x 17.5 x 17.57
With default power supply	1.73 x 17.5 x 20.63
With 1100W power supply	1.73 x 17.5 x 20.63
Boyutlar (h x w x d) W/ Default Power Supply	1.73” x 17.5” x 20.63”; (4.4 x 44.5 x 52.4cm)
Ağırlık w/ Default Power Supply	13.8 lb (6.25 kg)
Montaj Tipi	1U Rack Mount
Hot Swap Fans	Yes, 3x
Çalışma Sıcaklığı	-5°C to 45°C
Nem	5 to 90%

Güç 7 satır

Ağırlık (lb)	13.8
Ağırlık (kg)	6.25
Default Power Supply	PWR-C1-1100WAC-P-M
Hot Swap Power Supply	Yes, Dual
Available PoE W/ Primary PS	735W
Available PoE W/ Secondary PS	1835W
Power Load (idle/max)	127.2 / 912.6 W

Sipariş Bilgileri 3 satır

Sipariş Kodları (PID)	C9300X-24HX-E, C9300X-24HX-A, C9300X-24HX-M
Lisans Seçenekleri	-E: Network Essentials, -A: Network Advantage
Ürün Tanımı (Üretici)	Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+

Arayüzler 5 satır

Arayüzler	24 x mGig UPoE+ RJ45; 24 x 10G mGig
Uplinks (SFP+, SFP28, QSFP+, QSFP28)	Modular
1T/480G Hardware Stack Ports	2
Dedicated Management Interface	1
PoE/ UPoE Capabilities	UPoE+

PoE 4 satır

Primary PSU	PWR-C1-1100WAC-P-M
PoE	735W
With Secondary PSU	1835W
w/ 1900W Secondary PSU	2160W

Yazılım Özellikleri 7 satır

İstifleme (Stack)	Physically stack up to 8 switches with 1Tbps of switching capacity with stacking on all models (backward compatible with 480G); Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration; Faster convergence; StackPower in a ring topology supporting upto 4 switches
Highlights	Layer-3; 40G/100G or 10G/25G modular uplink options on all models; mGig support; 1T/480G Dual Dedicated Hardware Stacking Ports; 90W UPoE+ Support (802.3bt); StackPower in a ring topology supporting upto 4 switches
Yönetim	Managed via Cisco Meraki Dashboard; Zero-touch remote provisioning (no staging needed); Basic configuration capability via local management page; Detailed historical per-port and per-client usage statistics; Operating System, device, and hostname fingerprinting; Automatic firmware upgrades with scheduling control; SNMP and SYSLOG support for integration with other network management solutions
Remote Diagnostics	Email, SMS and Mobile push notification alerts1; Ping, traceroute, cable testing, and link failure detection with alerting; Remote packet capture; Dynamic and interactive network discovery and topology; Combined event and configuration change logs with instant search
Ethernet Switching Capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping); 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled); Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST); STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD; Broadcast storm control; 802.1ab Link Layer Discovery Protocol …
Katman	Static routing, OSPFv2; Multicast routing (ASM: PIM-SM); Warm Spare (VRRP) *; DHCP Server, DHCP Relay
Security	Integrated multi-factor authentication for Dashboard management; Role-based access control (RBAC) with granular device and configuration control; Corporate wide password policy enforcement; IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing; Single-Host/Multi-Domain/Multi-Host/Multi Authentication; Port security: Sticky MAC, MAC allow list*; DHCP snooping, detection and …

Genel bakış

Cisco C9300X-24HX kullanım alanları ve özellikleri.

Cisco Catalyst 9300 serisi C9300X-24HX, 24 adet Multigigabit port, UPOE+ desteği sunan yönetilebilir katman 2/3 switch'tir.

Cisco Catalyst ™ 9300 Series Switches are Cisco’s lead stackable enterprise access switching platform and, as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce, big or small. With Catalyst 9300 Series switches, you choose how you want to manage your network – on-premises, virtual, or from the cloud.

Öne Çıkan Özellikler

24 x Multigigabit port
UPOE+ destekli portlar
Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9300 Datasheet (EN)PDF · C9300X-24HX Catalyst 9300 Datasheet (PDF)PDF · C9300X-24HX Catalyst 9300X-M Datasheet (EN)PDF · C9300X-24HX

Sık sorulanlar

C9300X-24HX hakkında kısa yanıtlar.

C9300X-24HX IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.

C9300X-24HX kaç portlu?

C9300X-24HX 24 porta sahiptir.

C9300X-24HX fiyatı ne kadar?

C9300X-24HX için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
