PoE Switch Cisco Business 350 Üretimi durdu

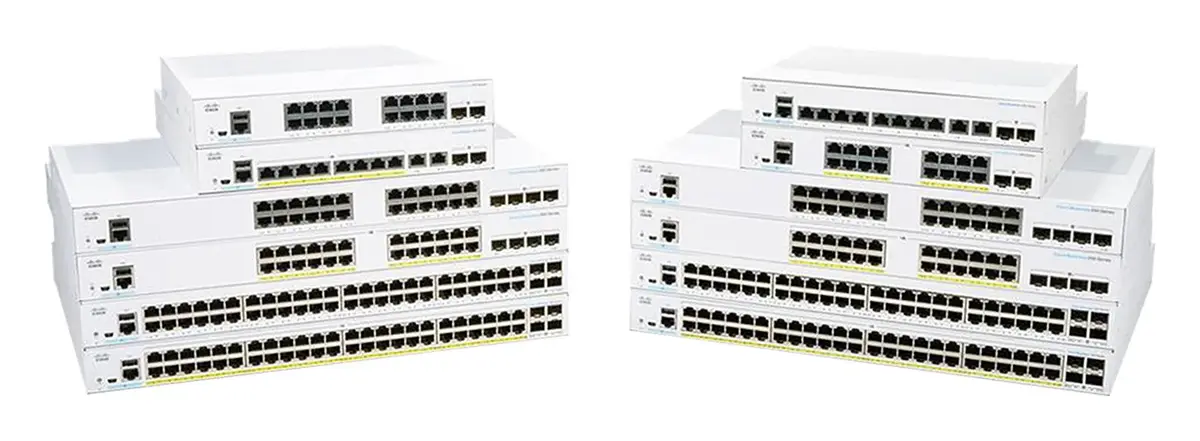

Cisco CBS350-8FP-2G 8 Port Gigabit PoE+ 2x1G SFP Yönetilebilir Switch

ModelCBS350-8FP-2G

Cisco CBS350-8FP-2G, 8 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 120 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 8 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

8 x Gigabit port
PoE+ destekli portlar, 120W PoE bütçesi
2x1G SFP uplink
8 10/100/1000 PoE+ ports with 120W power budget
2 Gigabit copper/SFP combo ports
Rack-mountable

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Performans 2 satır

İletim Hızı (Mpps, 64 bayt)	14.88
Anahtarlama Kapasitesi (Gbps)	20.0

PoE 2 satır

PoE Bütçesi	120W
PoE Destekli Port Sayısı	8

Güç 6 satır

Sistem Güç Tüketimi	110V=17.29W; 220V=17.88W
Güç Tüketimi (with PoE)	110V=148.12W; 220V=146.36W
Heat Dissipation (BTU/hr)	505.41
Disable port LEDs	LEDs can be manually turned off to save on energy
Time-based port operation	Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE	PoE power can be on or off based on user-defined schedule to save energy

Arayüzler 3 satır

Toplam Port	10 x Gigabit Ethernet
RJ-45 Portlar	8 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	2 x Gigabit Ethernet combo

Teknik Özellikler 3 satır

Paket Tamponu	1.5 MB
Jumbo Frame	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC Tablosu	16K addresses

Fiziksel Özellikler 2 satır

Boyutlar	268 x 272 x 44 mm (10.56 x 10.71 x 1.73 in)
Ağırlık	2.59 kg (5.71 lb)

Ortam Koşulları 7 satır

Fan Sayısı	Fanless
MTBF at 25°C (hours)	1,786,412
Güç	100-240V 50-60 Hz, internal, universal: CBS350-8P-2G, CBS350-8FP-2G, CBS350-16T-2G, CBS350-16P-2G, CBS350-16FP-2G, CBS350-24T-4G, CBS350-24P-4G, CBS350-24FP-4G, CBS350-24S-4G, CBS350-48T-4G, CBS350-48P-4G, CBS350-48FP-4G, CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X, CBS350-8MGP-2X, CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, …
Sertifikalar	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Depolama Sıcaklığı	-13° to 158°F (-25° to 70°C)
Çalışma Nemi	10% to 90%, relative, noncondensing
Depolama Nemi	10% to 90%, relative, noncondensing

Sipariş Bilgileri 2 satır

Ürün Tanımı (Üretici)	● 8 10/100/1000 PoE+ ports with 120W power budget ● 2 Gigabit copper/SFP combo ports ● Rack-mountable
Satış Sonu (End-of-Sale) Tarihi	29.10.2024

Yazılım Özellikleri 31 satır

Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP); Up to 8 groups; Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4,094 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN; Management VLAN; Private VLAN with promiscuous, isolated, and community port; Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks; Guest VLAN, unauthenticated VLAN; Dynamic VLAN assignment via RADIUS server along with 802.1x …
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers network wide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
VLAN Translation	Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN
IPv4 routing	Wirespeed routing of IPv4 packets; Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Layer 3 Interface	Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)	Support for classless interdomain routing
Policy-Based Routing (PBR)	Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
IPv6 RFCs supported	RFC 4443 (which obsoletes RFC2463): ICMP version 6; RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture; RFC 4291: IPv6 addressing architecture; RFC 2460: IPv6 specification; RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6; RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address autoconfiguration; RFC 1981: path MTU discovery; RFC 4007: IPv6 scoped address …
Web user interface	Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS).; Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search
IPv4 and IPv6 dual stack	Coexistence of both protocol stacks to ease migration
Port mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.
VLAN mirroring	Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.
Remote Switch Port Analyzer (RSPAN)	Traffic can be mirrored across Layer 2 domain to a remote port on a different switch for easier troubleshooting
Smartports	Simplified configuration of QoS and security capabilities
Auto Smartports	Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments
Spanning Tree Protocol	Standard 802.1d Spanning Tree support; Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default; Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported; Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Q-in-Q	VLANs transparently cross a service provider network while isolating traffic among customers
Selective Q-in-Q	Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs; Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag; Layer 2 protocol tunneling over Q-in-Q is also supported
Unidirectional Link Detection (UDLD)	UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks
Dynamic Host Configuration Protocol (DHCP) Relay at Layer	Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP proxy	The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols.
Head-of-Line (HOL) blocking	HOL blocking prevention
Loopback Detection	Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
RIP v2	Support for Routing Information Protocol version 2 for dynamic routing
DHCP Server	Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes; Support for DHCP options
DHCP relay at Layer	Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay	Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets

İstifleme 3 satır

Hardware stacking	Up to 4 units in a stack. Up to 200 ports managed as a single system with hardware failover; Stacking is supported on the following models; CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X; CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, CBS350-48NGP-4X; CBS350-8XT, CBS350-12XS, CBS350-12XT, CBS350-16XTS, CBS350-24XS, CBS350-24XT, CBS350-24XTS, CBS350-48XT-4X
Plug-and-play stacking configuration/management	Active/standby for resilient stack control; Autonumbering; Hot swap of units in stack; Ring and chain stacking options, auto stacking port speed, flexible stacking port options
High-speed stack interconnects	Cost-effective high-speed 10G fiber interfaces.

Güvenlik 5 satır

IP/MAC/Port Binding (IPMB)	The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DOS attacks in the network, thereby increasing network availability
Secure Sensitive Data (SSD)	A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure auto config. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user.
Private VLAN	Private VLAN provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks
Layer 2 isolation Private VLAN Edge (PVE)	PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
Port security	Ability to lock source MAC addresses to ports and limits the number of learned MAC addresses

Model Özellikleri 5 satır

Konsol Portu	Cisco standard RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Flash Bellek	256 MB
İşlemci	800 MHz ARM
DRAM	512 MB

Genel bakış

Cisco CBS350-8FP-2G kullanım alanları ve özellikleri.

Cisco Business 350 serisi CBS350-8FP-2G, 8 adet Gigabit port, PoE+ desteği ve 120W PoE bütçesi, 2x1G SFP uplink sunan yönetilebilir katman 2/3 switch'tir.

From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind while ongoing management and operations add additional complexity that take time and resources.

Cisco Business is a portfolio of affordable wireless access points, switches and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience.

Öne Çıkan Özellikler

8 x Gigabit port
PoE+ destekli portlar, 120W PoE bütçesi
2x1G SFP uplink
8 10/100/1000 PoE+ ports with 120W power budget
2 Gigabit copper/SFP combo ports
Rack-mountable

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Business 350 Datasheet (EN)PDF · CBS350-8FP-2G Cisco Business 350 Datasheet (PDF)PDF · CBS350-8FP-2G

Sık sorulanlar

CBS350-8FP-2G hakkında kısa yanıtlar.

CBS350-8FP-2G IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 120 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

CBS350-8FP-2G kaç portlu?

CBS350-8FP-2G 8 porta sahiptir.

CBS350-8FP-2G fiyatı ne kadar?

CBS350-8FP-2G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
