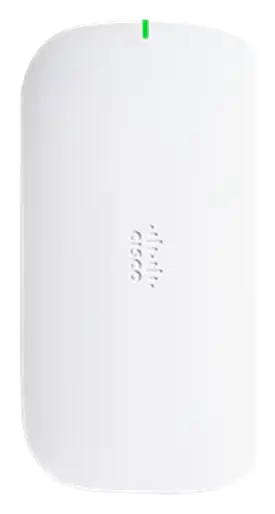

Cisco CBW151AXM Wi-Fi 6 Dış Ortam Mesh Genişletici
Model
CBW151AXMCisco CBW151AXM mesh genişletici: Wi-Fi 6 standardı, Kullanım: Dış Ortam, Wi-Fi 6 (802.11ax), Uplink/downlink OFDMA, Downlink MU‑MIMO technology.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Wi-Fi 6 standardı
- Kullanım: Dış Ortam
- Wi-Fi 6 (802.11ax)
- Uplink/downlink OFDMA
- Downlink MU‑MIMO technology
- Simplified management
- Mesh technology support
- Bluetooth 5
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Sipariş Bilgileri 1 satır
| Sipariş Kodları (PID) | CBW151AXM-x-NA, CBW151AXM-x-EU, CBW151AXM-x-UK, CBW151AXM-x-AU |
|---|
Teknik Özellikler 18 satır
| Maks. İstemci Sayısı | Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system |
|---|---|
| Maximum # of Access Points | 50; Recommended up to 25 |
| 802.11ax (Wi-Fi 6/6E) | 2x2 downlink MU-MIMO with two spatial streams; Uplink/downlink OFDMA; Target wake time (TWT); Basic Service Set (BSS) coloring; Maximal Ration Combining (MRC); 802.11ax beamforming; 20-, 40-, 80-channels; PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive); Aggregate MAC Service Data Unit … |
| 802.11ac (Wi-Fi 5) | 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz; 20-, 40-, and 80-MHz channels; DFS |
| Integrated antennas | 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Boyutlar (W x L x H) | CBW151AXM-x-NA: 6.7 x 3.6 x 2.1 in. (170.2 x 91.5 x 53.4 mm); CBW151AXM-x-EU: 6.7 x 3.6 x 2.7 in. (170.2 x 91.5 x 68.6 mm); CBW151AXM-x-UK: 6.7 x 3.6 x 2.4 in. (170.2 x 91.5 x 61 mm); CBW151AXM-x-AU: 6.7 x 3.6 x 2.2 in. (170.2 x 91.5 x 55.9 mm) |
| Ağırlık | CBW151AXM-x-NA: 10 oz (285 g); CBW151AXM-x-EU: 10.3 oz (291 g); CBW151AXM-x-UK: 10.6 oz (300 g); CBW151AXM-x-AU: 10.2 oz (289 g) |
| Ortam Koşulları | Operating; Temperature: 32° to 104°F (0° to 40°C); Humidity: 10% to 90% (noncondensing); Maximum altitude: 9843 ft (3000 m) at 40°C; Nonoperating (storage and transportation); Temperature: –22° to 158°F (–30° to 70°C); Humidity: 10% to 90% (noncondensing); Maximum altitude: 15,000 ft (4500 m) at 25°C |
| Güç Tüketimi | 8.3W |
| Authentication and security | Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication; 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA); Segmentation via VLANs (up to 16); 802.11r and 802.11i; Guest network can also authenticate against a Social Login account: Google and Facebook |
| Max # of Mesh Extenders | Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops |
| Management Compatibility | A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity; CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard version 2.4.1 and higher |
| Desteklenen Veri Hızları | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| System | 1 GB DRAM, 256 MB flash; 1GHz quad core processor |
| Besleme Seçenekleri | 100-240V 50/60Hz AC Power |
| Physical security | Kensington lock slot |
| Compliance | Safety: UL 60950-1; CAN/CSA-C22.2 No. 60950-1; IEC 60950-1; EN 60950-1; IEC 62368-1; EN 62368-1; UL/CUL 62368-1; Radio approvals: FCC Part 15.247, 15.407; RSS-247; EN 300.328, EN 301.893; EN 50385; ARIB-STD 66; ARIB-STD T71; EMC: EMI and susceptibility (Class B); FCC 15B; ICES-003; VCCI (Japan); EN 301.489-1 and -17; EN 55032, EN55035; IEEE standards: IEEE 802.11a/b/g/n/ac/ax; IEEE 802.11h, … |
Genel bakış
Cisco CBW151AXM kullanım alanları ve özellikleri.
Cisco CBW151AXM, Cisco Business Wireless 151AXM serisinden Wi-Fi 6 dış ortam kullanım için tasarlanmış kurumsal mesh genişletici cihazıdır.
The Cisco Business 151AXM Mesh Extender delivers industry-leading wireless performance with support for the latest Wi-Fi 6 standard, IEEE’s 802.11ax (Figure 1). It also meets the growing flexibility of wireless networks by introducing mesh technology, which enables scalable expansion of the network where network cabling may not exist—all while delivering a simple user experience, deployable with the Cisco Business Mobile app or the integrated WebUI.
The 151AXM Mesh Extender extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated Wi-Fi 6 capabilities, while being backwards compatible with the previous 802.11ac Wave 1 or Wave 2 standards.
Öne Çıkan Özellikler
- Wi-Fi 6 standardı
- Kullanım: Dış Ortam
- Wi-Fi 6 (802.11ax)
- Uplink/downlink OFDMA
- Downlink MU‑MIMO technology
- Simplified management
- Mesh technology support
- Bluetooth 5
- Flexible deployment
- Optional Cloud-based Security
Tüm özellikler
- Wi-Fi 6 standardı
- Kullanım: Dış Ortam
- Wi-Fi 6 (802.11ax)
- Uplink/downlink OFDMA
- Downlink MU‑MIMO technology
- Simplified management
- Mesh technology support
- Bluetooth 5
- Flexible deployment
- Optional Cloud-based Security
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
CBW151AXM hakkında kısa yanıtlar.
CBW151AXM fiyatı ne kadar?
CBW151AXM için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
