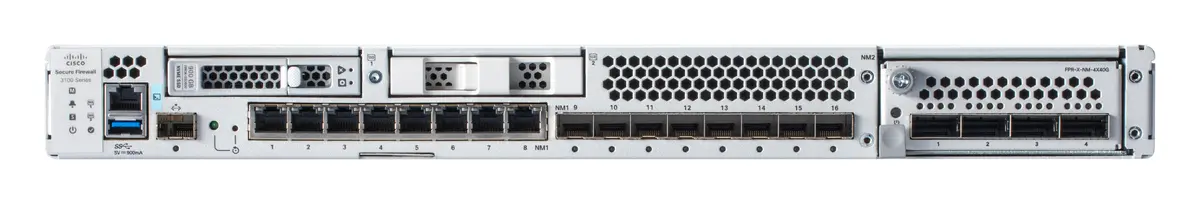

Cisco FPR3130 Secure Firewall 3100 1U Rack Firewall

ModelFPR3130

Cisco FPR3130 firewall.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 65 satır

Firewall	42G
FW+AVC+IPS	38G
IPS Performansı	38G
Arayüzler	8 x RJ45, 8 x 1/10/25G SFP+
Optional interfaces	10G/25G/40G SFP+, 4X40G NM
Throughput: FW + AVC (1024B)	38.0 Gbps
Throughput: FW + AVC + IPS (1024B)	38.0 Gbps
Maks. Eşzamanlı Oturum (AVC ile)	6 million
Saniyedeki Yeni Bağlantı (AVC ile)	240,000
TLS Performansı	9.1 Gbps
Throughput: NGIPS (1024B)	38.0 Gbps
IPSec VPN Throughput (1024B TCP w/Fastpath)	17.8 Gbps
Projected IPSec VPN Throughput (1024B TCP w/Fastpath) with VPN Offload (FTD 7.2)	33.0 Gbps
Maks. VPN Eşi	15,000
Local On-device Management	Yes
Centralized management	Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator
Application Visibility and Control (AVC)	Standard, supporting more than 4000 applications, as well as geolocations, users, and websites
AVC: OpenAppID support for custom, open source, application detectors	Standard
Cisco Security Intelligence	Standard, with IP, URL, and DNS threat intelligence
Cisco Malware Defense	Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available
Cisco Secure Malware Analytics	Available
URL Filtering: number of categories	More than 80
URL Filtering: number of URLs categorized	More than 280 million
Automated threat feed and IPS signature updates	Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos Group; (https://www.cisco.com/c/en/us/products/security/talos.html)
Third-party and open-source ecosystem	Open API for integrations with third-party products; Snort and OpenAppID community resources for new and specific threats
High availability and clustering	Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis (no clustering on 3105)
Cisco Trust Anchor Technologies	Secure Firewall 3100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details
Durum Denetimli Firewall Performansı	42.0 Gbps
Stateful inspection firewall throughput (multiprotocol)	39.0 Gbps
Concurrent firewall connections	6 million
Saniyedeki Yeni Bağlantı	875,000
IPsec VPN throughput (450B UDP L2L test)	14 Gbps
Projected IPsec VPN throughput (450B UDP L2L test) with VPN Offload (ASA 9.18)	28.0 Gbps
Security contexts (included; maximum)	2; 100
High availability	Active/active and active/ standby
Clustering	8
Scalability	VPN Load Balancing
Adaptive Security Device Manager	Web-based, local management for small-scale deployments
Boyutlar (Y x G x D)	1.75 x 17 x 20 in.; (4.4 x 43.3 x 50.8 cm)
Form Faktörü (RU)	1RU
Dahili G/Ç Portları	8 x 10M/100M/; 1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10/25 Gigabit (SFP) Ethernet interfaces
Ağ Modülleri	8 x 1/10/25G,; 4 x 40G Options,
Maks. Arayüz Sayısı	Up to 24 total Ethernet ports (8x1G RJ-45, 8x1/10/25G SFP, and network module)
Dahili Yönetim Portları	1 x 1/10G SFP
Seri Port	1 x RJ-45 console
USB	1 x USB 3.0 Type-A (900mA)
Depolama	1x 900 GB, 1x spare slot
Güç Kaynağı Yapılandırması	Dual 400W AC.; Single/dual 400W DC optional
AC Giriş Gerilimi	100 to 240V AC
AC maximum input current	< 6A at 100V
AC maximum output power	400W
AC frequency	50 to 60 Hz
AC efficiency	>89% at 50% load
DC input voltage	-48V to -60VDC
DC maximum input current	< 12.5A at -48V
DC maximum output power	400W
DC efficiency	>88% at 50% load
Redundancy	1+1 AC or DC with dual supplies
Fan	2 hot-swappable fan modules (with 2 fans each)
Noise	65 dBA@ 25C; 74 dBA maximum
Güvenlik Sertifikaları	UL 62368-1; CAN/CSA-C22.2 No. 62368-1; EN 62368-1; IEC 62368-1; IEC 60950-1; AS/NZS 62368-1; GB4943
EMC: emissions	FCC 47CFR15 Class A; AS/NZS CISPR 32 Class A; EN55032/CISPR 32 Class A; ICES-003 Class A; VCCI Class A; KS C 9832 Class A; CNS-13438 Class A; EN61000-3-2 Power Line Harmonics; EN61000-3-3 Voltage Changes, Fluctuations, and Flicker
EMC: Immunity	IEC/EN61000-4-2 Electrostatic Discharge Immunity; IEC/EN61000-4-3 Radiated Immunity; IEC/EN61000-4-4 EFT-B Immunity; IEC/EN61000-4-5 Surge; IEC/EN61000-4-6 Immunity to Conducted Disturbances; IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations; KS C 9835
EMC: ETSI/EN	EN 300 386 Telecommunications Network Equipment (EMC); EN55032/CISPR 35 Multimedia Equipment (Emissions); EN55024/CISPR 24 Information Technology Equipment (Immunity); EN55035/CISPR 35 Multimedia Equipment (Immunity); EN61000-6-1 Generic Immunity Standard
Mevzuat Uyumluluğu	Products comply with CE markings per directives 2004/108/EC and 2006/108/EC

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	FPR3130-NGFW-K9, FPR3130-ASA-K9

Genel bakış

Cisco FPR3130 kullanım alanları ve özellikleri.

Cisco FPR3130, Secure Firewall 3100 ailesinden yeni nesil (NGFW) güvenlik duvarıdır; firewall performansı 38.0 Gbps.

The mid-range Cisco Secure Firewall 3100 Series supports your evolving world. It makes hybrid work and zero trust practical, with the flexibility to ensure strong return on investment.

The Cisco Secure Firewall 3100 Series is a family of threat-focused security appliances that delivers business resiliency and superior threat defense. Each model offers outstanding performance for multiple firewall use cases, even when advanced threat functions are enabled . These performance capabilities are enabled by a modern CPU architecture coupled with purpose-built hardware that optimizes firewall, cryptographic, and threat inspection functions.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Secure Firewall 3100 Datasheet (EN)PDF · FPR3130 Secure Firewall 3100 Datasheet (PDF)PDF · FPR3130

Sık sorulanlar

FPR3130 hakkında kısa yanıtlar.

FPR3130 fiyatı ne kadar?

FPR3130 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, FPR3130 için fiyat ve teslim süresini iletelim.
