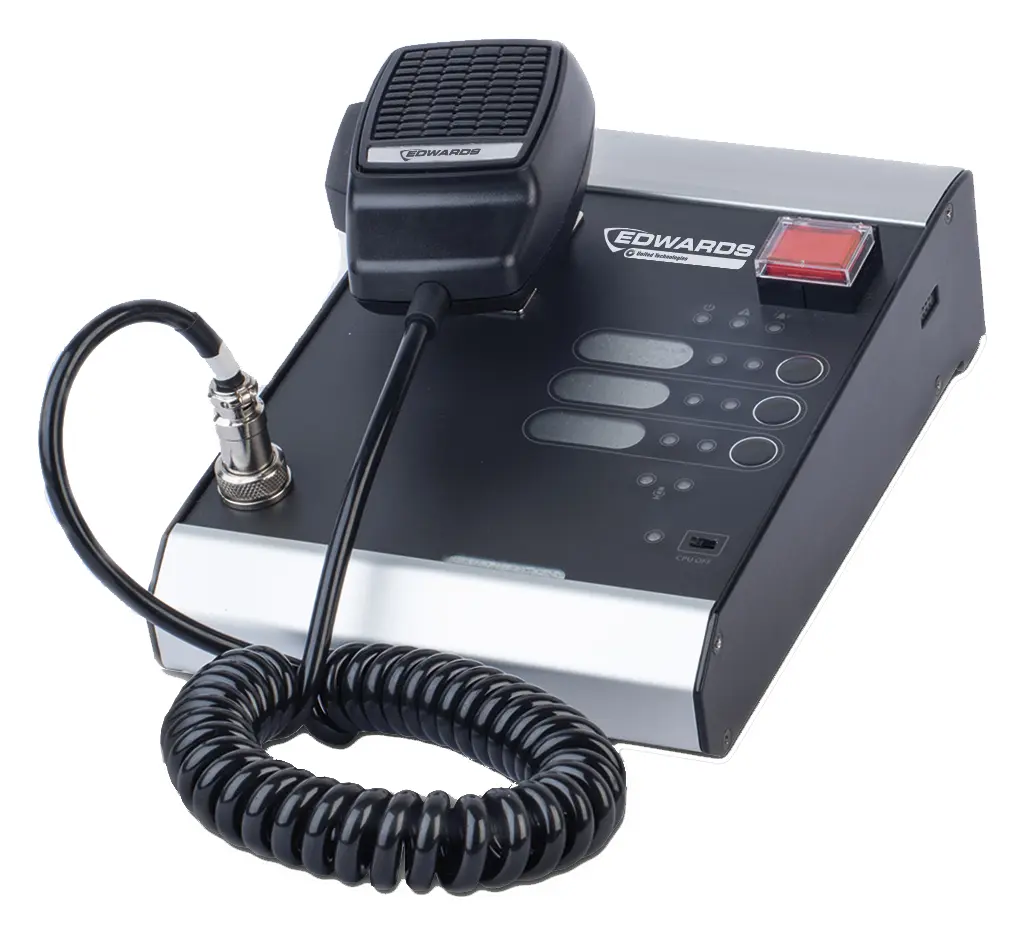

Edwards EST-DFMS Acil Anons Mikrofonu

Edwards EST-DFMS (PAVA EST Fireman Microphone ailesi), acil anons mikrofonu ürünüdür.

Overview

A EST ENT VES fireman microphone is a monitored external device working with Control Units in a redundant communication ring. It can thereby perform a superior function of a system control unit, too.

A fireman microphone can be used to activate alarm messages as well as general public announcements, to choose individual zones and to broadcast live voice messages. It is equipped with programmable function keys which can be used to assign functions as required. Up to 5 EST-EKB-20M keyboard extensions with additional function keys can be attached to a fireman microphone.

A CPU switch enables immediate and direct broadcasting of announcements to all zones without any involvement of the control system even during a failure of the central processor. The microphone is able to automatically detect a key failure and an audio path from the microphone capsule (inclusive) to the Control Unit.

A fireman microphone is also equipped with an intercom function and is able to communicate with other microphones in the system.

Öne Çıkan Özellikler

• Monitored microphone and connection of the microphone module to the system
• A dedicated evacuation key
• 3 fully-programmable keys with a possibility of connecting up to five 20-key extensions
• Built-in 2 contact inputs and 2 relay outputs
• POE or external feeder based power supply
• Black-box function – recording all announcements played during an alarm
• Built-in SFP modules and CAT5e for simplicity of implementation of the loop topology
• RS485 for communication with external systems
• Intercom function between all fireman and zone microphones

Nerelerde kullanılır?

Yangın ve acil durumlarda yangın algılama sistemiyle entegre çalışarak kayıtlı tahliye mesajlarını bölge bazında otomatik olarak yayınlar.

Tüm özellikler

• Fireman Microphone
• Monitored microphone and connection of the microphone module to the system
• A dedicated evacuation key
• 3 fully-programmable keys with a possibility of connecting up to five 20-key extensions
• Built-in 2 contact inputs and 2 relay outputs
• POE or external feeder based power supply
• Black-box function – recording all announcements played during an alarm
• Built-in SFP modules and CAT5e for simplicity of implementation of the loop topology
• RS485 for communication with external systems
• Intercom function between all fireman and zone microphones
