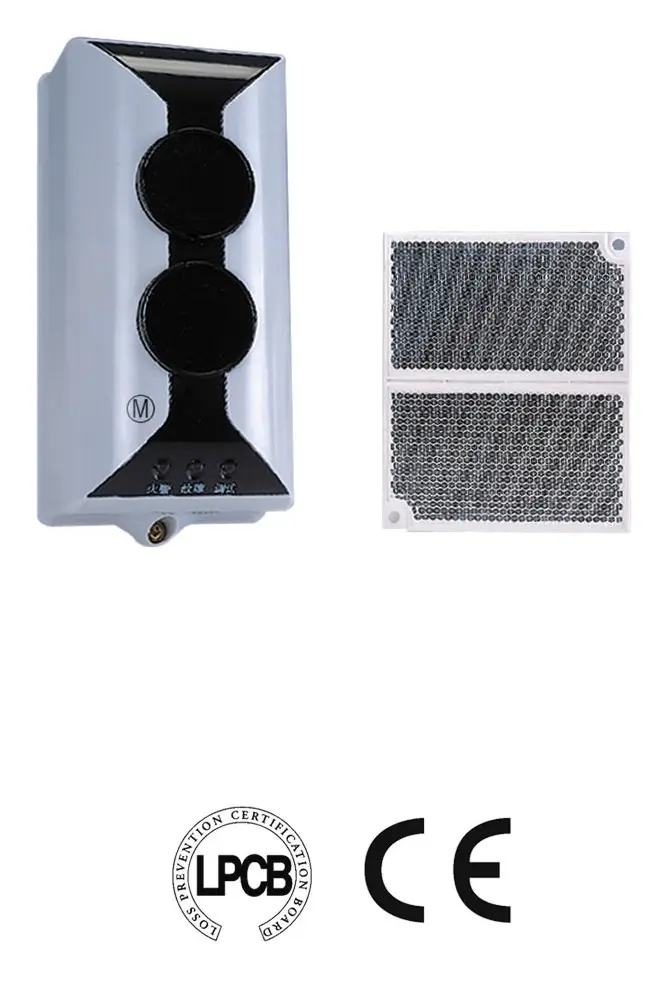

GST DI-9105E Adresli Işın Tipi Dedektör

GST DI-9105E, EN54 (CE) ürün gamında yer alan adresli ışın tipi dedektör modelidir. Öne çıkan değerler: çalışma gerilimi Loop 24V (16V～28V）; standart: EN 54-12.

GST DI-9105E Intelligent Reflective Beam Detector

DI-9105E is an intelligent loop powered addressable reflective beam detector, with excellent built-in microprocessor, the detector can carry out system adjustment, drift compensation of ambient data, and judgment of fire and fault through fixed algorithm. The detector has an integral visible laser pointer and 2 bits digital tube. It is easy to install and align with the reflector, convenient for commissioning with indications of 2 bits digital tube displaying received light intensity. The sensitivity of the detector can be set through handheld programmer in field, suitable for various applications including large storage zones, shopping malls, fitness centers, gyms, exhibition halls, hotel lobbies and areas with complex ceilings.

Özellikler

• Loop powered.
• Wide operating voltage range, large monitoring areas.
• Combination of the emitting and receiving part makes mounting easy and optical pathway accurate.
• Built-in microprocessor enables intelligent judgment about fire alarm and fault.
• Easy alignment and commissioning via supporting of onboard laser pointer and digital signal intensity indication.
• Self-diagnostic function can monitor the internal fault.
• Drift compensation for factors changing, such as a certain of dust accumulation, positional excursion, 21 21 Structure and Operation Principle 1) Appearance of the detector is shown in Fig.1.
• It is not roofed.
• The ceiling is lower than 1.5m.
• There is much dust, powder or vapor.
• It generates a lot of dust in some certain conditions even though it is clean in normal state.
• The places are very hot. Note: The air temperature in the transparent ceiling will exceed 55℃ while the sun is shining.

Sertifikalar ve Uyumluluk

• Standards: EN 54-12

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
