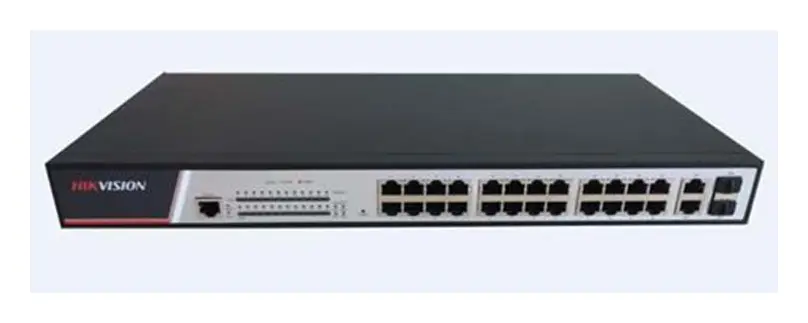

Hikvision DS-3E2326P 24 Port Gigabit Yönetilebilir PoE Switch

ModelDS-3E2326P

Hikvision DS-3E2326P, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the req
DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods
DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade
DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy
DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.
DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Özet 7 satır

PoE	PoE
PoE Port Sayısı	24 Port
PoE Güç Bütçesi	200-400 Watt
Aktarım Port Sayısı	2
Aktarım Türü	Combo
Port Hızı	100 Mbps
Yönetilebilirlik	Yönetilebilir

Genel 17 satır

Port	24 100M Base-T ports + 2 gigabit combo ports
Backplane Capacity	22.8Gbps
Forwarding	9.6Mpps
MAC Adres Tablosu	8K
STP	802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP); BPDU protection, root protection, and loopback protection
VLAN	4K VLAN; GVRP; QinQ; Private VLAN
QoS	Flow classification based on L2~4 protocols (S2108POE does not support the function.); CAR flow limit; 802.1P/DSCP priority re-labeling (S2108POE does not support the function.); SP, WRR, and “SP+WRR”; Congestion avoidance mechanisms like Tail-Drop and WRED; Flow monitoring and flow shaping
Multicast	IGMP v1/v2/v3; IGMP snooping; IGMP Fast Leave; Multicast group strategy and quantity limitation; Multicast flow copying over VLANs (S2108POE does not support the function.)
Network Management	Console, Telnet, SSH2.0, Web; SNMP v1/v2/v3; TFTP; RMON
Network Security	L2/L3/L4 ACL flow identification and filtration (S2108POE does not support the function.); DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc; Broadcast/multicast/unknown unicast storm-control; Port isolation; Port security, and “IP+MAC+port” binding (S2108POE does not support.)
Boyutlar	440×232×44
Güç Kaynağı	AC：100V-240V，50Hz±10%
Güç Tüketimi	400W (POE 380W)
Çalışma Sıcaklığı	℃-50℃
Çalışma Nemi	10%-90% non-condensing
Depolama Sıcaklığı	-20℃-70℃
Depolama Nemi	5%-95% non-condensing

PoE 1 satır

PoE Standardı	POE/POE+

Genel bakış

Hikvision DS-3E2326P kullanım alanları ve özellikleri.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Tüm özellikler

DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the req
DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods
DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade
DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy
DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.
DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.
DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services
DS-3E23XXP Series provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services
DS-3E23XXP Series supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”
Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attac
Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+
DS-3E23XXP Series supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions
DS-3E23XXP Series supports perfect ring detection mechanism which ensures the long-term stable running of network
DS-3E23XXP Series supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security
DS-3E23XXP Series many management modes such as the console port, Telnet, SSH
DS-3E23XXP Series supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient
DS-3E23XXP Series supports TFTP-patterned file upload/download management

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-3E2326P

Sık sorulanlar

DS-3E2326P hakkında kısa yanıtlar.

DS-3E2326P IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.

DS-3E2326P kaç portlu?

DS-3E2326P 24 porta sahiptir.

DS-3E2326P fiyatı ne kadar?

DS-3E2326P için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
