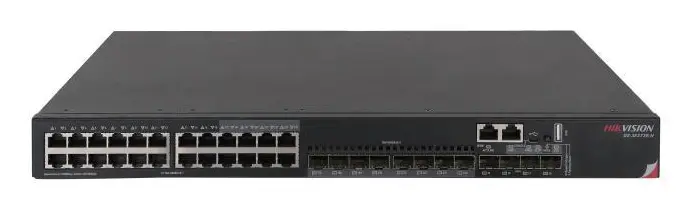

Hikvision DS-3E3728-H 28 Port Yönetilebilir Switch

ModelDS-3E3728-H

Hikvision DS-3E3728-H, 28 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 28 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

DS-3E3700-H Series provide 24 or 48 Giga and 4 fixed 10GE ports onboard with one expansion slot. The high port density satisfy the requirements for hybrid configuration of copper ports and fiber ports at the distribution
DS-3E3728-H Series comes with IPv4/IPv6 dual-stack platform which provides sophisticated IPv4/IPv6 solutions by supporting multiple tunnels, IPv4/IPv6 Layer 3 routing protocols, multicasting, and policy-based routing.
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliabil
The switch supports unified MAC address authentication, 802.1x authentication, and portal authentication; dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number
The switch supports Unicast Reverse Path Forwarding (uRPF), which protects a network against source spoofing attacks, preventing DoS and DDoS attacks.
Apart from device level redundancy, the DS-3E3700-H series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports virtualization redundancy backup as well as cro
The DS-3E3728-H switch series adopts hot swappable dual-power supply, which allows you to configure AC or DC power supplies as needed. The switch can detect faults in power supplies, and will if any such faults are found
The switch series supports hardware level encryption technology MACsec (802.1ae), which is an industry-standard security technology that provides secure communication for all traffic on Ethernet links. MACsec provides po

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 5 satır

Ağırlık	≤6.7 kg
Çalışma Sıcaklığı	0 °C to 45 °C (32 °F to 113 °F)
Çalışma Nemi	5% to 95% (no condensation)
Portlar	24×10/100/1000BASE-T ports (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ ports
Dimensions (mm)	440×360×43.6

Ağ Parametreleri 4 satır

Multicast	IGMP Snooping /MLD Snooping、Multicast VLAN
Anahtarlama Kapasitesi	Whole-Device Performance: 598 Gbps; Port Performance: 128 Gbps
Paket İletim Hızı	Whole-Device Performance: 444.91 Mpps; Port Performance: 95.23 Mpps
QoS	802.1p DSCP remarking; Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR; Committed access rate (CAR); Packet redirection; Port rate limit (receiving and transmitting)

Temel Özellik 7 satır

Link aggregation	1G/10G/40G port aggregation; Static aggregation/Dynamic aggregation; Cross-device aggregation
VxLAN	VXLAN Layer 2 switching; VXLAN routing switching; VXLAN gateway
Ring network protocol	STP/RSTP/MSTP
Güvenlik	Hierarchical user management and password protection; Guest VLAN; 802.1X authentication, centralized MAC authentication; RADIUS authentication; MAC address learning limit; Port isolation; IP Source guard; Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks; IP/Port/MAC binding
Management maintenance	Configuration through CLI, Telnet, and console port; Ping, Tracert; Loading and upgrading through XModem/FTP/TFTP; SNMPv1/v2/v3 and Web-based NMS; Remote monitoring (RMON ) alarm, event, and history recording; NTP
ACL	Packet filtering at L2～L4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses; Time range-based ACL; VLAN-based ACL; Bidirectional ACL
VLAN	Port-based VLAN; MAC-based VLAN; Protocol-based VLAN; QinQ and selective QinQ

Yazılım Fonksiyonları 2 satır

Port Yansıtma	Port mirroring; RSPAN; Traffic mirroring
Routing Feature	Static routing; RIPv1/v2 and RIPng; OSPFv1/v2/v3; BGP and BGP4+ for IPv6

Güç 2 satır

Power Input	AC: 100V～240V AC, 50/60Hz; DC: -48V～-60V DC
Güç Tüketimi	Single AC input: 87 W; Dual AC inputs: 91 W; Single DC input: 88 W; Dual DC inputs: 95 W

Genel bakış

Hikvision DS-3E3728-H kullanım alanları ve özellikleri.

Hikvision DS-3E3728-H, 28 port sunan bir Yönetilebilir Switch modelidir.

28 Port Core Switch

DS-3E3700-H Series provide 24 or 48 Giga and 4 fixed 10GE ports onboard with one expansion slot. The high port density satisfy the requirements for hybrid configuration of copper ports and fiber ports at the distribution layer in large sized networks or at the core layer in SMB sized networks
DS-3E3728-H Series comes with IPv4/IPv6 dual-stack platform which provides sophisticated IPv4/IPv6 solutions by supporting multiple tunnels, IPv4/IPv6 Layer 3 routing protocols, multicasting, and policy-based routing.
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupted.
The switch supports unified MAC address authentication, 802.1x authentication, and portal authentication; dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number; and dynamic application of user profiles or policies (such as VLAN, QoS, and ACL) on users.
The switch supports Unicast Reverse Path Forwarding (uRPF), which protects a network against source spoofing attacks, preventing DoS and DDoS attacks.
Apart from device level redundancy, the DS-3E3700-H series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports virtualization redundancy backup as well as cross-device link aggregation which substantially increases network reliability.
The DS-3E3728-H switch series adopts hot swappable dual-power supply, which allows you to configure AC or DC power supplies as needed. The switch can detect faults in power supplies, and will if any such faults are found, respond with an alarm. It can automatically adjust fan speed according to the temperature.
The switch series supports hardware level encryption technology MACsec (802.1ae), which is an industry-standard security technology that provides secure communication for all traffic on Ethernet links. MACsec provides point-to-point security on Ethernet links between directly connected nodes and is capable of identifying and preventing most security threats.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-3E3728-H Hızlı Başlangıç KılavuzuPDF · DS-3E3728-H Firmware (V1.0.5 build200901) - indirme sayfasıPDF · DS-3E3728-H

Sık sorulanlar

DS-3E3728-H hakkında kısa yanıtlar.

DS-3E3728-H kaç portlu?

DS-3E3728-H 28 porta sahiptir.

DS-3E3728-H fiyatı ne kadar?

DS-3E3728-H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
