Hikvision

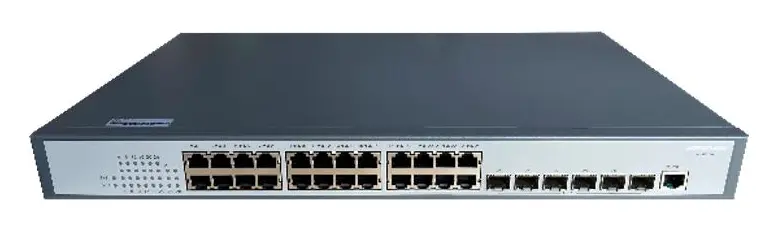

Hikvision DS-3E3730 30 Port 10G Yönetilebilir Switch

ModelDS-3E3730

Hikvision DS-3E3730, 30 portlu gigabit bir yönetilebilir switch'tir. 10 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 30 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

24 Gigabit electrical ports and 6 10 Gigabit SFP+ optical ports.
Support static routing, policy routing, rip, OSPF,BGP,MPLS and other three-layer routing protocols.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
Support DHCP Server、DHCP Relay、DHCP Snooping.
Support EAPs and ERPs Ethernet ring network protection protocol.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 8 satır

Gövde	Iron shell, fan cooling design
Net Ağırlık	3.4 kg (7.50 lb)
Boyutlar (G × Y × D)	440.00 mm × 44.00 mm × 280.00 mm (17.32'' × 1.73'' × 11.02'')
Çalışma Sıcaklığı	0 °C to 50 °C (32 °F to 122 °F)
Depolama Sıcaklığı	-20 °C to 70 °C (-4 °F to 158 °F)
Çalışma Nemi	10% to 90% (no condensation)
Bağıl Nem	5% to 95% (no condensation)
Boşta Güç Tüketimi	75 W

Ağ Parametreleri 5 satır

Portlar	24 × 1 Gigabit RJ45 port,6 × 10 Gigabit fiber optical port
İletim Modu	Store-and-forward switching
MAC Adres Tablosu	32 K
Anahtarlama Kapasitesi	Whole-Device Performance: 168 Gbps; Port Performance: 168 Gbps
Paket İletim Hızı	Whole-Device Performance: 124.99 Mpps; Port Performance: 124.99 Mpps

Yazılım Fonksiyonları 10 satır

Cihaz Bakımı	Support Console, Telnet, SSH; Support web, http, https; Support FTP, TFTP, Xmodem, SFTP; Support SNMP V1/V2c/V3; Support RMON; Support NTP
Reliability	Support STP/RSTP/MSTP; Support EAPS/MEAPS; Support MRD-Ring; Support ERPS; Support VRRP; Support BFD for OSPF; Support BFD for BGP
VLAN	Support IEEE 802.1Q (VLAN), 4096 VLAN IDs; Support GVRP; Support QinQ; Support VLAN based on MAC/protocol/IP subnet/policy/port; Support Private VLAN; Support 1:1 and N:1 VLAN mapping functions
Port Yansıtma	Support local and remote port mirroring; Support N:4 port mirroring; Support flow mirroring; Support MAC mirroring
Routing Feature	Support static routing, RIP, OSPF, BGP, MPLS; Support IPv4/IPv6 ECMP; Support VRRP, VRRP v3; Support IPv4/IPv6 policy-based routing; Support IPv4/IPv6 routing policy; Support IPv4/IPv6 dual stack; Support IPv6 static routing, RIPng, OSPFv3
QoS	Support Diff-Serv QoS; Support 802.1p/DSCP priority mapping; Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ; Support priority marking and remarking; Support traffic shaping; Support congestion avoidance, Tail-Drop and WRED; Support 802.1p, TOS, DSCP, and EXP priority mapping; Support port/flow-based rate limiting
Multicast	Support IGMP v1/v2/v3 Snooping; Support IGMP V1/V2/V3; Support MLD Snooping v1/v2; Support MLD v1/v2
ACL	Support IP-based ACL/MAC-based ACL; Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority; Support up to 256 ACLs
Link Aggregation	Support IEEE 802.3ad LACP/static link aggregation
Güvenlik	Support AAA, TACACS+ Radius authentication; Support 802.1X authentication, MAC authentication, MAC bypass authentication; Support to prevent DOS, ARP attack function, ICMP anti attack; Support binding of IP, MAC, port and VLAN; Support MAC authentication; Support MAC address filtering; Support broadcast/multicast/unknown-unicast storm control

Genel bakış

Hikvision DS-3E3730 kullanım alanları ve özellikleri.

Hikvision DS-3E3730, 30 port sunan bir Yönetilebilir Switch modelidir.

30 Port 10 G L3 Switch

24 Gigabit electrical ports and 6 10 Gigabit SFP+ optical ports.
Support static routing, policy routing, rip, OSPF,BGP,MPLS and other three-layer routing protocols.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
Support DHCP Server、DHCP Relay、DHCP Snooping.
Support EAPs and ERPs Ethernet ring network protection protocol.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
Easy network management by web browser, Console, Telnet, SSH.
SNMPv1/v2c/v3 for different levels of network management.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Tüm özellikler

24 Gigabit electrical ports and 6 10 Gigabit SFP+ optical ports.
Support static routing, policy routing, rip, OSPF,BGP,MPLS and other three-layer routing protocols.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
Support DHCP Server、DHCP Relay、DHCP Snooping.
Support EAPs and ERPs Ethernet ring network protection protocol.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
Easy network management by web browser, Console, Telnet, SSH.
SNMPv1/v2c/v3 for different levels of network management.

Sık sorulanlar

DS-3E3730 hakkında kısa yanıtlar.

DS-3E3730 kaç portlu?

DS-3E3730 30 porta sahiptir ve 10 adet SFP uplink portu bulunur.

DS-3E3730 fiyatı ne kadar?

DS-3E3730 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
