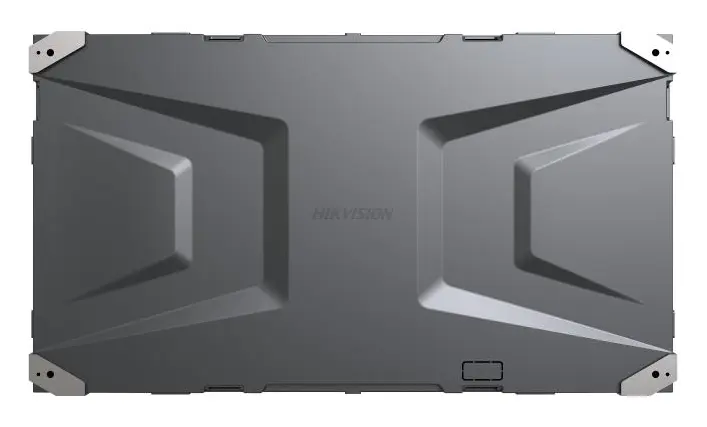

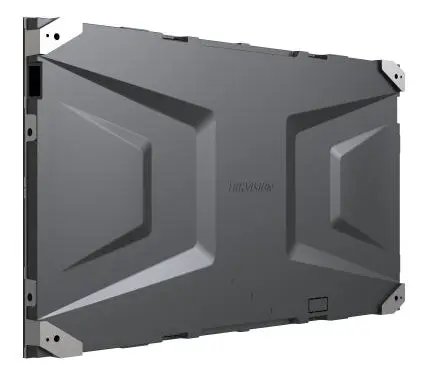

Hikvision DS-D4009BW-2FC/V1.0 LED Ekran
Model
DS-D4009BW-2FC/V1.0Hikvision DS-D4009BW-2FC/V1.0 LED ekran: The display and control system is wholly self-developed, which is stable, safety and controllable., Highly integrated and compatible cabinet with simple and lightweight design., Easy to disassemble lamp board, power supply, and receiving card on the front side.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- The display and control system is wholly self-developed, which is stable, safety and controllable.
- Highly integrated and compatible cabinet with simple and lightweight design.
- Easy to disassemble lamp board, power supply, and receiving card on the front side with high- precision aluminum die casting cabinet design.
- The solders are made of lead-free and non-toxic solder paste materials, which will not cause harm to human body and the environment.
- Automatically identify high-brightness and harsh picture details and adjust the brightness of the partial zones with dynamic engine algorithms adopted. The image is soft and comfortable to view and its quality is enhance
- Automatically remove moisture to protect lamp board from water damage when the device is kept in a humid environment or left unused for a long time.
- Support multiple ways to adjust screen parameters via remote control, tablet, and platforms.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Product Model 1 satır
| Product Model | DS-D4009BW-2FC |
|---|
Ürün Tipi 1 satır
| Ürün Tipi | Fine Pixel Pitch Indoor Full-color LED Display |
|---|
Kabin 11 satır
| Piksel Aralığı | 0.9375 mm (0.037") |
|---|---|
| Pixel Pitch Category | P0.9 |
| Pixel Configuration | Flip-chip COB |
| Piksel Yoğunluğu | 1137777 dots/㎡ |
| Modules Component | 2 × 2 |
| Boyutlar (G × Y × D) | 600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154") |
| Çözünürlük | 640 × 360 |
| Alan (Partition) | 0.2025 ㎡ |
| Ağırlık | 3.4 Kg |
| Kabin Malzemesi | Aluminium die casting |
| Maintenance Method | Front maintenance for all components |
Modül 2 satır
| Boyutlar | 300 × 168.75 mm |
|---|---|
| Modül Çözünürlüğü | 320 × 160 |
Ekran 6 satır
| White Balance Brightness | 600 cd/㎡ |
|---|---|
| Color Temperature | 3000-10000 K adjustable |
| Görüş Açısı | 160°(H)/160°(V) |
| Kontrast Oranı | 15000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97％ |
Processing Performance 5 satır
| Driving Method | Constant current driving |
|---|---|
| Scanning Amount | 54 |
| Frame Frequency | 60 Hz |
| Yenileme Hızı | 3840 Hz |
| Grey Level | 16 bit |
Güç 3 satır
| Maks. Tüketim | ≤ 360 W/㎡ （600nits） |
|---|---|
| Average Consumption | ≤ 120 W/㎡ |
| Giriş Gerilimi | 100~240 VAC ± 10％ |
Çalışma Ortamı 4 satır
| Çalışma Sıcaklığı | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉) |
|---|---|
| Çalışma Nemi | 10% to 90% RH (without condensation) |
| Depolama Sıcaklığı | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Depolama Nemi | 10% to 90% RH (without condensation) |
Genel 4 satır
| Package Dimensions (W × H × D) | 722 (W) mm × 438 (H) mm × 193 (D) mm (28.425 '' × 17.244 '' × 7.598 '') |
|---|---|
| Paket İçeriği | Regulatory Compliance and Safety Information × 1; Several connecting screws, light beads, driver IC, iron sheets |
| G.W. | 4.56 kg （1 package in 1 box） |
| Net Ağırlık | 3.4 kg |
Bracket 1 satır
| Modular Bracket | DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2 |
|---|
Genel bakış
Hikvision DS-D4009BW-2FC/V1.0 kullanım alanları ve özellikleri.
Hikvision DS-D4009BW-2FC/V1.0, Ultra Series ürün ailesinden bir LED Ekran modelidir.
DS-D4009BW-2FC/V1.0 600*337.5/mm (Stock)
- The display and control system is wholly self-developed, which is stable, safety and controllable.
- Highly integrated and compatible cabinet with simple and lightweight design.
- Easy to disassemble lamp board, power supply, and receiving card on the front side with high- precision aluminum die casting cabinet design.
- The solders are made of lead-free and non-toxic solder paste materials, which will not cause harm to human body and the environment.
- Automatically identify high-brightness and harsh picture details and adjust the brightness of the partial zones with dynamic engine algorithms adopted. The image is soft and comfortable to view and its quality is enhanced when unnecessary power consumption is reduced.
- Automatically remove moisture to protect lamp board from water damage when the device is kept in a humid environment or left unused for a long time.
- Support multiple ways to adjust screen parameters via remote control, tablet, and platforms.
Nerelerde kullanılır?
Güvenlik odası ve resepsiyonda kamera görüntülerinin 7/24 izlenmesi için kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-D4009BW-2FC/V1.0 hakkında kısa yanıtlar.
DS-D4009BW-2FC/V1.0 fiyatı ne kadar?
DS-D4009BW-2FC/V1.0 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
