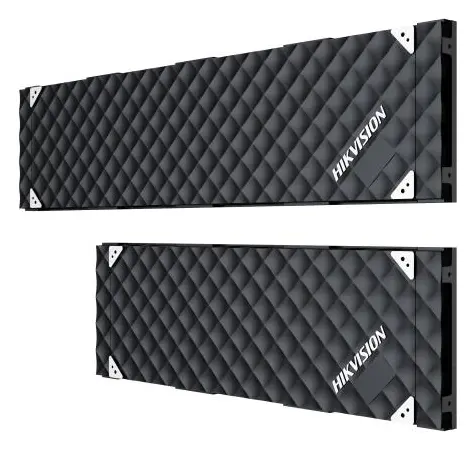

Hikvision DS-D4039CB-1F LED Ekran
Model
DS-D4039CB-1FHikvision DS-D4039CB-1F LED ekran: Multiple dimensions: Cabinets with various dimensions can be flexibly used to meet a variety of plane and three-dimensional stitching needs., Light and ultra-thin cabinets: Ultra-thin and die casting aluminum cabinets are light and beautiful, which can help to.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Multiple dimensions: Cabinets with various dimensions can be flexibly used to meet a variety of plane and three-dimensional stitching needs.
- Light and ultra-thin cabinets: Ultra-thin and die casting aluminum cabinets are light and beautiful, which can help to deliver quickly.
- Delicate frame: 45 degree frame structure with intensive design enhances the possibility of 90 degree right-angle of creative shapes installation. It can be used with more curved and creative stitching forms. There is no
- Magnetic module: Standard lamp boards with precise locating structure and strong magnetic adsorption without bottom shell can benefit efficient installation and convenient maintenance.
- Rotate to install: Support cabinet and module 90 degree rotating installation and horizontal and vertical stitching of cabinets. No chromatic aberration in viewing angle.
- Excellent display effect: Support high definition display and color reproduction, high contrast ratio and high refresh rate. Adopt Hikvision’s dynamic engine algorithm for automatic screen control. The image is soft and
- Intelligent control system: More intelligent with Hikvision’s control system. Signal backup, intelligent operation and maintenance facilitate convenient operation and control. Support cloud management and maintenance.
- High quality: Obtained TUV-CE/ROHS/CB compliance certification. The cabinet is safe, reliable, energy-saving and environmentally friendly.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Kabin 14 satır
| Pixel Configuration | SMD Triad LED |
|---|---|
| Pixel Pitch Category | P3.9 |
| Piksel Aralığı | 3.906 mm |
| Modules Component | 1 × 3 |
| Boyutlar (G × Y × D) | 750 mm × 250 mm × 50 mm (29.528" × 9.843" × 1.969") |
| Çözünürlük | 192 × 64 |
| Alan (Partition) | 0.1875 m² |
| Ağırlık | 4.59 kg (10.12 lb) |
| Piksel Yoğunluğu | 65536 dots/m² |
| Lamp Board Housing | With housing |
| Kabin Malzemesi | Aluminium die casting |
| Maintenance Method | Front maintenance for all components |
| Cabinet Flatness | 0.1 mm (0.00039") |
| Koruma Sınıfı | Front protection level IP60 |
Ekran 6 satır
| White Balance Brightness | 800 cd/m² (Peak 1000 cd/m²) |
|---|---|
| Color Temperature | 3000 K to 10000 K adjustable |
| Görüş Açısı | Horizontal 160°, vertical 160° |
| Kontrast Oranı | ≥ 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97％ |
Processing Performance 5 satır
| Driving Method | Constant current driving |
|---|---|
| Frame Frequency | 60 Hz |
| Yenileme Hızı | Up to 3840 Hz |
| Grey Level | Up to 16 bit |
| Display Color | 281 trillion |
Güç 3 satır
| Güç Kaynağı | 110~220 VAC ± 15% |
|---|---|
| Maks. Tüketim | ≤ 494 W/m² |
| Average Consumption | < 165 W/m² |
Çalışma Ortamı 4 satır
| Çalışma Sıcaklığı | -10 to 40 °C (14 °F to 104 °F) |
|---|---|
| Çalışma Nemi | 10%~80%RH |
| Depolama Nemi | 10%~80%RH |
| Depolama Sıcaklığı | -20 to 60 °C (-4 °F to 140°F) |
Genel 3 satır
| Brüt Ağırlık | 8.5 kg (34.488" × 5.354" × 12.992") (Carton, 1 cabinet in 1 box); 86 kg (36.023" × 40.984" × 27.755") (Carton, 10 cabinets in 1 box) |
|---|---|
| Package Dimension (W × H × D) | 876 mm × 136 mm × 330 mm (34.488" × 5.354" × 12.992") (Carton, 1 cabinet in 1 box); 915 mm × 1041 mm × 705 mm (36.023" × 40.984" × 27.755") (Carton, 10 cabinets in 1 box) |
| Lifespan | Lamp 100,000 hours |
Bracket 1 satır
| Modular Bracket | DS-DL117525W 1*1;DS-DL217525W 2*1 |
|---|
Genel bakış
Hikvision DS-D4039CB-1F kullanım alanları ve özellikleri.
Hikvision DS-D4039CB-1F, Flex Series ürün ailesinden bir LED Ekran modelidir.
DS-D4039CB-1F 750*250/mm
- Multiple dimensions: Cabinets with various dimensions can be flexibly used to meet a variety of plane and three-dimensional stitching needs.
- Light and ultra-thin cabinets: Ultra-thin and die casting aluminum cabinets are light and beautiful, which can help to deliver quickly.
- Delicate frame: 45 degree frame structure with intensive design enhances the possibility of 90 degree right-angle of creative shapes installation. It can be used with more curved and creative stitching forms. There is no need to customize.
- Magnetic module: Standard lamp boards with precise locating structure and strong magnetic adsorption without bottom shell can benefit efficient installation and convenient maintenance.
- Rotate to install: Support cabinet and module 90 degree rotating installation and horizontal and vertical stitching of cabinets. No chromatic aberration in viewing angle.
- Excellent display effect: Support high definition display and color reproduction, high contrast ratio and high refresh rate. Adopt Hikvision’s dynamic engine algorithm for automatic screen control. The image is soft and comfortable to view.
- Intelligent control system: More intelligent with Hikvision’s control system. Signal backup, intelligent operation and maintenance facilitate convenient operation and control. Support cloud management and maintenance.
- High quality: Obtained TUV-CE/ROHS/CB compliance certification. The cabinet is safe, reliable, energy-saving and environmentally friendly.
Nerelerde kullanılır?
Güvenlik odası ve resepsiyonda kamera görüntülerinin 7/24 izlenmesi için kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-D4039CB-1F hakkında kısa yanıtlar.
DS-D4039CB-1F fiyatı ne kadar?
DS-D4039CB-1F için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
