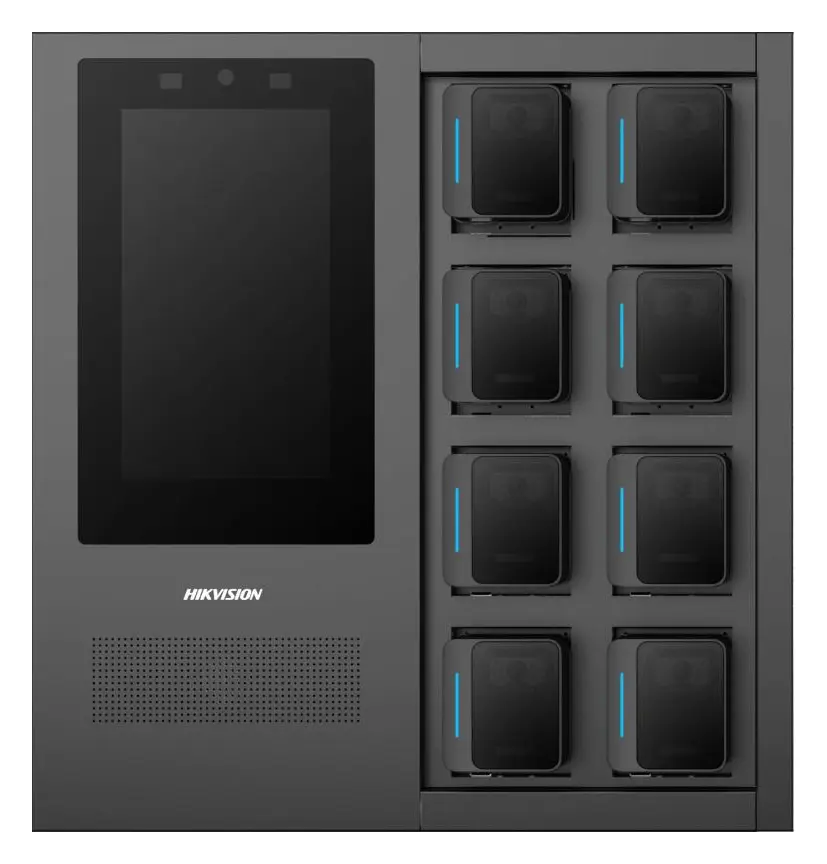

Hikvision DS-MDS003 Yaka Kamerası Dock İstasyonu

ModelDS-MDS003

Hikvision DS-MDS003, 6 mm lensli bir IP kameradır. Öne çıkan özellikleri: dual system design which is highly stable. supports wall mount, mobile mount, and desktop mount., 13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation., unlocks body camera bin by recognizing face to guarantee safe device storage., equipped with eight body camera bins in standard. four dock stations can be connected. each dock station is equipped with eight body camera bins. up to 32 body cameras can be connected simultaneously. supports auto charging.

Lens: 6 mm

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Dual system design which is highly stable. Supports wall mount, mobile mount, and desktop mount.
13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation.
Unlocks body camera bin by recognizing face to guarantee safe device storage.
Equipped with eight body camera bins in standard. Four dock stations can be connected. Each dock station is equipped with eight body camera bins. Up to 32 body cameras can be connected simultaneously. Supports auto charg
Two standard USB interfaces provided. One is used to connect to a mouse or keyboard for software operation, or connect to a USB flash disk to upgrade the dock station. The other one is reserved.
Supports six hard disks. Standard 2 TB storage capacity. Up to 8 TB for each disk. RAID0, RAID1, and RAID5 can be customized.
Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
Locks important data of body camera to avoid being deleted.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Ekran 3 satır

Ekran Çözünürlüğü	1920 × 1080
Ekran Tipi	LCD
Touchscreen	Destekleniyor

Depolama 2 satır

HDD	Up to 6 disk(s) (Max. 8 TB for each disk) and default 1*2 TB
RAM	2 GB

Ağ 1 satır

Protokol	HTTPS, FTP, NTP, SADP, ISAPI

Arayüz 5 satır

Base Paramaters	5 VDC, 1.5 A for each channel, rate ≥ 5 MB/s
Body Camera Access Number	Up to 32 body camera(s)
Buton	Power
General Interface	1 × RJ45,1 × RS-232,1 × USB 2.0,1 × USB 3.0
Gösterge	2 indicator(s) for charging/working/recording/exception

Genel 9 satır

İstemci	HikCentral Pro, HikCentral Master
Boyutlar	635 mm × 604.6 mm × 108.7 mm (25" × 23.8" × 4.3")
Montaj Yöntemi	Desk-mounted, Wall-mounted, Movable bracket
Çalışma Koşulları	-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
İşletim Sistemi	Linux, Android 5.1.1
Güç	100 to 240 VAC, max. 500 W
Depolama Koşulları	-25 °C to 50 °C (-13 °F to 122 °F). Humidity 95% or less (non-condensing)
Web Tarayıcı	Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Ağırlık	24.1 kg (53.13 lb.)

Genel bakış

Hikvision DS-MDS003 kullanım alanları ve özellikleri.

Hikvision DS-MDS003, Body Worn Camera Series ürün ailesinden bir Yaka Kamerası Dock İstasyonu modelidir.

8 Ports Dual System Touchscreen Dock Station

Dual system design which is highly stable. Supports wall mount, mobile mount, and desktop mount.
13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation.
Unlocks body camera bin by recognizing face to guarantee safe device storage.
Equipped with eight body camera bins in standard. Four dock stations can be connected. Each dock station is equipped with eight body camera bins. Up to 32 body cameras can be connected simultaneously. Supports auto charging.
Two standard USB interfaces provided. One is used to connect to a mouse or keyboard for software operation, or connect to a USB flash disk to upgrade the dock station. The other one is reserved.
Supports six hard disks. Standard 2 TB storage capacity. Up to 8 TB for each disk. RAID0, RAID1, and RAID5 can be customized.
Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
Locks important data of body camera to avoid being deleted.
Supports data protection in sudden power cutoff.
Log management to record all the operation logs.
Overwritten storage to overwrite the collected data according to the collection sequence when the storage is full.
ANR for data uploading to prevent data loss.
Supports file search in multiple modes, and video, audio, and picture playback.
Local upgrade.
Multi-user management. Multi-users can be associated with one dock station.
Files can be uploaded to CVR and cloud storage.

Kurulum ve uyumluluk

DS-MDS003 PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

Dual system design which is highly stable. Supports wall mount, mobile mount, and desktop mount.
13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation.
Unlocks body camera bin by recognizing face to guarantee safe device storage.
Equipped with eight body camera bins in standard. Four dock stations can be connected. Each dock station is equipped with eight body camera bins. Up to 32 body cameras can be connected simultaneously. Supports auto charg
Two standard USB interfaces provided. One is used to connect to a mouse or keyboard for software operation, or connect to a USB flash disk to upgrade the dock station. The other one is reserved.
Supports six hard disks. Standard 2 TB storage capacity. Up to 8 TB for each disk. RAID0, RAID1, and RAID5 can be customized.
Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
Locks important data of body camera to avoid being deleted.
Supports data protection in sudden power cutoff.
Log management to record all the operation logs.
Overwritten storage to overwrite the collected data according to the collection sequence when the storage is full.
ANR for data uploading to prevent data loss.
Supports file search in multiple modes, and video, audio, and picture playback.
Local upgrade.
Multi-user management. Multi-users can be associated with one dock station.
Files can be uploaded to CVR and cloud storage.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Hızlı Başlangıç KılavuzuPDF · DS-MDS003 Firmware (V1.4.2_251219) - indirme sayfasıPDF · DS-MDS003

Sık sorulanlar

DS-MDS003 hakkında kısa yanıtlar.

DS-MDS003 hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

DS-MDS003 cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

DS-MDS003 fiyatı ne kadar?

DS-MDS003 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
