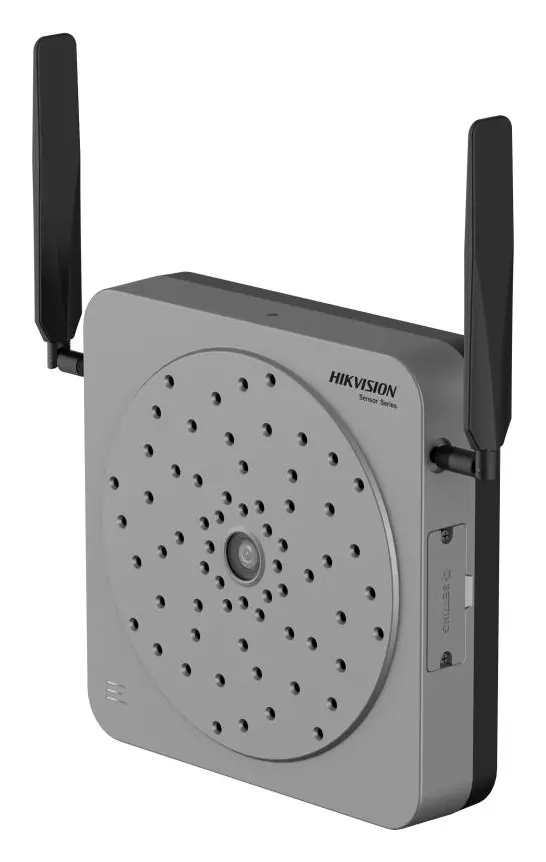

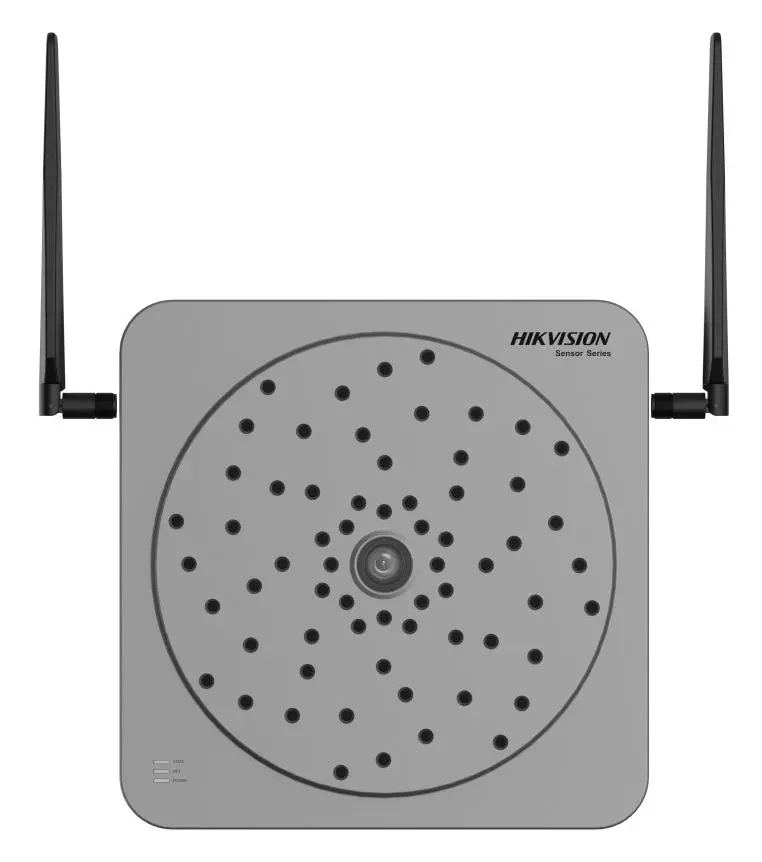

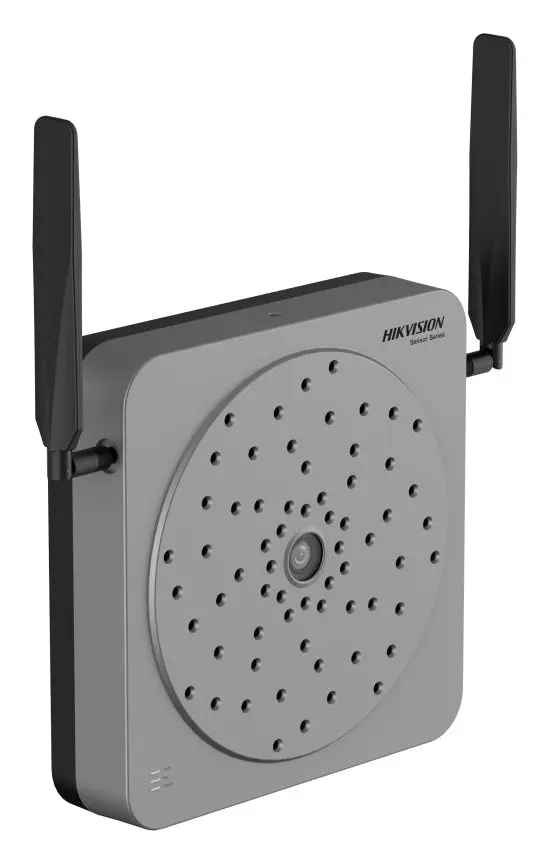

Hikvision DS-QAAI264G1-PG Algılama Sensörü

ModelDS-QAAI264G1-PG

Hikvision DS-QAAI264G1-PG algılama sensörü: High accuracy localization: Sound source localization and visual imaging, high accuracy positioning of gas leakage or discharge positions, and visual presentation through HD cameras. The positioning accuracy can reach within 1 °, Ultra wide frequency: It can l.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High accuracy localization: Sound source localization and visual imaging, high accuracy positioning of gas leakage or discharge positions, and visual presentation through HD cameras. The positioning accuracy can reach wi
Ultra wide frequency: It can locate sound sources in the frequency range from audible sound to ultrasound (5 KHz to 72 KHz). It can cover frequency ranges of partial discharge and gas leakage.
Built-in discharge type recognition algorithm: Adopting PRPD diagram technology, it can effectively distinguish between floating discharge, corona discharge, surface discharge, etc.
24/7 real-time monitoring: Supports IP67 waterproof level and can be used in various outdoor and indoor scenarios
Free selection of the localization frequency range
Support 4G

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 7 satır

Görüntü Sensörü	1/2.8 2 MP CMOS
Maks. Çözünürlük	1920 (H) × 1080 (V)
Min. Aydınlatma	0.001 Lux @(F1.0, AGC ON)
Enstantane Süresi	PAL: 1/25 s to 1/100,000 s, NTSC: 1/30 s to 1/100,000 s
Sinyal Sistemi	PAL/NTSC
Video Frame Rate	H.264(default)/H.265; 1920 × 1080 @25 fps
Görüntü Formatı	JPG

Lens 5 satır

Lens Tipi	4 mm
Odak Uzaklığı ve Görüş Açısı	Horizontal FOV 84°, vertical FOV 46°, diagonal FOV 97°
Lens Yuvası	M12
Diyafram	F1.0
Alan Derinliği	2 m to ∞

Mikrofon 10 satır

Tip	MEMS
Polar Pattern	360° omni-directional
Miktar	64
Frekans Tepkisi	Response Frequency: 2 KHz to 72 KHz, Localization Frequency: 5 KHz to 72 KHz
Hassasiyet	-38 dBV
S/N Oranı	68 dB
Sampling Rate	144 KHz
Dynamic Range	104 dB
Acoustic Overload Point (AOP)	130 dB
Toplam Harmonik Bozulma (THD)	0.1% @94 dBSPL, 1 KHz

Fonksiyon 7 satır

Sound Source Localization	Evet
Linkage Mode	Upload to memory card, notify surveillance center, trigger recording, trigger capture
Palette Mode	Acoustic palette supports 6 palette modes
Location Accuracy	≤1°
Alarm Tetikleme	Decibel threshold detection, frequency threshold detection, sound source localization detection, microphone exception, video tampering, partial discharge detection, gas leakage detection
Image Function	White Balance: auto, manual, locked; DNR
LED Gösterge	3 single color LED indicator lights: red, yellow, and green; Status indication: 1. Power indicator; Solid red: the device is normal starting.; Off: the device is abnormal.; 2. Working status indicator; Flashing green: the device is normal working.; Solid green/off: the device is abnormal.; 3. Network indicator; Solid yellow: no data transmission in the network connection.; Flashing yellow: network connection with data transmission.; Off: no network connection.

Ağ 6 satır

Ağ Protokolü	TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, UDP, SSL/TLS
Interface Protocol (API)	ISAPI、ISUP、SDK
Kullanıcı Yönetimi	Up to 32 users. 3 user levels: administrator, operator, and user
Network Security	Authorized username and password, HTTPS encryption, IP address filter
Ağ Depolama	Support MicroSD/MicroSDHC/MicroSDXC card(128 GB or 256 GB), and support encrypted memory card and memory card Status detection with Hikvision black memory card.
Tarayıcı	Operation System: Win7、Win8、Win10、Win11 (32bit/64bit)）; Browser: Chrome70+, Firefox 70+, Edge89+, Safari12+

İletişim 1 satır

Frequency&Standard	4G Frequency: LTE-TDD, LTE-FDD; 4G Standard: LTE FDD B1/3/5/8; LTE TDD B34/38/39/40/41

Arayüz 5 satır

Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Sıfırlama	Evet
SIM	Built-in SIM Card Slot
RS-485	1 RS-485
MicroSD	Built-in memory card slot, support microSD card, up to 2 TB

Genel 11 satır

Güç	12 VDC, 1.3 A; PoE(802.3at), 42.5 V to 57 V, 0.36 A to 0.27 A
Malzeme	Main body: Metal; Base: Metal
Dil	English
Boyutlar	261.5 mm × 201.6 mm × 48.5 mm
Paket Boyutları	457 mm × 255 mm × 130 mm
Ağırlık	1738 g
Paketli Ağırlık	3385 g
Renk	Front Cover: grey; Back Cover: black
Paket İçeriği	Device × 1; Bracket × 1; Regulatory Compliance and Safety Information × 1; Drill Template × 1; Antenna × 2
Çalışma Sıcaklığı	-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Montaj	Pendant mount, wall mount

Onaylar 2 satır

Koruma	IP67
EMC	Class B

Genel bakış

Hikvision DS-QAAI264G1-PG kullanım alanları ve özellikleri.

Hikvision DS-QAAI264G1-PG, Fixed series ürün ailesinden bir Algılama Sensörü modelidir.

64 Mic Acoustic Imager 4G

High accuracy localization: Sound source localization and visual imaging, high accuracy positioning of gas leakage or discharge positions, and visual presentation through HD cameras. The positioning accuracy can reach within 1 °
Ultra wide frequency: It can locate sound sources in the frequency range from audible sound to ultrasound (5 KHz to 72 KHz). It can cover frequency ranges of partial discharge and gas leakage.
Built-in discharge type recognition algorithm: Adopting PRPD diagram technology, it can effectively distinguish between floating discharge, corona discharge, surface discharge, etc.
24/7 real-time monitoring: Supports IP67 waterproof level and can be used in various outdoor and indoor scenarios
Free selection of the localization frequency range
Support 4G

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-QAAI264G1-PG Hızlı Başlangıç KılavuzuPDF · DS-QAAI264G1-PG Kullanım KılavuzuPDF · DS-QAAI264G1-PG Firmware (V1.2.0_260518) - indirme sayfasıPDF · DS-QAAI264G1-PG

Sık sorulanlar

DS-QAAI264G1-PG hakkında kısa yanıtlar.

DS-QAAI264G1-PG fiyatı ne kadar?

DS-QAAI264G1-PG için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
