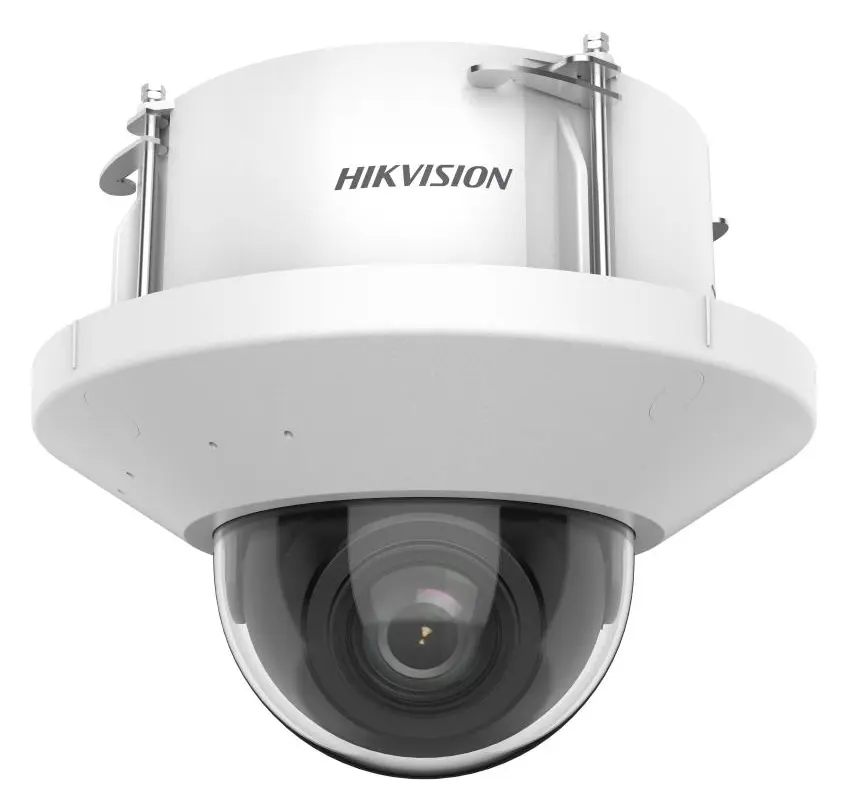

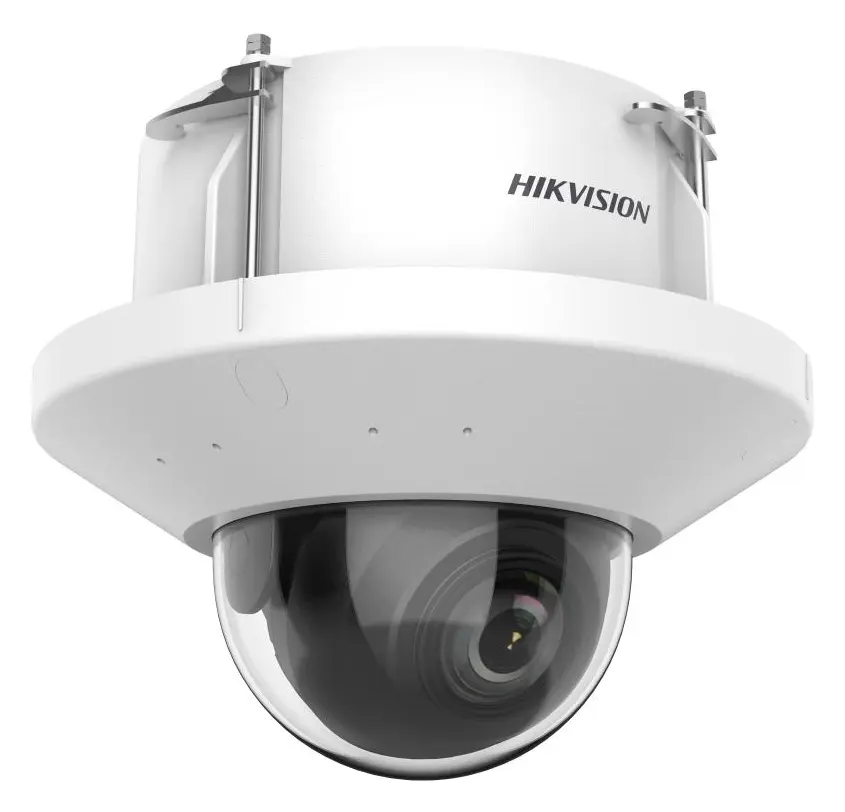

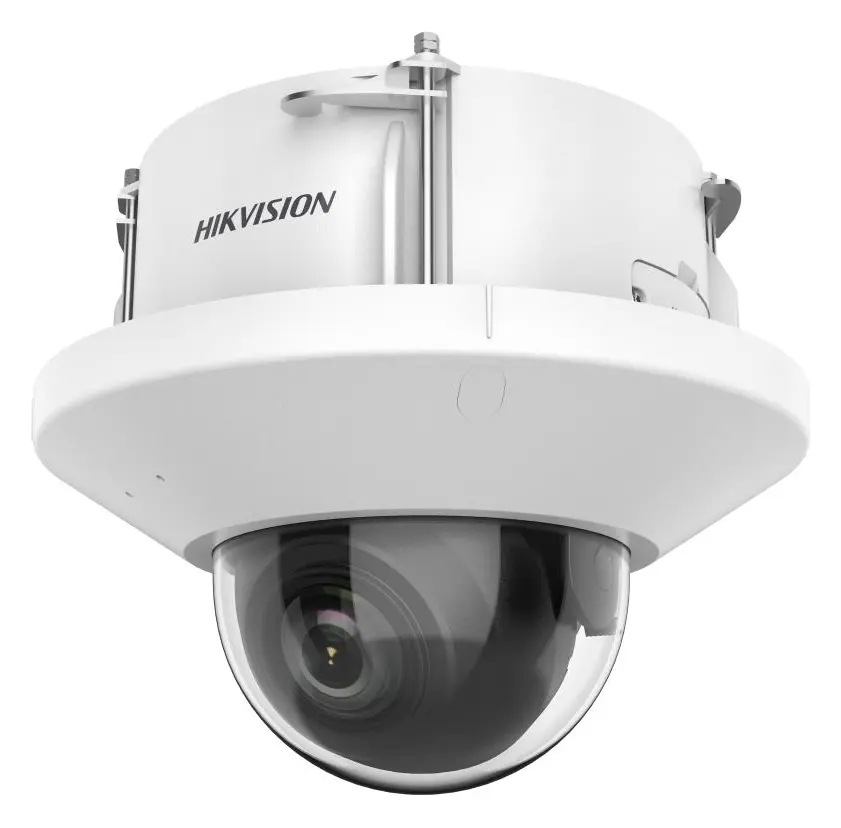

Hikvision IDS-2CD7547G2-ZHS/RC 4 MP DeepinView DarkFighter IP Dome Kamera — görsel 3

Hikvision IDS-2CD7547G2-ZHS/RC 4 MP DeepinView DarkFighter IP Dome Kamera — görsel 4

1 / 4

IP Dome Kamera DeepinView

Hikvision IDS-2CD7547G2-ZHS/RC 4 MP DeepinView DarkFighter IP Dome Kamera

ModelIDS-2CD7547G2-ZHS/RC

Hikvision IDS-2CD7547G2-ZHS/RC, 4 MP çözünürlüklü, 2.8–12 mm motorize lensli bir IP dome kameradır. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur. Dahili mikrofonuyla sesli kayıt yapabilir.

Sinyal tipi: IP
Çözünürlük: 4 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	2688 × 1520
Min. Aydınlatma	Color: 0.0003 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON)
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter; Blue glass module (less ghost phenomenon)
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°; 8 to 32 mm, horizontal FOV 37.8° to16.0°, vertical FOV 21.7° to 9.2°, diagonal FOV 43.2° to 18.2°; 10 to 50 mm, horizontal FOV 41.5° to 9.3°, vertical FOV 23.2° to 5.3°, diagonal FOV 49.9° to 10.7°
Odak	Auto, Semi-auto, Manual
İris Tipi	P-iris
Diyafram	2.8 to 12 mm, F1.0 to F1.2; 8 to 32 mm, F1.0 to F1.2; 10 to 50 mm, F1.4 to F1.6

Piksel Yoğunluğu (DORI) 1 satır

OODPCVS	Wide: 2.8 to 12 mm: Overview: 79.3 m, Outline: 39.7 m, Discern: 19.8 m, Perceive: 12.7 m, Characterize: 6.3 m, Validate: 3.2 m, Scrutinize: 1.1 m; 8 to 32 mm: Overview: 198.3 m, Outline: 99.1 m, Discern: 49.6 m, Perceive: 31.7 m, Characterize: 15.9 m, Validate: 7.9 m, Scrutinize: 2.6 m; 10 to 50 mm: Overview: 187.9 m, Outline: 94.0 m, Discern: 47.0 m, Perceive: 30.1 m, Characterize: 15.0 m, Validate: 7.5 m, Scrutinize: 2.5 m; Tele: 2.8 to 12 mm: Overview: 175.9 m, Outline: 87.9 m, Discern: 44.0

OODPCVS

Wide: 2.8 to 12 mm: Overview: 79.3 m, Outline: 39.7 m, Discern: 19.8 m, Perceive: 12.7 m, Characterize: 6.3 m, Validate: 3.2 m, Scrutinize: 1.1 m; 8 to 32 mm: Overview: 198.3 m, Outline: 99.1 m, Discern: 49.6 m, Perceive: 31.7 m, Characterize: 15.9 m, Validate: 7.9 m, Scrutinize: 2.6 m; 10 to 50 mm: Overview: 187.9 m, Outline: 94.0 m, Discern: 47.0 m, Perceive: 30.1 m, Characterize: 15.0 m, Validate: 7.5 m, Scrutinize: 2.5 m; Tele: 2.8 to 12 mm: Overview: 175.9 m, Outline: 87.9 m, Discern: 44.0

HEOP (Açık Platform) 5 satır

Açık Kaynaklar	Memory: 150 MB; Smart RAM: 2200 MB; eMMC: 1288 MB
İşlem Gücü	2.5 TOPS
Açık Platform Yeteneği	HEOP 2.0 OpendevSDK
Derin Öğrenme Yapısı	Caffe, PyTorch, TensorFlow
Programlama Dili	C, C++

AI Açık Platform 1 satır

Model Özellikleri	1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Model Özellikleri

1. Up to 3 models. Model type: detection model, classification model, mixed model (detection model and classification model).; 2. Supports video analysis (detection, classification, mixed, OCR, segmentation, comparison) and scheduled capture analysis (classification).; (1) Detection: Region target exception status detection, line crossing target detection, line crossing target counting, region target number counting, full analysis rule, combined rule, area overlap ratio counting, area overlap ra

Video 14 satır

Ana Akış	Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080); 60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080); *High frame rate is supported under monitoring mode only.; smart mode: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Üçüncü Akış	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Beşinci Akış	50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; Fifth stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 8 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Hedef Kırpma	Evet
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	4 fixed regions for each stream
Guanlan AI Kodlama	Evet

Ses 5 satır

Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ses Tipi	Mono sound
Ortam Gürültüsü Filtreleme	Evet

Ağ 9 satır

Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, MQTT/MQTTS, RTMP, Support X.509 authentication
Eşzamanlı Canlı İzleme	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP, OTAP
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Akıcı Yayın (Smooth Streaming)	Evet
Ağ Depolama	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Cloud Storage; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
İstemci	iVMS-4200, Hik-Connect, Hik-Central
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 9 satır

Görüntü Parametresi Geçişi	Evet
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule, Alarm Trigger
Geniş Dinamik Aralık (WDR)	150 dB
Mahremiyet Maskesi	8 programmable polygon privacy masks
S/N Oranı	≥ 52 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction, Defog
Görüntü Sabitleme	EIS
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Arayüz 9 satır

Video Çıkışı	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Arayüzü	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Ses	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Dahili Mikrofon	Yes, 2 built-in microphones
Alarm	1 input, 1 output (max. 24 VDC, 1 A)
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 100 mA

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), glass break detection, scream detection, gunshot and explosion sound detection, crying sound detection
Akıllı Olaylar	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Bağlantı (Linkage)	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, HTTP custom alarm

Derin Öğrenme Fonksiyonları 14 satır

Çoklu Hedef Tipi Algılama	Supports dynamic mosaic mask; Supports ShotN technology; Supports simultaneous detection and capture of human body, face, and vehicle; Gets 7 face features; Gets 13 human body features; Gets 2 vehicle features; Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle; Supports license plate recognition
Yüz Yakalama	Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second; Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°; Uploads face with background and closed-up face pictures; Supports best shot and quick shot for capture mode; Supports dynamic mosaic mask; Gets 7 face features
Yüz Karşılaştırma	Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total; Supports face library encryption
Kişi Sayma	Supports Multi-Dimension People Counting; Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.); Supports real-time uploading and uploading by statistic cycle; Supports generating daily, weekly, monthly or annually reports; Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within
Aktivite Analizi	Support the detection of person smoking or making phone calls and trigger alarm. The detection attributes include head and shoulders, hands, faces, making phone calls, and smoking.
Kuyruk Yönetimi	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: regional people queuing-up, waiting time detection; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis; Supports real-time data uploading and scheduled data uploading; Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less th
Isı Haritası	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.; Two report types are available, space heat map and time heat map line chart.
Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection
Bölgesel Kişi Sayma	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay; Supports searching real-time number of people; People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading; Number of people exception de
Görev Başında/Dışında Algılama	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: absence detection, on/off duty detection; Supports parameter settings: person on duty, absence duration
AcuSeek	Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
KKD (PPE) Algılama	Detects hard hat and reflective clothing, triggering alarm when not worn.; Detects people not wearing hard hat. Supported hat colors: red, orange, yellow, blue, white, and others.
Genel	Supports scheduled-switch of smart applications.; Supports enabling 2 smart applications at the same time.

Genel 13 satır

Güç	12 VDC ± 20%, 1.05A, max. 12.6 W, three-core terminal block; 24 VAC ± 20%, 0.88A, max. 13.1 W, three-core terminal block; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.26 A to 0.33 A, max. 13.9W
Malzeme	Aluminum alloy body
Boyutlar	Ø210 mm × 169 mm (Ø8.3" × 6.7")
Paket Boyutları	250 mm × 250 mm × 260 mm (9.9" × 9.9" × 10.2")
Ağırlık	Approx. 1910 g (4.2 lb.)
Paketli Ağırlık	Approx. 2450 g (5.4 lb.)
Başlangıç ve Çalışma Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Depolama Koşulları	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
Isıtıcı	Evet
Cihaz Yönetimi	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces. Supports adding network microphone and speaker.
Entegre Konnektör Paneli	Hayır

Onaylar 6 satır

EMC	CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014; RCM: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014; IC: ICES-003 Issue7:October 2020
Güvenlik	CB: IEC 62368-1: 2014; CE-LVD: EN 62368-1: 2014 + A11: 2017; LOA: IEC/EN 60950-1
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Koruma	IP67: IEC 60529-2013, IK10: IEC 62262:2002
Diğer	PVC FREE
Siber Güvenlik	IEC62443-4-1 ML2; EUCC; CC: EAL3

Genel bakış

Hikvision IDS-2CD7547G2-ZHS/RC kullanım alanları ve özellikleri.

Hikvision IDS-2CD7547G2-ZHS/RC, 4 MP çözünürlük, 2.8–12 mm varifocal lens ve IP67/IK10 koruma sunan bir IP Dome Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

4MP DarkfighterS DeepinView PTRZ Dome Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics
Unique PTRZ capability for efficient installation and maintenance
Specially designed for recessed inceiling mount

Nerelerde kullanılır?

Tavan montajlı yapısıyla iç mekânlarda göze batmadan geniş alan izler; kameranın hangi yöne baktığı dışarıdan kolay anlaşılmaz.

Kurulum ve uyumluluk

IDS-2CD7547G2-ZHS/RC PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Tüm özellikler

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 150 dB true WDR technology
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)
High frame rate, up to 4MP@60fps and 2MP@120fps
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics
Unique PTRZ capability for efficient installation and maintenance
Specially designed for recessed inceiling mount

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD7547G2-ZHS/RC Hızlı Başlangıç KılavuzuPDF · IDS-2CD7547G2-ZHS/RC Kullanım KılavuzuPDF · IDS-2CD7547G2-ZHS/RC Firmware (V5.9.24_260901) - indirme sayfasıPDF · IDS-2CD7547G2-ZHS/RC

Sık sorulanlar

IDS-2CD7547G2-ZHS/RC hakkında kısa yanıtlar.

IDS-2CD7547G2-ZHS/RC dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD7547G2-ZHS/RC hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD7547G2-ZHS/RC kaç megapiksel?

IDS-2CD7547G2-ZHS/RC 4 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.

IDS-2CD7547G2-ZHS/RC cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

IDS-2CD7547G2-ZHS/RC fiyatı ne kadar?

IDS-2CD7547G2-ZHS/RC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
