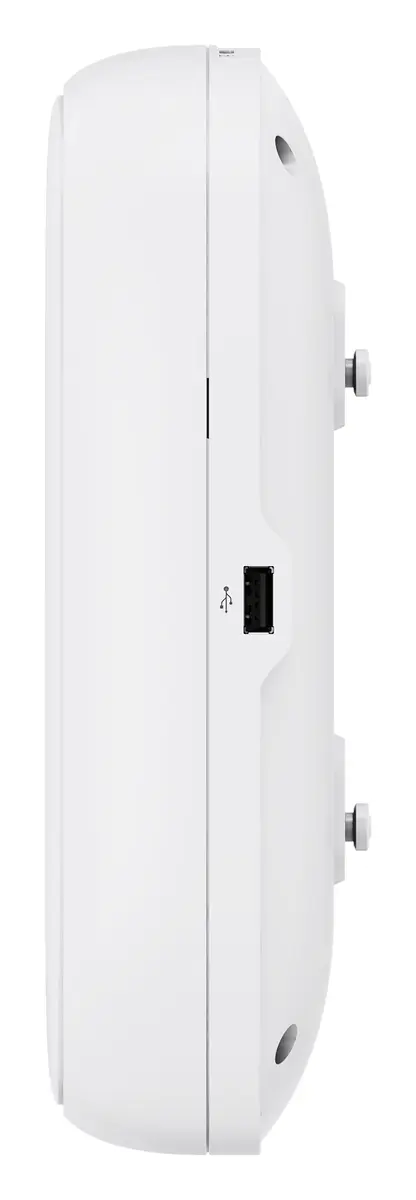

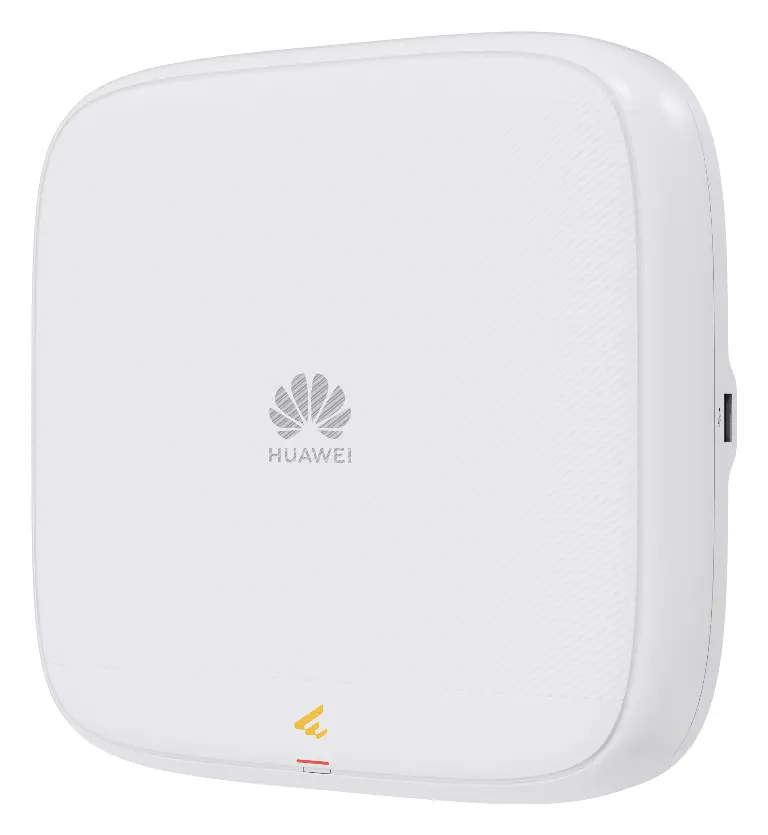

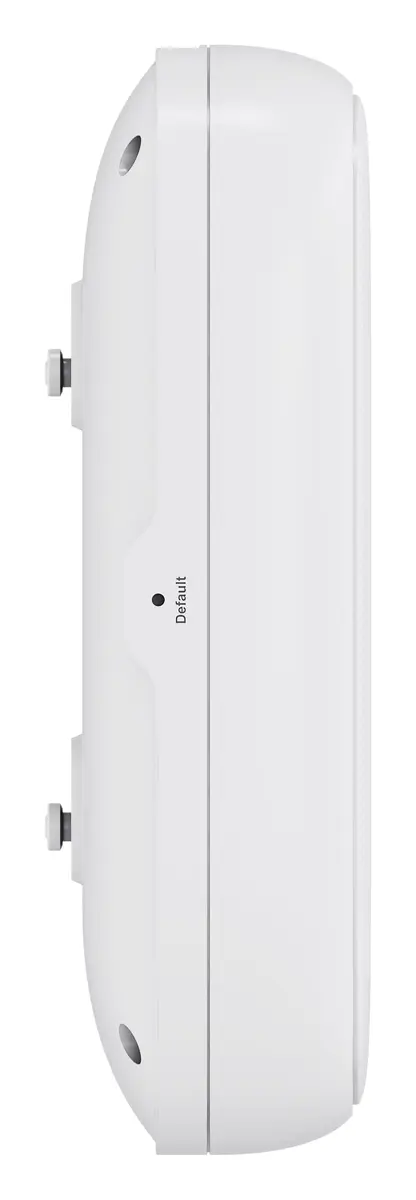

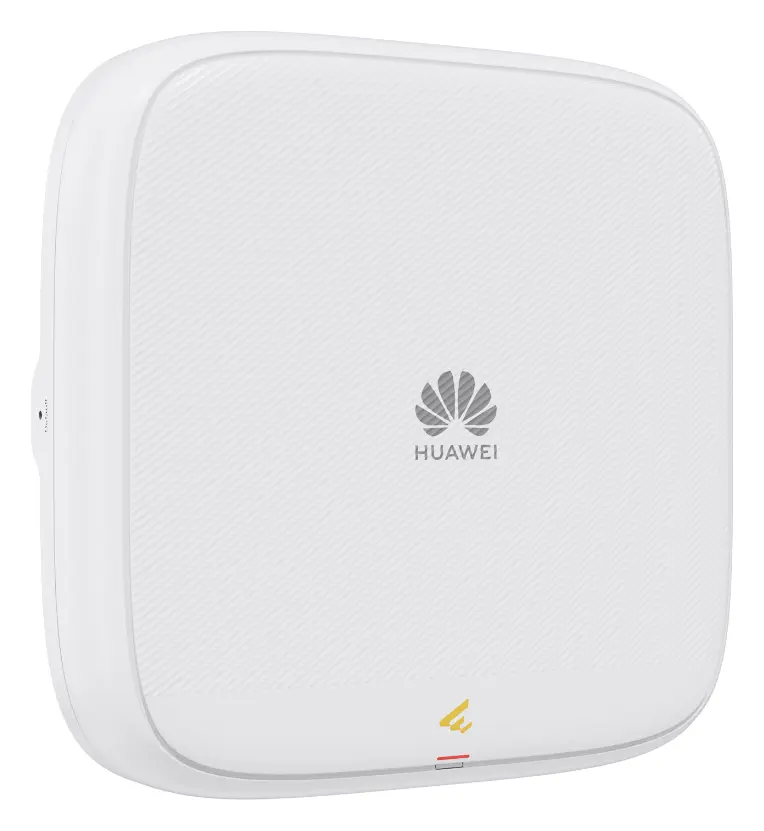

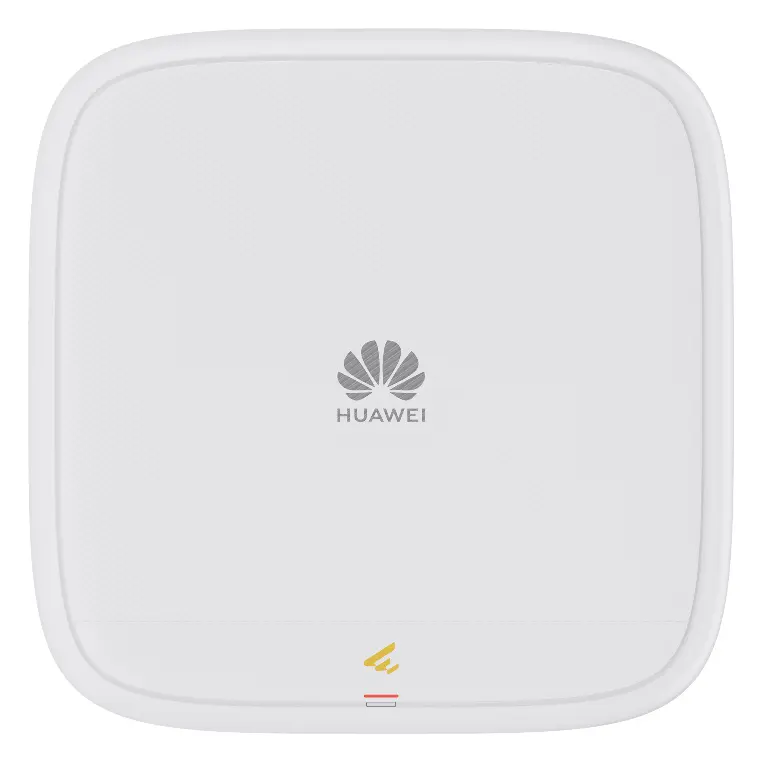

Huawei AP673H Wi-Fi 7 Access Point

ModelAP673H

Huawei AP673H access point.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 43 satır

Wi-Fi Standardı	Wi-Fi 7
Optimal Signal Distance (m)	30m
Recommended Number of Access Users	300
Cihaz Hızı	13.66Gbps
Montaj Tipi	Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)
Boyutlar (Ambalajsız, Y x G x D)	59.5 mm x 220 mm x 220 mm (2.34 in. x 8.66 in. x 8.66 in.)
Boyutlar (Ambalajlı, Y x G x D)	110 mm x 286 mm x 274 mm (4.33 in. x 11.26 in. x 10.79 in.)
Ağırlık (Ambalajsız)	1.54 kg (3.40 lb)
Ağırlık (Ambalajlı)	2.18 kg (4.81 lb)
CPU	4-core, 1.0 GHz
Bellek	DDR4 1 GB
Güç Besleme Modu	PoE,DC power adapter
Depolama	NAND Flash 512 MB
Rated input voltage [V]	DC: 48 V; PoE: 802.3bt/at
Giriş Gerilimi Aralığı (V)	DC: 43.2 V to 57.6 V; PoE: 802.3bt/at
Service port surge protection	PoE port:; Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B; Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B
Fan Tipi	None

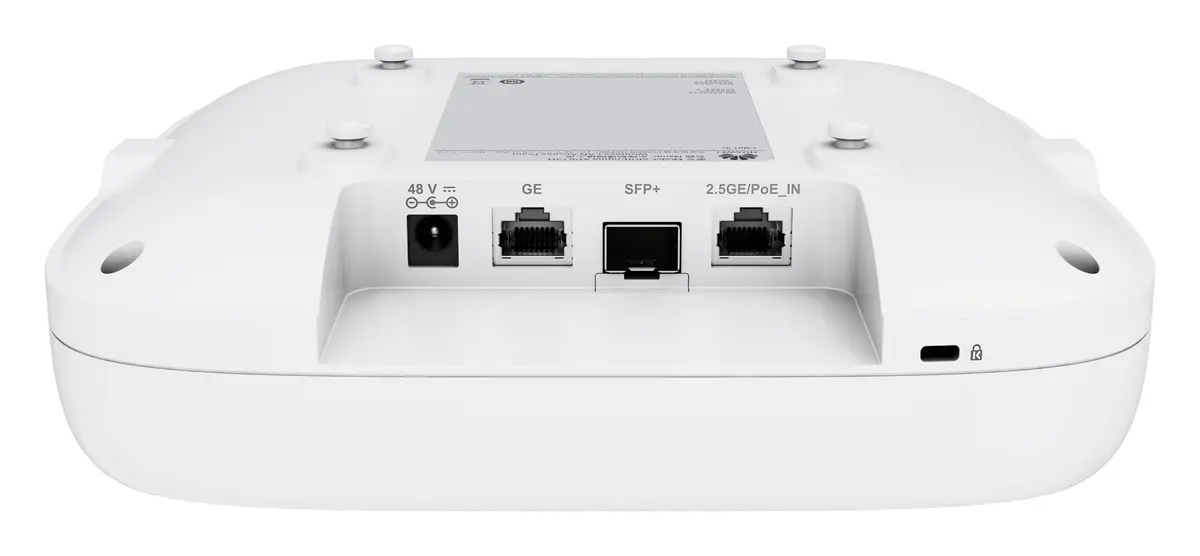

Maximum number of physical ports on the entire device	10GE optical (SFP+) x 1, GE/2.5GE/10GE auto-sensing; 2.5GE (RJ45) x 1, 100M/1000M/2.5GE auto-sensing; GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Çalışma Nemi (Bağıl)	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Floating ground
USB	Supplies power of 2.5 W or 5 W.
Radio number	3
MIMO spatial streams	Triple-radio mode:; Radio 0 (2.4 GHz): 2x2; Radio 1 (5 GHz-H): 2x2 (high frequency band); Radio 2 (5 GHz-L): 4x4 (low frequency band); Triple-radio mode (default):; Radio 0 (2.4 GHz): 2x2; Radio 1 (5 GHz): 2x2; Radio 2 (6 GHz): 4x4; Dual-radio mode:; Radio 0 (2.4 GHz): 2x2; Radio 1 (5 GHz): 4x4
Wi-Fi Standardı	2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be; 6 GHz: 802.11a/ax/be
Radio interface	Built-in dynamic-zoom smart antennas, which can work in two modes on a per-packet basis through algorithm control: 170-degree omnidirectional coverage mode and 60-degree anti-interference mode
Anten Kazancı	2.4 GHz:; 4 dBi/chain (peak gain); 1 dBi (combined gain); 5 GHz:; 5 dBi/chain (peak gain); 2 dBi (combined gain); 6 GHz:; 5 dBi/chain (peak gain); 2 dBi (combined gain)
Maks. Yayın Gücü	Triple-radio mode:; 2.4 GHz:; 20 dBm/chain; 5 GHz:; 19 dBm/chain; 6 GHz:; 19 dBm/chain; Dual-radio mode:; 2.4 GHz:; 20 dBm/chain; 5 GHz:; 20 dBm/chain
Advanced Cellular Coexistence (ACC)	Supported
MTBF [year]	114.3
MTTR [hour]	2
Maks. Güç Tüketimi (W)	24.8 W (excluding USB)
Maximum heat dissipation [BTU/hour]	80.39
802.3bt power supply description	At the power supply level of 802.3bt Class 8, no function is restricted.; At the power supply level of 802.3bt Class 6, no function is restricted.
802.3at power supply description	When the power supply mode is negotiated to 802.3at and the USB port is idle, the device functions are not restricted.; When the USB port uses 2.5 W power supply, the GE electrical port is unavailable and only one of the 2.5GE electrical port and 10GE optical port is available at the same time. In addition, the radio mode can only be set to 2.4 GHz (2x2) + 5 GHz (2x2) + 6 GHz (2x2), 2.4 GHz (2x2) + 5 GHz-H (2x2) + 5 GHz-L (2x2), or 2.4 GHz (2x2) + 5 GHz (4x4). In triple-radio mode, the maximum b
DC power supply description	No function is limited.
Çalışma Frekans Bandı	2.4GHz,5GHz,6GHz
Frequency stability [ppm]	+/-20
Maximum channel bandwidth [MHz]	Triple-radio 6G mode:; Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 80 MHz; Radio 2 (6 GHz): 320 MHz; Triple-radio dual-5G mode:; Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz-H): 80 MHz; Radio 2 (5 GHz-L): 160 MHz; Double-radio mode:; Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 160 MHz
Storage environment	ETSI EN 300 019-1-1 Class 1.2; Note:; The product has a valid storage period of one year.; The valid storage period refers to the period during which the product maintains the required quality when stored with packing materials in an environment that meets the preceding requirements.

Basic Information 1 satır

First supported version	V600R025C01

Genel bakış

Huawei AP673H kullanım alanları ve özellikleri.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Sık sorulanlar

AP673H hakkında kısa yanıtlar.

AP673H fiyatı ne kadar?

AP673H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
