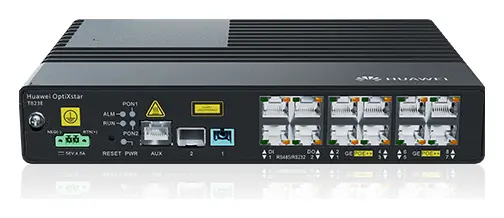

Huawei T823E-G ONU

ModelT823E-G

Huawei T823E-G ONU: Industrial grade design, High Reliability，High Security, Easy Deployment, Easy O&M, Centralized management on eSight • Automatic service configuration.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Industrial grade design
High Reliability，High Security
Easy Deployment, Easy O&M
Centralized management on eSight • Automatic service configuration

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 26 satır

Boyutlar (Y x G x D)	43.6 x 250 x 180 mm (without mounting ears); 43.6 x 482.6 x 180 mm (with mounting ears)
Weight (Without Power Adapter)	Approximately 2.5 kg
Çalışma Sıcaklığı	–40°C to +70°C
Çalışma Nemi	5–95% RH (non-condensing)
System Power Supply	DC 54 V to 57 V
Rated Voltage and Current	56 V DC, 4.5 A
Maximum PoE Power	220 W (total power consumption)
Consumption	60 W (each GE port power consumption)
Aşırı Gerilim Koruması	Ethernet port: common mode 6 kV; differential mode 1.5 kV; DC power port: common mode 4 kV; differential mode 2 kV
Maks. Güç Tüketimi	Approximately 240 W
Maks. Güç Tüketimi	Approximately 240 W
NNI (Uplink)	1 x GPON SFP+ and 1 x GPON BOB
UNI (Kullanıcı Portları)	8 x GE (PoE++) + 2 x RS485/RS232 + 1 x DI + 1 x DO
Montaj Şekli	Cabinet or network box
Protection Level	IP40
Authentication	802.1X
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Standard compliance: ITU-T G.984, Class B+; • Maximum transmission distance: 20 km; • Transmission rate: RX: 2.488 Gbit/s; TX: 1.244 Gbit/s; • Optical receiver sensitivity: –27 dBm; • Overload optical power: –8 dBm
Ethernet Electrical Port	• Port type: RJ-45; • PoE++, complies with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; • Auto port speeds (10/100/1000 Mbit/s)
RS485 Port	• Port type: RJ-45; • Complies with TIA/EIA-485, ITU-T V.24, ITU-T V.28
RS232 Port	• Port type: RJ-45; • Complies with TIA/EIA-232, ITU-T V.24, ITU-T V.28
DI/DO Port	• Port type: RJ-45; • The DI is connected to devices such as the door status sensor, infrared sensor or other devices; • The DO is connected to the external alarm device or other devices

Genel bakış

Huawei T823E-G kullanım alanları ve özellikleri.

Industrial grade design

Operating temperature range from -40 ˚C to +70 ˚C ; • No fan, Natural heat dissipation

High Reliability，High Security

Dual GPON upstream transmission; • Type B/Type C service protection; • 802.1x authentication、 Firewall、DoS/ARP anti-attacks and other security features.

Easy Deployment, Easy O&M

Centralized management on eSight • Automatic service configuration

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Sık sorulanlar

T823E-G hakkında kısa yanıtlar.

T823E-G fiyatı ne kadar?

T823E-G için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
