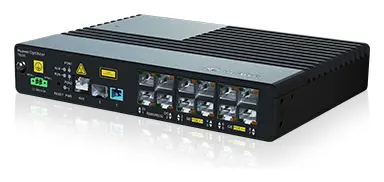

Huawei T823E-T ONU

ModelT823E-T

Huawei T823E-T ONU: Industrial grade design, High Reliability，High Security, Precise Timing, Edge Computing.

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Industrial grade design
High Reliability，High Security
Precise Timing
Edge Computing

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 26 satır

Boyutlar (Y x G x D)	43.6 x 250 x 180 mm (without mounting ears); 43.6 x 482.6 x 180 mm (with mounting ears)
Weight (Without Power Adapter)	Approximately 2.5 kg
Çalışma Sıcaklığı	–40°C to +70°C
Çalışma Nemi	5–95% RH (non-condensing)
System Power Supply	DC 54 V to 57 V
Rated Voltage and Current	56 V DC, 4.5 A
Maximum PoE Power	220 W (total power consumption)
Consumption	60 W (each GE port power consumption)
Aşırı Gerilim Koruması	Ethernet port: common mode 6 kV; differential mode 1.5 kV; DC power port: common mode 4 kV; differential mode 2 kV
Maks. Güç Tüketimi	Approximately 240 W
Maks. Güç Tüketimi	Approximately 240 W
NNI (Uplink)	1 x XGS-PON SFP+ and 1 x XGS-PON BOB
UNI (Kullanıcı Portları)	8 x GE (PoE++) + 2 x RS485/RS232 + 1 x DI + 1 x DO
Montaj Şekli	Cabinet or network box
Protection Level	IP40
Authentication	802.1X
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
PON Portu	• Port type: SC/UPC; • Complying with ITU-T G.9807.1, Class N1/N2; • Transmission rate: RX 9.953 Gbit/s, TX 9.953 Gbit/s; • Maximum transmission distance: 20 km; • Optical receiver sensitivity: –28 dBm; • Overload optical power: –8 dBm
Ethernet Electrical Port	• Port type: RJ-45; • PoE++, complies with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; • Auto port speeds (10/100/1000 Mbit/s)
RS485 Port	• Port type: RJ-45; • Complies with TIA/EIA-485, ITU-T V.24, ITU-T V.28
RS232 Port	• Port type: RJ-45; • Complies with TIA/EIA-232, ITU-T V.24, ITU-T V.28
DI/DO Port	• Port type: RJ-45; • The DI is connected to devices such as the door status; • sensor, infrared sensor or other devices; • The DO is connected to the external alarm device or other devices

Genel bakış

Huawei T823E-T kullanım alanları ve özellikleri.

Huawei OptiXstar T823E-T is an industrial-grade IoT edge computing gateway for the Huawei Industrial Optical Network solution.

It provides two XGS-PON upstream ports on the network side and eight GE Ethernet ports that support PoE++ on the user side.

Featuring high forwarding performance, edge computing, 1588v2 time synchronization，and IoT access capabilities, the product provides an ideal integrated solution for networking, IoT, edge computing, time synchronization for the electric power industry.

Industrial grade design

Operating temperature range from -40 ˚C to +70 ˚C • No fan, Natural heat dissipation

High Reliability，High Security

Dual XGS-PON upstream transmission • Type B/Type C service protection • 802.1x authentication、 Firewall、DoS/ARP anti-attacks and other security features

Precise Timing

Support 1588V2 time synchronization, provide ns-level clock accuracy, and provide high-precision time service for various devices

Edge Computing

Support container management and APP deployment on demand • Northbound Interface supports IEC 61850 protocol and can communicate with various IoT platforms

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Sık sorulanlar

T823E-T hakkında kısa yanıtlar.

T823E-T fiyatı ne kadar?

T823E-T için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
