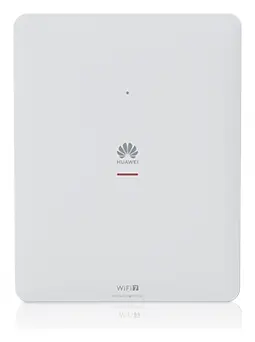

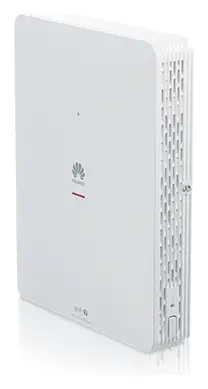

Huawei W827E-31 ONU

ModelW827E-31

Huawei W827E-31 ONU: Smart Interconnection, Smart Wi-Fi coverage • SIP/H.248 auto-negotiation, Wi-Fi7 Technology, Flexible installation Mode.

Port sayısı: 45 port
Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Smart Interconnection
Smart Wi-Fi coverage • SIP/H.248 auto-negotiation
Wi-Fi7 Technology
Flexible installation Mode

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 18 satır

NNI (Uplink)	XGS-PON
UNI (Kullanıcı Portları)	8xGE+1xPOTS+2.4 GHz & 5 GHz Wi-Fi 7
Boyutlar (Y x G x D)	36mm x 165mm x 210mm
Weight (excluding adapter)	0.6 kg
Çalışma Sıcaklığı	0°C to 40°C
Çalışma Nemi	5% RH to 95% RH (noncondensing)
Rated power supply	PoF (powered by the power over fiber cable): 48V DC, 0.5 A
Static power consumption	9 W
Maks. Güç Tüketimi	25.5 W
Montaj Şekli	Indoor junction box (86 mm) or wall-mounted installation
Anten	Built-in antenna
PON Portu	• Port mode: XGS-PON; • Port type: SC/UPC; • Standards compliance: ITU-T G.9807.1, Class N1/N2; • Receiver sensitivity: –28 dBm; • Overload optical power: –9 dBm; • Transmission rate: 9.953 Gbit/s downstream and 9.953 Gbit/s upstream
LAN port	• RJ-45 port; • Standards compliance: IEEE802.3; • 10/100/1000 Mbit/s auto-sensing; • Half duplex/full duplex auto-negotiation and configuration; • VLAN tag/tag removal, VLAN transparent transmission, and VLAN filtering based on Ethernet ports
TEL port	• G.711A/u, G.729a/b, and G.722 codec; • T.30, T.38, and G.711 fax; • DTMF; • Emergency call (SIP)
WLAN features	• Compliance with IEEE 802.11be and compatibility with IEEE 802.11a/b/g/n/ac/ax; • Beamforming; • Multi-user multiple-input multiple-output (MU-MIMO); • Multi-RU; • Orthogonal frequency division multiple access (OFDMA); • BSS Color; • Compliance with 4096-quadrature amplitude modulation (QAM) and compatibility with 1024-QAM, 256-QAM, 64-QAM, 16-QAM, 8-QAM, quadrature phase shift keying (QPSK), and binary phase shift keying (BPSK); • Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx);
Network features	• SSID-based VLAN assignment; • Management channel of the AP's uplink port in tagged or untagged mode; • DHCP client, obtaining IP addresses through DHCP; • Tunnel data forwarding and direct data forwarding; • STA isolation in the same VLAN; • ACL; • Link layer discovery protocol (LLDP); • Telemetry in Fit AP mode, quickly collecting AP status and application experience parameters; • IPv6 in Fit AP mode
Güvenlik	• Anti-DoS; • MAC and IP address filtering; • MAC address and IP address binding; • ONU Port-Level Hard-Isolated. Different ports of an ONU can be securely connected to multiple networks through the hard-isolated technology; • MAC address authentication, 802.1X authentication, MAB authentication, and dynamic delivery of user policies (VLANs and ACLs); • Terminal identification, terminal anti-spoofing, unauthorized terminal access prevention
Networking Protection	• Type B single-homing protection; • Type B dual-homing protection

Genel bakış

Huawei W827E-31 kullanım alanları ve özellikleri.

Huawei OptiXstar W827E-30 Series ONU is an XGS-PON Wi-Fi 7 ONU that provides 8 x GE ports, 1 x POTS port and 2.4 GHz & 5 GHz Wi-Fi 7 functions. It can be used for wired access, voice access, and Wi-Fi coverage in hotels, apartments, schools, enterprises, and governments.

Smart Interconnection

Smart Wi-Fi coverage • SIP/H.248 auto-negotiation

Wi-Fi7 Technology

IEEE 802.11 b/g/n/ax/be (2.4 GHz) • IEEE 802.11 a/n/ac/ax/be (5 GHz) • 2 x 2 MIMO (2.4 GHz & 5 GHz) • 4096 QAM • 160 MHz frequency band • Air interface rate: 688 Mbit/s (2.4 GHz); 2882 Mbit/s (5 GHz)

Flexible installation Mode

Installed in a junction box (86 mm) ，Installed on a wall • Fall-proof design • PoF cable remote power supply

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Sık sorulanlar

W827E-31 hakkında kısa yanıtlar.

W827E-31 fiyatı ne kadar?

W827E-31 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
