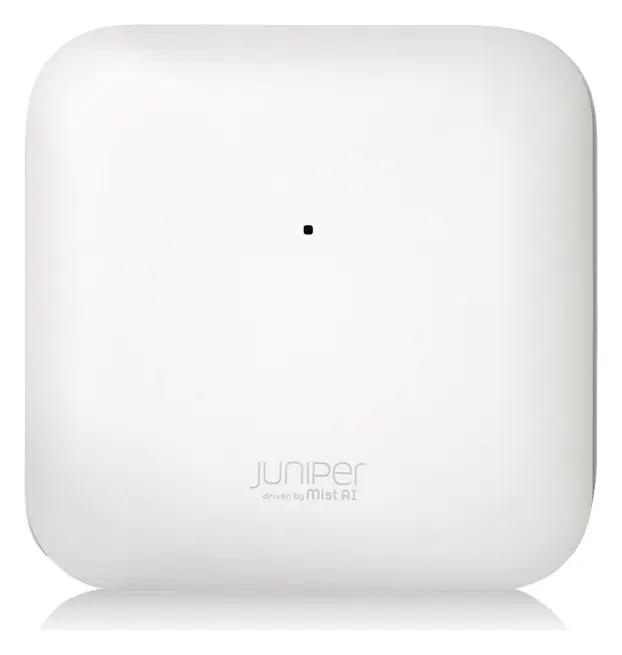

Juniper AP45E Wi-Fi 6E Access Point
Model
AP45EJuniper AP45E access point: Ease of deployment and ongoing management, Centralized control and visibility, Quick access to new features and functionality with no disruption to services, Agility to scale as network needs grow.
- Kablosuz standart
- Wi-Fi 6E
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Ease of deployment and ongoing management
- Centralized control and visibility
- Quick access to new features and functionality with no disruption to services
- Agility to scale as network needs grow
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 2 satır
| Sipariş Kodu (WW / Türkiye) | AP45E-WW |
|---|---|
| Bölgesel Sipariş Kodları | AP45E-US, AP45E-WW |
Teknik Özellikler 22 satır
| Wi-Fi Standardı | 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MUMIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring).; Backwards compatibility with 802.11a/b/g/n/ac |
|---|---|
| Combined Highest Supported Data Rates | Tri-Band: 8.3 Gbps Dual 5 GHz (internal antenna model): +6 GHz 9.6 Gbps |
| 2.4 GHz | 4x4:4 802.11ax up to 1,148 Mbps data rate |
| MIMO Çalışması | Four spatial stream SU-MIMO for up to 4,800 Mbps wireless data rate to individual 4x4 HE160; Four spatial stream MU-MIMO for up to 4,800 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously |
| Dedicated Fourth Radio | 2.4 GHz, 5 GHz, and 6 GHz tri-band WIDS/WIPS, spectrum analysis, synthetic client, and location analytics radio |
| Bluetooth 5.1 | vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna |
| Hüzme Yönlendirme (Beamforming) | Transmit Beamforming and Maximal Ratio Combining |
| Güç Seçenekleri | -802.3af: Single radio 1x1 + BLE and Scan. Eth0 1 Gbps, Eth1 disabled, no USB. This mode is meant to connect to the cloud and tell you AP needs more power; -802.3at: Any two radios 4x4 or with three data radios – 2x2 on 2.4 GHz, 4x4 on 5 GHz, and 2x2 on 6 GHz. BLE and Scan. No PSE out or USB; -802.3bt: Full function, tri radio 4x4, scan, BLE, eth0, eth1 + PSE out, USB |
| Boyutlar | 230 mm x 230 mm x 50 mm |
| Kutu Boyutları | 289 mm x 268 mm x 191 mm |
| Ağırlık | AP45 is 2.01 kg, AP45E is 1.97 kg |
| Çalışma Sıcaklığı | Internal antenna: 0° to 40° C External antenna: -10° to 50° C |
| Çalışma Nemi | 10% to 90% maximum relative humidity, non-condensing |
| Çalışma İrtifası | 3,048 m (10,000 ft) |
| IoT Sensörleri | Temperature, Accelerometer |
| USB | USB 2.0 support interface, 900 mA output |
| Eth0 | 100/1000/2500/5000Base-T (802.3bz); RJ45; PoE PD |
| Eth1 | 10/100/1000Base-T; RJ45; optional PoE 15.4W PSE mode (requires 802.3bt on Eth0) |
| External Antennas (AP45E) | Two pluggable antenna connectors; 2.4/5 (4 pin), 6+Scan (6 pin) |
| Sıfırlama | Reset to the factory default settings |
| Göstergeler | One multicolor status LED |
| Trafik Yönlendirme Seçenekleri | Eth0, Eth1, Juniper Mist Edge |
Genel bakış
Juniper AP45E kullanım alanları ve özellikleri.
Juniper AP45 flagship indoor Wi-Fi 6E access point, which is ideal for the most demanding Wi-Fi applications, including high-density environments.
The Juniper AP45 flagship indoor Wi-Fi 6E access point is ideal for the most demanding Wi-Fi applications, including high-density environments. The AP45 is a tri-band device with a dedicated fourth radio to allow more capacity, wider channels, and less interference to support growing mobility demands and digital transformation efforts.
The AP45 brings enterprise-grade Wi-Fi and patented virtual BLE (vBLE) technology together so businesses can increase the value of their wireless networks through personalized location services, including user engagement, asset visibility, and contact tracing. The AP45 provides the industry’s most accurate and scalable location services with no need for battery-powered BLE beacons or manual calibration.
While wired and wireless networks are business critical, without the right architecture they can be harder to operate given the sheer number of mobile and IoT devices—not to mention the extensive variety of hardware, operating systems, and applications currently in use. Traditional architectures—highly manual and network-centric—lack the scale, flexibility, and end-to-end visibility required to support modern mobility requirements and the IT departments that manage them.
The Juniper AP45 flagship access point brings the highest performance and vBLE technology to the 6 GHz band for enterprises needing increased channel widths and capacity and advanced location based services.
- Ease of deployment and ongoing management
- Centralized control and visibility
- Quick access to new features and functionality with no disruption to services
- Agility to scale as network needs grow
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP45E hakkında kısa yanıtlar.
AP45E fiyatı ne kadar?
AP45E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
