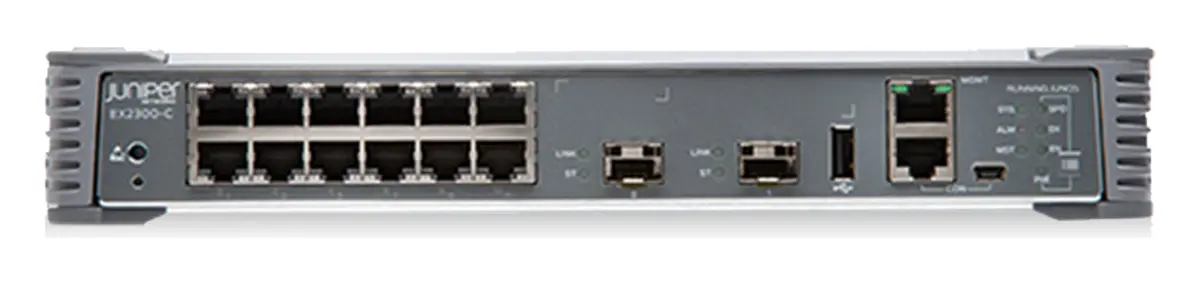

Juniper EX2300-C-12P-VC 12 Port PoE Switch

Juniper Networks EX2300-C Switch, which offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments.

The Juniper Networks EX2300-C Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments. The EX2300-C supports HPE Juniper Networking Virtual Chassis technology, allowing up to four interconnected switches to be managed as a single logical device, delivering a scalable, pay-as-you-grow solution for expanding networks. The EX2300-C is onboarded, provisioned, and managed in the Mist platform’s cloud, with Wired Assurance delivering better experiences for connected devices through AI-powered automation and service levels.

The Juniper Networks EX2300-C Switch delivers a compact, silent, and powerefficient platform for low-density branch deployments and commercial access or enterprise workgroup environments outside the wiring closet.

The fixed-configuration EX2300-C line of Ethernet switches delivers complete Layer 2 and basic Layer 3 switching capabilities to satisfy the low-density branch and low-density wiring closet connectivity requirements of today’s high performance business needs. The EX2300-C models extend that reach into workgroup environments that reside outside the wiring closet, including branch offices, retail access applications, education, hospitality, and# other locations where the switch is deployed in open areas inside a building.

Two versions are available. The EX2300-C-12T offers 12 front panel 10/100/1000BASE-T access ports and two SFP+ 10GbE uplink ports. The EX2300-C-12P offers 12 front panel 10/100/1000BASE-T IEEE 802.3af/IEEE 802.3at (PoE/PoE+) access ports, which can be used for powering networked devices such as telephones, video cameras, multiple radio IEEE 802.11ac wireless LAN (WLAN) access points, and videophones in converged network environments. In addition, the EX2300-C-12P has two SFP+ 10GbE uplink ports.

The uplink ports can be used to connect to higher-layer devices such as aggregation switches or routers. The uplink ports can also be configured as Virtual Chassis interfaces and connected via standard 10GbE interfaces. A fixed internal power supply ensures operational simplicity.

• 12 10/100/1000BASE-T access ports and two SFP+ 10GbE uplink ports
• 12 10/100/1000BASE-T PoE/PoE+ access ports and two SFP+ 10GbE uplink ports
• IEEE 802.3at (PoE+) compliance, allowing a variety of devices to draw power from the switch through the access ports
• Cloud-managed and driven by Mist AI with Juniper Wired Assurance
• Virtual Chassis support, allowing up to four switches to be interconnected and managed as a single logical device (optional license required)
• Energy Efficient Ethernet (EEE) support for GbE access ports
• Compact design featuring fanless and noiseless operation
• Day 0 operations— Onboard switches seamlessly by claiming a greenfield switch or adopting a brownfield switch with a single activation code for true plug-and-play simplicity.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.
