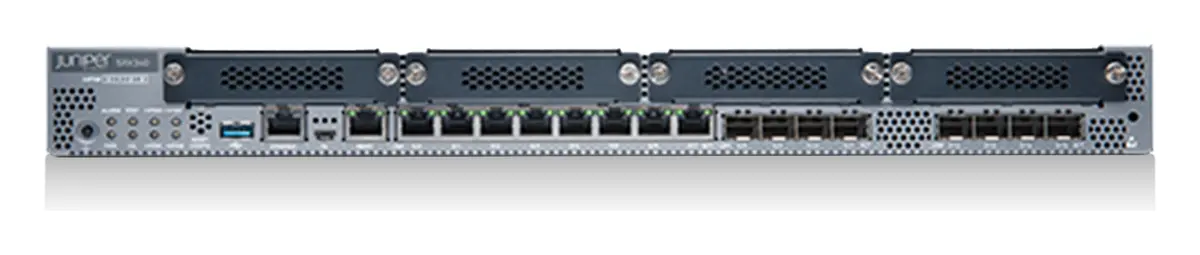

Juniper SRX345-SYS-JB Firewall

ModelSRX345-SYS-JB

Juniper SRX345-SYS-JB firewall.

Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Donanım Açıklaması	SRX345 Firewalls include hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)

Bağlantı 9 satır

Toplam Dahili Port	16x1GbE
Dahili RJ-45 Portları	8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	8x1GbE
MACsec Destekli Portlar	16x1GbE
Bant Dışı (OOB) Yönetim Portu	1x1GbE
Mini PIM (WAN) Yuvası	4
Konsol (RJ-45 + miniUSB)	1
USB 3.0 Port (Tip A)	1
PoE+ Portları	0

Bellek ve Depolama 3 satır

Sistem Belleği (RAM)	4 GB
Depolama	8 GB
SSD Yuvası	1

Boyutlar ve Güç 4 satır

Form Faktörü	1U
Boyutlar (GxYxD)	17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm) 3
Ağırlık (Cihaz + PSU)	10.80 lb (4.90 kg) / 11.02 lb (5 kg) 6
Yedekli PSU	No

Teknik Özellikler 47 satır

Güç Kaynağı	AC (internal) / DC (internal) 6
Rated DC voltage range	-48 to −60 VDC (with −15% and +20% tolerance)
Rated DC operating voltage range	-40.8 VDC to; -72 VDC6
Maks. PoE Gücü	N/A
Ortalama Güç Tüketimi	122W
Ortalama Isı Yayılımı	420 BTU/h
Maks. Akım Tüketimi	1.496A / 6A @; -48 VDC 6
Akustik Gürültü Seviyesi	45.5 dBA
Hava Akışı / Soğutma	Front to back
Çalışma Sıcaklığı	32°F to 104°F (0°C to 40°C) −-22°F to 131°F (−30°C to 55°C) for SRX345-DC
Depolama Sıcaklığı	-4°F to 158°F (−20°C to 70°C); -22°F to 158°F (−30°C to 70°C) for SRX345-DC
Çalışma Nemi	10% to 90% non-condensing
Depolama Nemi	5% to 95% non-condensing
MTBF	27.4 years
FCC classification	Class A
RoHS compliance	RoHS 2
FIPS 140-2	Level 2 (Junos 20.2R1)
Common Criteria certification	NDPP, VPNEP, FWEP, IPSEP (based on Junos 20.4R1)
NAT Kuralı	2,000
MAC Tablosu Boyutu	15,000
IPSec VPN Tünel Sayısı	2,048
Number of remote access/SSL VPN (concurrent) users	250
GRE Tünel Sayısı	1,024
Maks. Güvenlik Bölgesi	64
Maks. Sanal Yönlendirici	128
Maks. VLAN Sayısı	3,000
AppID sessions	64,000
IPS sessions	64,000
URLF sessions	64,000
4G / LTE MPIM (SRX-MP-LTE-AA and SRX-MP-LTE-AE)	Yes
802.11ac Wave 2 Wi-Fi MPIM	Yes
Management (CLI, JWEB, SNMP, Telnet, SSH)	Included
Ethernet switching (L2 Forwarding, IRB, LACP, etc.)	Included
L2 Transparent, Secure Wire	Included
Routing (RIP, OSPF, BGP, Virtual router)	Included
Multicast (IGMP, PIM, SSDP, DMVRP)	Included
Packet Mode	Included
Overlay (GRE, IP-IP)	Included
Network Services (J-Flow, DHCP, QOS, BFD)	Included
Stateful Firewall, Screens, ALGs	Included
NAT (static, SNAT, DNAT)	Included
IPSec VPN (Site-to-Site VPN, Auto VPN, Group VPN)	Included
Firewall policy enforcement (UAC, HPE Aruba Networking CPPM)	Included
Remote Access/SSL VPN (concurrent users)	Optional
Chassis Cluster, VRRP, ISSU/ICU	Included
Automation (Junos scripting, auto-installation)	Included
MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS	Included

Performans ve Ölçek 16 satır

Routing with packet mode (64 B packet size) in Kpps	750
Routing with packet mode (IMIX packet size) in Mbps	2,300
Routing with packet mode (1,518 B packet size in Mbps	5,500
Stateful firewall (64 B packet size) in Kpps	550
Stateful firewall (IMIX packet size) in Mbps	1,500
Stateful firewall (1,518 B packet size) in Mbps	5,000
IPSec VPN (IMIX packet size) in Mbps	325
IPSec VPN (1,400 B packet size) in Mbps	977
Application visibility and control in Mbps	1,700
Recommended IPS in Mbps	600
Next-generation firewall in Mbps	430
Secure Web Access firewall in Mbps	295
Route table size (RIB/FIB) (IPv4 or IPv6)	1 million/600k 10
Maks. Eşzamanlı Oturum (IPv4/IPv6)	375,000
Maks. Güvenlik Politikası	4,000
Saniyede Bağlantı	15,000

Genel bakış

Juniper SRX345-SYS-JB kullanım alanları ve özellikleri.

The SRX300 line of firewalls combines effective security, SD‑WAN, routing, switching, and WAN interfaces with next‑generation firewalls and advanced threat mitigation capabilities for cost‑effective, secure connectivity.

The SRX300 line of firewalls combines effective security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewalls and advanced threat mitigation capabilities for cost-effective, secure connectivity across distributed enterprise locations. By consolidating fast, highly available switching, routing, security, and NGFW capabilities in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering the total cost of ownership (TCO).

Juniper Networks’ SRX300 line of firewalls delivers a next-generation firewall (NGFW) and a secure SD-WAN solution that supports the changing needs of enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity, and advanced threat mitigation capabilities. NGFW and content security capabilities make detecting and proactively mitigating threats easier while improving the user and application experience.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - SRX300 line of firewalls for the branch (PDF)PDF · SRX345-SYS-JB

Sık sorulanlar

SRX345-SYS-JB hakkında kısa yanıtlar.

SRX345-SYS-JB fiyatı ne kadar?

SRX345-SYS-JB için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
