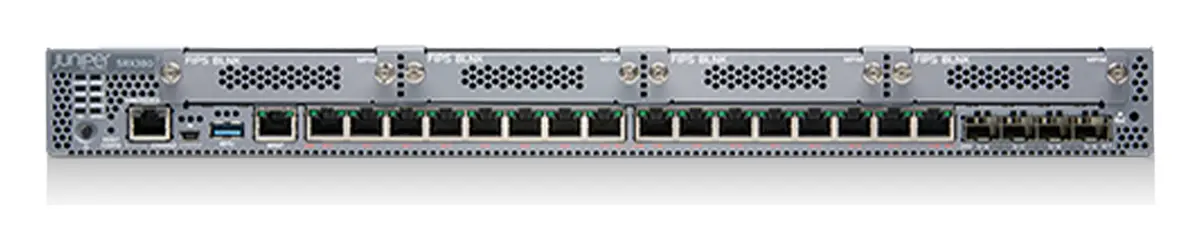

Juniper SRX380-P-SYS-JB-AC PoE+ Firewall
Model
SRX380-P-SYS-JB-ACJuniper SRX380-P-SYS-JB-AC firewall.
- Kablosuz standart
- Wi-Fi 5
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 1 satır
| Donanım Açıklaması | SRX380 Firewalls include hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching) |
|---|
Bağlantı 9 satır
| Toplam Dahili Port | 20 (16x1GbE, 4x10GbE) |
|---|---|
| Dahili RJ-45 Portları | 16x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x10GbE SFP+ |
| MACsec Destekli Portlar | 16x1GbE 4x10GbE |
| Bant Dışı (OOB) Yönetim Portu | 1x1GbE |
| Mini PIM (WAN) Yuvası | 4 |
| Konsol (RJ-45 + miniUSB) | 1 |
| USB 3.0 Port (Tip A) | 1 |
| PoE+ Portları | 16 |
Bellek ve Depolama 3 satır
| Sistem Belleği (RAM) | 4 GB |
|---|---|
| Depolama | 100 GB SSD |
| SSD Yuvası | 1 |
Boyutlar ve Güç 4 satır
| Form Faktörü | 1U |
|---|---|
| Boyutlar (GxYxD) | 17.36 x 1.72 x 18.7 in. (44.09 x 4.37 x 47.5 cm) / 17.36 x 1.72 x 20.47 in. (44.09 x 4.37 x 52 cm) |
| Ağırlık (Cihaz + PSU) | 15 lb (6.8 kg) with 1xPSU / 16.76 lb (7.6 kg) with 2xPSU |
| Yedekli PSU | Yes |
Teknik Özellikler 46 satır
| Güç Kaynağı | 1+1 hotswappable AC PSU |
|---|---|
| Rated DC voltage range | NA |
| Rated DC operating voltage range | N/A |
| Maks. PoE Gücü | 480W |
| Ortalama Güç Tüketimi | 150W (without PoE) 510W (with PoE) |
| Ortalama Isı Yayılımı | 511.5 BTU/hr (without PoE) |
| Maks. Akım Tüketimi | 1.79A/7.32A |
| Akustik Gürültü Seviyesi | < 50 dBA @ room temperature 27 ° C |
| Hava Akışı / Soğutma | Front to back |
| Çalışma Sıcaklığı | 32°F to 104°F (0°C to 40°C) with MPIMs 32°F to 122°F (0°C to 50°C) without MPIMs |
| Çalışma Nemi | 10% to 90% non-condensing |
| Depolama Nemi | 5% to 95% non-condensing |
| MTBF | 28.1 years |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 20.2R1) |
| Common Criteria certification | NDPP, VPNEP, FWEP, IPSEP (based on Junos 20.4R1) |
| NAT Kuralı | 3,000 |
| MAC Tablosu Boyutu | 16,000 |
| IPSec VPN Tünel Sayısı | 2,048 |
| Number of remote access/SSL VPN (concurrent) users | 500 |
| GRE Tünel Sayısı | 2,048 |
| Maks. Güvenlik Bölgesi | 128 |
| Maks. Sanal Yönlendirici | 128 |
| Maks. VLAN Sayısı | 3,000 |
| AppID sessions | 64,000 |
| IPS sessions | 64,000 |
| URLF sessions | 64,000 |
| 4G / LTE MPIM (SRX-MP-LTE-AA and SRX-MP-LTE-AE) | Yes |
| 802.11ac Wave 2 Wi-Fi MPIM | Yes |
| Management (CLI, JWEB, SNMP, Telnet, SSH) | Included |
| Ethernet switching (L2 Forwarding, IRB, LACP, etc.) | Included |
| L2 Transparent, Secure Wire | Included |
| Routing (RIP, OSPF, BGP, Virtual router) | Included |
| Multicast (IGMP, PIM, SSDP, DMVRP) | Included |
| Packet Mode | Included |
| Overlay (GRE, IP-IP) | Included |
| Network Services (J-Flow, DHCP, QOS, BFD) | Included |
| Stateful Firewall, Screens, ALGs | Included |
| NAT (static, SNAT, DNAT) | Included |
| IPSec VPN (Site-to-Site VPN, Auto VPN, Group VPN) | Included |
| Firewall policy enforcement (UAC, HPE Aruba Networking CPPM) | Included |
| Remote Access/SSL VPN (concurrent users) | Optional |
| Chassis Cluster, VRRP, ISSU/ICU | Included |
| Automation (Junos scripting, auto-installation) | Included |
| MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS | Included |
Performans ve Ölçek 16 satır
| Routing with packet mode (64 B packet size) in Kpps | 1700 |
|---|---|
| Routing with packet mode (IMIX packet size) in Mbps | 5000 |
| Routing with packet mode (1,518 B packet size in Mbps | 10,000 |
| Stateful firewall (64 B packet size) in Kpps | 1700 |
| Stateful firewall (IMIX packet size) in Mbps | 6,500 |
| Stateful firewall (1,518 B packet size) in Mbps | 20,000 |
| IPSec VPN (IMIX packet size) in Mbps | 1400 |
| IPSec VPN (1,400 B packet size) in Mbps | 4,400 |
| Application visibility and control in Mbps | 6,000 |
| Recommended IPS in Mbps | 2,000 |
| Next-generation firewall in Mbps | 2,500 |
| Secure Web Access firewall in Mbps | 1,800 |
| Route table size (RIB/FIB) (IPv4 or IPv6) | 1 million/600k 10 |
| Maks. Eşzamanlı Oturum (IPv4/IPv6) | 380,000 |
| Maks. Güvenlik Politikası | 4,000 |
| Saniyede Bağlantı | 50,000 |
Genel bakış
Juniper SRX380-P-SYS-JB-AC kullanım alanları ve özellikleri.
The SRX300 line of firewalls combines effective security, SD‑WAN, routing, switching, and WAN interfaces with next‑generation firewalls and advanced threat mitigation capabilities for cost‑effective, secure connectivity.
The SRX300 line of firewalls combines effective security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewalls and advanced threat mitigation capabilities for cost-effective, secure connectivity across distributed enterprise locations. By consolidating fast, highly available switching, routing, security, and NGFW capabilities in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering the total cost of ownership (TCO).
Juniper Networks’ SRX300 line of firewalls delivers a next-generation firewall (NGFW) and a secure SD-WAN solution that supports the changing needs of enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity, and advanced threat mitigation capabilities. NGFW and content security capabilities make detecting and proactively mitigating threats easier while improving the user and application experience.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
SRX380-P-SYS-JB-AC hakkında kısa yanıtlar.
SRX380-P-SYS-JB-AC fiyatı ne kadar?
SRX380-P-SYS-JB-AC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
