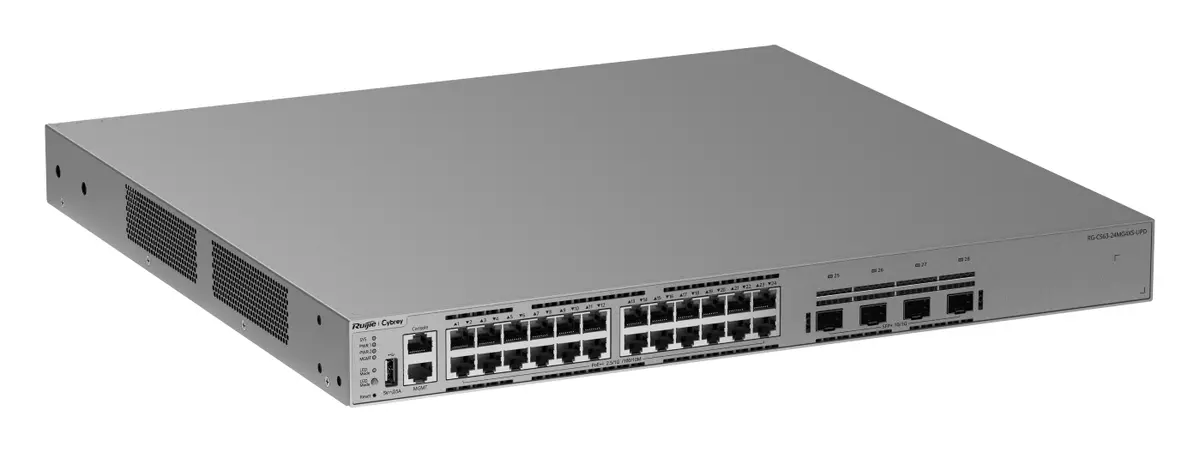

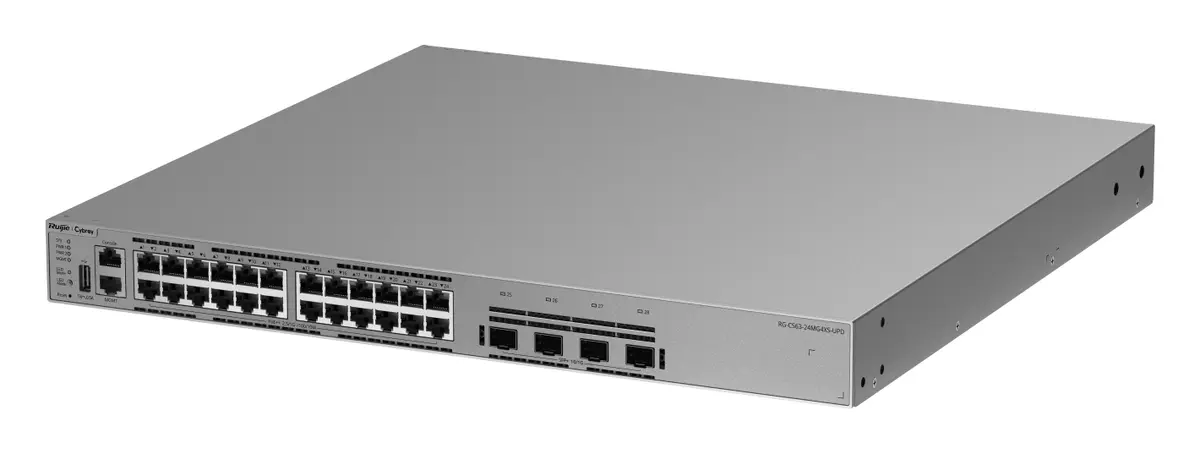

RUIJIE · RG-CS63-24MG4XS-UPD Ruijie RG-CS63-24MG4XS-UPD 24 Port 2.5G Multi-Gigabit PoE++ 4×10G SFP+ L3 Yönetilebilir Switch
Ruijie ·PoE Switch

Ruijie RG-CS63-24MG4XS-UPD 24 Port 2.5G Multi-Gigabit PoE++ 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-CS63-24MG4XS-UPD

Ruijie RG-CS63-24MG4XS-UPD, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 90 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı
Gigabit
PoE
PoE
Port sayısı
24 port
  • Class 8 90 W high-power PoE
  • 10 kV port surge protection
  • Supports operating temperatures up to 50°C
  • Hot-swappable dual power supplies
  • Dual flash, dual boot, and dual bin
  • Circuit isolation protection based on optical ports
  • Supports up to 8 devices in a VSU
  • Comprehensive Layer 3 service features
Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
Türkiye geneli sevkiyat
Kurulum ve teknik destek

Genel bakış

Ruijie RG-CS63-24MG4XS-UPD özellikleri ve kullanım alanları.

Offices, hotels, warehouses, hospitals, and schools.

RG-CS63-24MG4XS-UPD Layer 3 Access Switches with Multi‑Gig Ports and 10G SFP+ Uplinks

Access Switches with 10G Uplinks

Equipped with 24 x 10/100/1000/2.5GBASE-T ports and 4 x 10G SFP+ uplinks, the access switches deliver high‑speed access for next‑gen Wi‑Fi 8 APs and bandwidth‑hungry clients.

90 W PoE (Class 8)

Class 8 90 W PoE powers high‑power devices like industrial cameras, smart displays, and Wi-Fi 7 APs.

8-unit stacking for flexible expansion helps maintain continuous service during device failures.

Dual-boot & Dual-bin

Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.

Area-based Port Power Supply

When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.

Layer 3 Capabilities

Cybrey switches provide full Layer 3 capabilities, supporting both Layer 2 flat deployment and Layer 3 networking. They deliver fast convergence and fault domain isolation, improve SLA performance, and reduce TCO.

10 kV Surge Protection & 50°C Operation

Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

Rack-mount guide rail

M4 x 8 mm screws

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Cybrey Cloud, Make Your Business Easy

MAC Address Management

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri

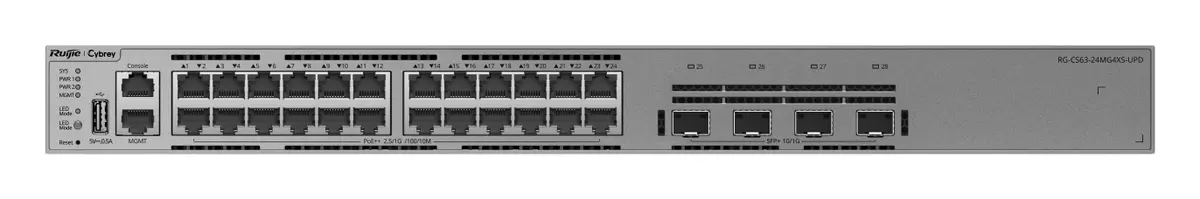

Sabit Servis Portları24 x 10/100/1000/2.5GBASE-T ports, supporting PoE/PoE+/PoE++; 4 x 1GE/10GE SFP+ ports
Konsol Portu1
Yönetim Portu1
USB1
Sistem Özellikleri
Anahtarlama Kapasitesi200 Gbps (Gbit/s)
İletim Hızı148.8 Mpps
Packet buffer size64 Mbit
İşlemci (CPU)Quad-core ARM A55 CPU frequency up to 1.2 GHz
SDRAM2 GB+4 bit ECC
Flash Bellek512 MB
BootROM16 MB
Gerçek Zamanlı Saat (RTC)Evet
Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.)
Kabin Yüksekliği1 RU
Packaging dimensions (W x D x H)570 mm x 565 mm x 200 mm (22.44 in. x 22.24 in. x 7.87 in.)
Cihaz Ağırlığı5.1 kg (11.24 lbs)
Packaging weight7.57 kg (16.69 lbs)
Güç Kaynağı ve Tüketim
Güç ModülüRG-PA600I-P-FC; RG-PA1000I-P-FC
Besleme Modu2 x pluggable power modules (not pre-installed)
Maks. Güç TüketimiFull-load:; 110 V: 1900 W; 220 V: 1850 W; No-load:; 110 V: 93.5 W; 220 V: 90.9 W
Güç GirişiRG-PA600I-P-FC (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 8 A; RG-PA1000I-P-FC (AC input 1):; Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz; Maximum input current: 12 A; RG-PA1000I-P-FC (AC input 2):; Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63
PoEEvet
PoE-out Port SayısıAll RJ45 ports support PoE/PoE+ and PoE++ power supply (IEEE 802.3af/at and 802.3bt).
PoE BütçesiThe PoE budget varies depending on the power modules used:; 1 x RG-PA600I-P-FC: 470 W; 1 x RG-PA1000I-P-FC: 800 W; 2 x RG-PA600I-P-FC: 940 W; 2 x RG-PA1000I-P-FC: 1600 W; Note: Mixed use of the RG-PA600I-P-FC and RG-PA1000I-P-FC power modules will be supported after a device software upgrade.
Port Başına PoE Bütçesi90 W
PoE power cable pairsFour pairs (1-2, 3-6, 4-5, and 7-8 pairs)
Ortam ve Güvenilirlik
Çalışma Sıcaklığı0°C to 50°C (32°F to 122°F)
Depolama Sıcaklığı–40°C to +70°C (–40°F to +158°F)
Çalışma Nemi10% RH to 90% RH (non-condensing)
Depolama Nemi5% RH to 95% RH (non-condensing)
Çalışma Rakımı0 m to 5000 m (0 ft. to 16,404.20 ft.)

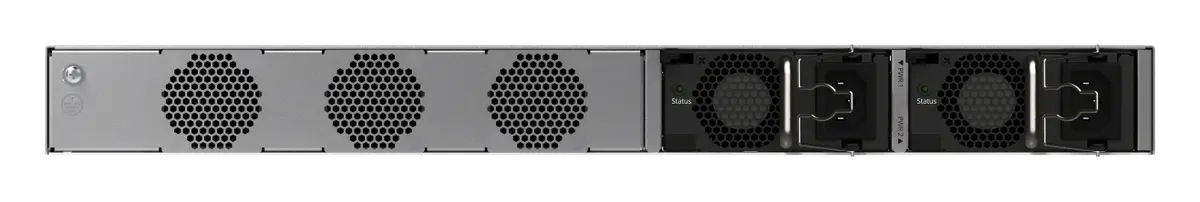

SoğutmaAir cooling, front-to-rear airflow, left-to-rear airflow
Fan3 x fixed fans
Gürültü27°C (80.6°F): 61 dB
Fan speed adjustmentIntelligent speed adjustment
Güç YedekliliğiYes; 2 x RG-PA1000I-P-FC: 1+1 power redundancy (only PoE load ≤ 800 W); 2 x RG-PA600I-P-FC: 1+1 power redundancy (only PoE load ≤ 470 W)
Hot swapping of power modulesEvet
Hot swapping of cablesEvet
USB hot swappingEvet
Aşırı Gerilim KorumasıService port:±10 kV for common mode; MGMT port:±10 kV for common mode; Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD preventionContact discharge: 6 kV; Air discharge: 8 kV
Temperature monitoring and protectionTemperature monitoring, temperature alarm, and over-temperature protection
Fan İzlemeFault alarm
Güç Kaynağı İzlemeMonitoring of power supply model and status; Power supply failure alarming
MTBF> 400,000 hours
Energy efficiencyEvet
Certification and Regulatory Compliance
Güvenlik StandartlarıIEC 62368-1 EN 62368-1
EMC StandartlarıEN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11
Ürün Bilgisi
Garanti5 years
Katman 2 Özellikleri
VLANIEEE 802.1Q; Port-based VLAN; MAC-based VLAN; Voice VLAN; IP/Subnet-based VLAN; Protocol-based VLAN; Private VLAN; Super VLAN; GVRP
Spanning treeIEEE802.1d STP; IEEE802.1w RSTP; Standard 802.1s MSTP
LLDPLLDP; LLDP-MED
Basic QinQBasic QinQ; Transparent transmission of double-tagged packets
Selective QinQSelective QinQ
REUPREUP
RLDPRLDP
ERPS(G.8032)ERPS(G.8032)
Maximum number of global MAC addresses (The device must be able to learn the maximum number of MAC addresses in the fullDefault: 64000 (subject to the UFT capacity)
Maximum number of created VLANs4094
Jumbo frame length / Port MTU9216
Layer 2 traffic convergence time≤ 200 ms
Katman 3 Özellikleri
ARPARP; anyIP
NDNeighbor discovery
VRFIPv4 and IPv6 VRF
Maks. ARP KaydıRecommended default: 30000 (subject to the UFT capacity)
Routing Features
Static routingIPv4 static routing; IPv6 static routing
OSPFOSPFv2 basics; OSPFv3 basics
BGP4BGP4 basics
BGP4+BGP4+ basics
IS-ISv4IS-ISv4 basics
IS-ISv6IS-ISv6 basics
RIPRIP; RIPv2
RIPngRIPng
PBRIPv4 PBR; IPv6 PBR
IPv4 routing table size32000
IPv6 routing table size8000 (resources shared with IPv4 routing)
Multicast Features
IGMP snoopingIGMP snooping v1/v2; IGMP snooping v3
IGMPIGMPv1/v2/v3; IGMP proxy
MLD snoopingMLD snooping; MLD snooping v2
MLDMLDv1/v2
PIM-SMv4PIM-SMv4; PIM-SSMv4
PIM-DMv4PIM-DMv4
PIM-SMv6PIM-SMv6; PIM-SSMv6
MSDPMSDP
Maximum number of IPv4 multicast routing table entries4000
Maximum number of IPv6 multicast routing table entries4000
ACL ve QoS
ACLIP standard ACL; IP extended ACL; MAC extended ACL; IPv6 ACL; Expert ACL; Time-based ACL; ACL-based redirection; ACL80
QoSTraffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; SP; WRR; SP+WRR; DRR; SP+DRR; WFQ; SP+WFQ; Congestion avoidance: tail drop; Traffic shaping (ingress/egress)
Maximum number of inbound ACE entries4500
Maximum number of outbound ACE entries1000
Maximum number of QoS hardware queues8 unicast queues + 8 multicast queues
Security Features
802.1XPort-based authentication; MAC-based authentication
AAAAAA
Web-based authenticationHTTP-based authentication; HTTPS-based authentication
IP source guardIP source guard
IPv6 source guardIPv6 source guard
SAVISAVI
Global IP-MAC bindingConfiguring global IP-MAC binding entries
TACACS+TACACS+
CPPHardware CPP
Port İzolasyonuPort isolation
RADIUSRADIUS
Port SecurityPort Security
NFPPNFPP
High Availability
VSU SanallaştırmaDevice virtualization
VRRPIPv4 VRRPv2; IPv4 VRRPv3; IPv6 VRRP
VRRP+IPv4 VRRP+; IPv6 VRRP+
BFDBFD detection
DLDPDLDP
Maks. VSU Üye Sayısı8
Interface Features
Aggregate interfaceLACP basics
MirroringSPAN; RSPAN
Management Features
SNMPSNMPv1/v2c/v3; RMON (1, 2, 3, 9)
SSHSSHv2; SSHv1
sFlowsFlow
gRPCgRPC framework
NETCONFNETCONF
SONSON
Cybrey CloudCybrey Cloud
OAM Features
PoEUninterrupted power supply upon warm start; PoE port priority
IP Servisleri
DHCPDHCPv4 client; DHCPv4 server; DHCPv4 relay; DHCPv4 snooping; DHCPv6 client; DHCPv6 relay; DHCPv6 snooping
ND snoopingND snooping
DNSDNS client; DNSv6 client
NTPNTP client; NTP server
SNTPSNTP client; SNTP
FTPFTP client; FTP server
TFTPTFTP client; TFTP server
System Features
USBUSB 2.0
Device
Main unit1
Aksesuarlar
Rack-mount bracket2
Rack-mount guide2
Rack-mount guide rail2
Screw10 x M4 x 8 mm screws
Rubber pad4
Grounding wire1
Manual
User Manual1
Warranty Card1

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-CS63-24MG4XS-UPD hakkında kısa yanıtlar.

RG-CS63-24MG4XS-UPD IP kamera beslemek için uygun mu?
Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 90 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.
RG-CS63-24MG4XS-UPD kaç portlu?
RG-CS63-24MG4XS-UPD 24 porta sahiptir.
RG-CS63-24MG4XS-UPD fiyatı ne kadar?
RG-CS63-24MG4XS-UPD için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
