PoE Switch RG-CS83-PD

Ruijie RG-CS83-24GT4XS-PD 24 Port Gigabit PoE+ 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-CS83-24GT4XS-PD

Ruijie RG-CS83-24GT4XS-PD, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 30 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

24 x 10/100/1000BASE-T ports and 4 x 1GE/10GE SFP+ uplink ports
IEEE 802.3af and IEEE 802.3at compliant, PoE+ supported
VSU, Realizing Flexible Networking and High Performance
Multiple management modes, allowing simplified and easy network maintenance

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 21 satır

Sabit Servis Portları	24 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/10GE SFP+ ports
Modül Yuvası	2 x power module slots
Güç Modülü	RG-PA600I-P-F; RG-PA1000I-P-F
Sabit Yönetim Portları	1 x RJ45 console port; 1 x RJ45 MGMT port
USB	1 x USB port
Paket İletim Hızı	96 Mpps
Anahtarlama Kapasitesi	128 Gbps
İşlemci (CPU)	Dual-core CPU, each core with the clock speed of 1.2 GHz
BootROM	16 MB
Flash Bellek	2 GB
Bellek	1 GB
Switch Tampon Belleği	3 MB
MAC Adres Tablosu	32,000
ARP Tablosu Boyutu	4,000
Number of IPv4 unicast routes	8,000
Number of IPv4 multicast routes	2,500
Number of IPv6 unicast routes	4,000
Number of IPv6 multicast routes	1,200
Number of ACEs	Ingress: 3,500; Egress:1,500
Number of VSU members	4
VLAN translation	4,094

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442 mm x 420 mm x 43.6 mm (17.40 in.x 16.54 in.x 1.72 in.)
Kutu Boyutları (G x D x Y)	570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	4.3 kg (9.48 lbs)
Kutulu Ağırlık	6.78 kg (14.95 lbs)

Güç Kaynağı ve Tüketim 9 satır

Güç Kaynağı	2 x pluggable power modules
Güç Modülü Yedekliliği	For dual power supplies, 1+1 power redundancy is supported only when the total PoE load of the device is less than the PoE output power of a single power supply
Güç Girişi	RG-PA600I-P-F (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 8 A; RG-PA1000I-P-F (AC input 1):; Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz; Maximum input current: 12 A; RG-PA1000I-P-F (AC input 2):; Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
Maks. Çıkış Gücü	RG-PA600I-P-F: 600 W; RG-PA1000I-P-F:; 100 V AC to 130 V AC: 930 W; 200 V AC to 240 V AC: 1000 W
Maks. Güç Tüketimi	65 W (non-PoE); 810 W (full PoE load)
PoE Portu	All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)
PoE Çıkış Gücü	Each PoE port provides up to 30 W of power; The maximum power depends on the configured power supply.; 1 x RG-PA600I-P-F: 370 W; 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24)
Energy saving	Destekleniyor

Ortam ve Güvenilirlik 16 satır

Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
MTBF	356,000 hours (about 41 years, dual power modules); 208,000 hours (about 24 years, single power module)
Fan	1 x fixed fan module
Isı Dağılımı	Left-to-right and front-to-right airflow
Gürültü Seviyesi	27°C (80.6°F): 51.6 dB; 45°C (113°F): 57.4 dB
Güç Modülü Sıcak Takas	Destekleniyor
USB hot swapping	Destekleniyor
Cable hot swapping	Destekleniyor
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply fault alarming
Fan İzleme	Fan speed adjustment: 3 levels; Automatic speed adjustment; Fan failure alarming
Sıcaklık İzleme	Temperature monitoring, over-temperature alarming; If the ambient temperature exceeds a certain value, the device will perform reset protection
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 10 kV; Power port: common mode 6 kV, differential mode 6 kV
Conformal coating	Conformal coating supported (key components only)

Sertifikalar ve Uyumluluk 3 satır

Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Communication standard	IEEE 802.3-2005 Ethernet standard; IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication

RG-CS83-PD Series 10 satır

Ethernet Anahtarlama	Jumbo frame (maximum length: 9216 bytes); IEEE 802.1Q (4K VLANs); Voice VLAN; Super VLAN and private VLAN; MAC VLAN, port-based VLAN, protocol-based VLAN, and IP-subnet based VLAN; GVRP; Basic QinQ; Selective QinQ; STP, RSTP, and MSTP; ERPS (G.8032); LLDP/LLDP-MED; LACP (IEEE 802.3ad); Non blocking
IP Servisleri	ARP; DHCP client, DHCP relay, and DHCP server; DHCP snooping; DNS; DHCPv6 client and DHCPv6 relay; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP, RIPng; OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6; BGP4 and BGP4+; IPv4 and IPv6 VRF; IPv4 and IPv6 PBR
Multicast	IGMP v1/v2/v3, and IGMP proxy; IGMP v1/v2/v3 snooping; PIM-DM, PIM-SM, and PIM-SSM; MSDP; MLD v1/v2; MLD snooping v1/v2; PIM-SMv6, PIM-SSM v6
ACL ve QoS	Standard IP ACLs; Extended IP ACLs; Extended MAC ACLs; ACL80; IPv6 ACL; ACL redirection; Port traffic identification; Port traffic rate limiting; 802.1p/DSCP/ToS traffic classification; Eight priority queues per interface; Traffic policing: CAR; Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ; Congestion avoidance: tail drop, RED, and WRED; Rate limiting in each queue; L2/L3/L4 packet identification and classification
Güvenlik	Multiple AAA modes; RADIUS and TACACS+; Port-based and MAC-based 802.1x authentication; Web authentication; Allowlist; HTTPS; SSHv1, SSHv2; Global IP-MAC binding; ICMP; Port isolation and port security; IP Source Guard; SAVI; Gateway ARP anti-spoofing; CPP(CPU Protection Policy）; NFPP( Network Foundation Protection Policy）; Strict and loose RPF; uRPF ignoring default routes
Güvenilirlik	REUP, RLDP, DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; BFD; Link tracing, fault notification, and remote loopback based on 802.3ah (EFM); Hot swapping of power modules and cables; 3-level fan speed adjustment; Fan fault alarm
Cihaz Sanallaştırma	Virtual Switching Unit (VSU)
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFlow; NTP and SNTP; FTP and TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); NETCONF; Flow-based mirroring, and N:1 and 1:N port mirroring; CWMP (TR-069) standard protocol; gRPC; Cloud and SON
PoE	IEEE 802.3af and 802.3at; Uninterruptible power supply upon hot start; Port priority

Genel bakış

Ruijie RG-CS83-24GT4XS-PD kullanım alanları ve özellikleri.

GE Access and PoE+ for Large-sized Networks

Layer 3 Access Switch for 10GE Uplink RG-CS83-24GT4XS-PD

Full-gigabit access switch for large-sized enterprise and campus LANs, with 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission 24 x 10/100/1000BASE-T ports, PoE+ supported, providing high-speed network experience for short-distance services

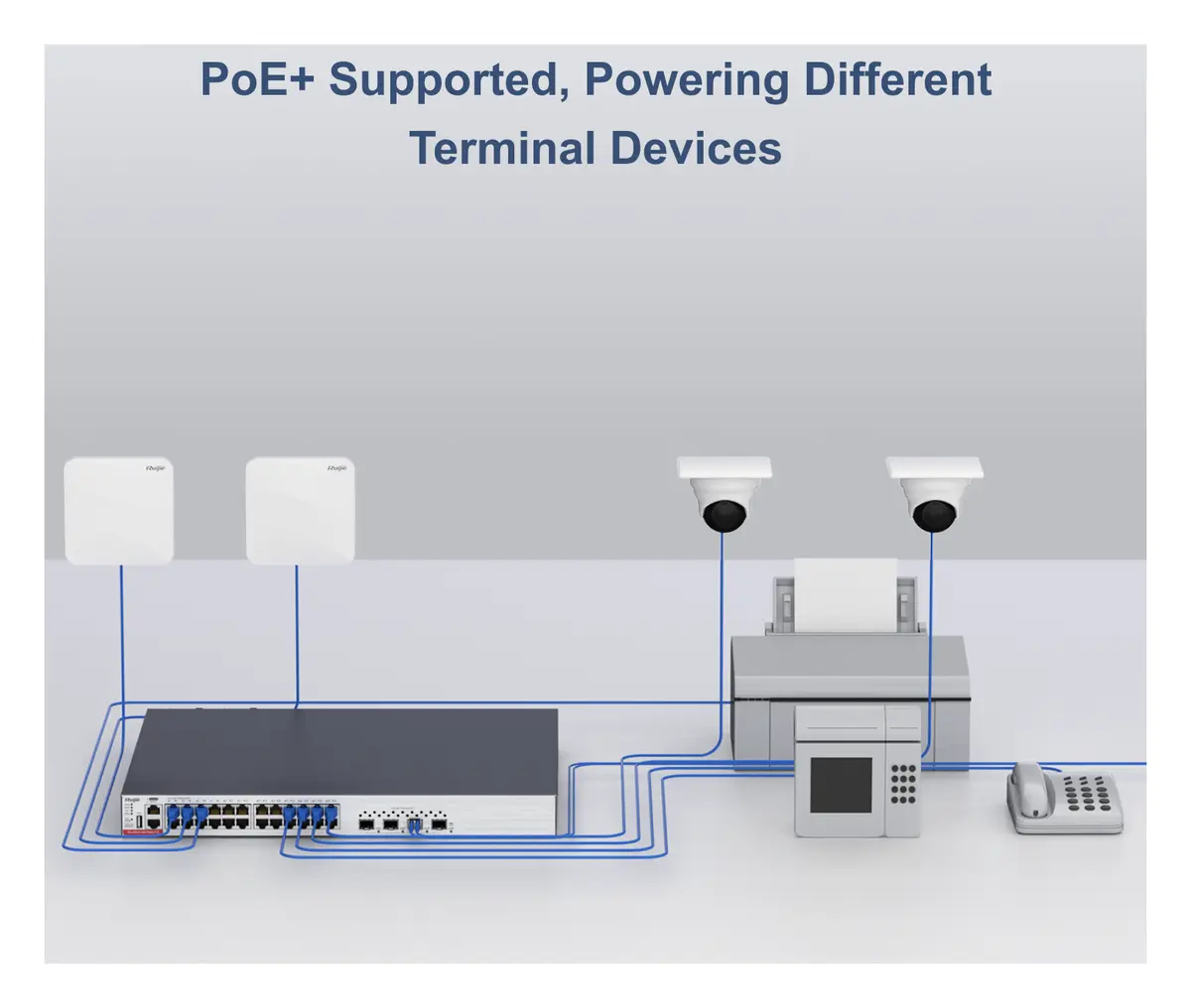

PoE+ Supported, Powering Different Terminal Devices

The switch automatically detects and supplies the required power for powered devices, providing up to 15.4 W for IEEE 802.3af-compliant devices, or up to 30 W for IEEE 802.3at-compliant devices, meeting the requirements of common PoE applications such as security surveillance, teleconferencing, and wireless coverage

VSU Virtualization, Flexible Networking and High Reliability

Millisecond Failover

High Scalability

Simplified Networking

Connected by an aggregate link, the VSU virtual system and peripherals switch links in milliseconds to ensure service continuity in case of a failure

VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.

Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.

Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness

CPU Protect Policy (CPP) is supported to control the packet type and traffic volume sent to the CPU to prevent high CPU usage. Network Foundation Protection Policy (NFPP) is supported to isolate users with attacker behaviors to ensure network security and stability

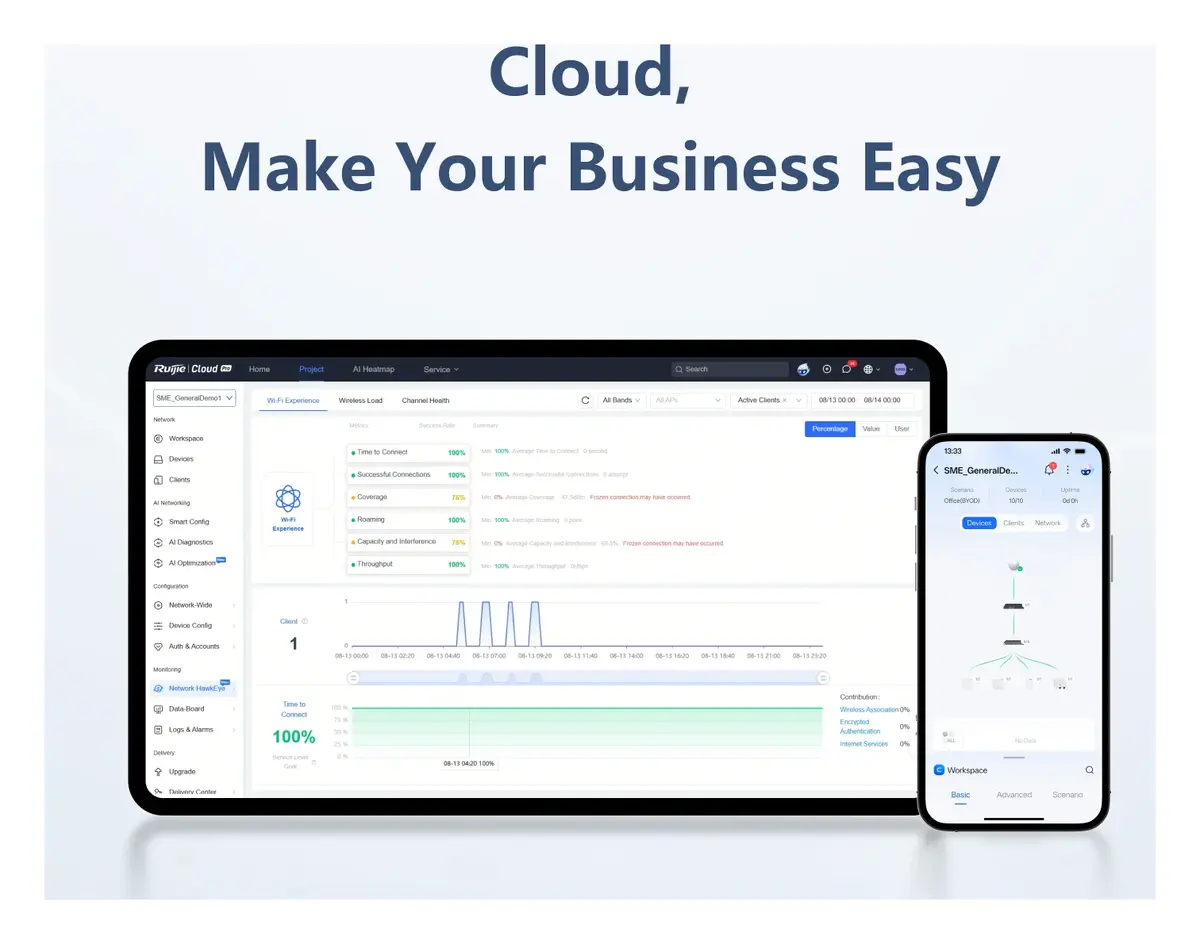

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statisticsat anytime anywhere
Configure VLANs on Ruijie Cloud APP
Ease of maintenance, saving onsite labor and cost

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS83-24GT4XS-PD

Sık sorulanlar

RG-CS83-24GT4XS-PD hakkında kısa yanıtlar.

RG-CS83-24GT4XS-PD IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 30 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-CS83-24GT4XS-PD kaç portlu?

RG-CS83-24GT4XS-PD 24 porta sahiptir.

RG-CS83-24GT4XS-PD fiyatı ne kadar?

RG-CS83-24GT4XS-PD için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
