RUIJIE · RG-S5350-12GT4XS-P-E Ruijie RG-S5350-12GT4XS-P-E 12 Port Gigabit PoE+ 4×10G SFP+ L3 Yönetilebilir Switch

Ruijie ·PoE Switch

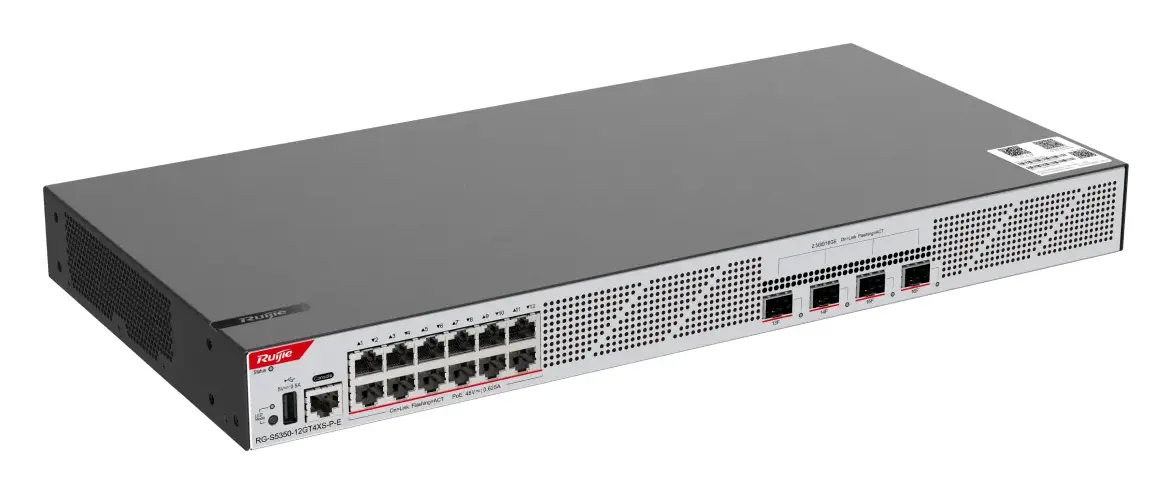

Ruijie RG-S5350-12GT4XS-P-E 12 Port Gigabit PoE+ 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-S5350-12GT4XS-P-E

Ruijie RG-S5350-12GT4XS-P-E, 12 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 30 W. 4 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 12 port

PoE+ supported, powering various terminal devices
Hardware-level reliability adapted to harsh environment
Security defense policies, ensuring network robustness
Efficient energy-saving management, reducing power consumption and noise
Combination with the UNC, offering simplified and efficient O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S5350-12GT4XS-P-E özellikleri ve kullanım alanları.

Characterized by security, high efficiency, intelligence, and energy saving, designed for network environments that require high performance, high port density, and easy installation

Layer 3 Compact Access Switch for 10GE Uplink RG-S5350-12GT4XS-P-E

Full-gigabit access switch for large-sized enterprise and campus LANs, with four 10GE SFP+ ports for high-speed data transmission

PoE+ Supported, Powering Various Terminal Devices

The switch automatically detects and supplies the required power for devices, meeting the needs of common PoE applications such as security surveillance, teleconferencing, and wireless coverage.

Hardware-Level Reliability Adapted to Harsh Environment

Industry-leading port surge protection capability of up to 10 kV Passed anti-corrosion tests, with the proven capability to withstand exposure to moisture, ensuring durability in severe environments

Security Defense Policies, Ensuring Network Robustness

CPU Protect Policy (CPP) is supported to control the packet type and traffic volume sent to the CPU, preventing high CPU usage. Virtual Switching Unit (VSU) ensures flexible networking and high performance.

Efficient Energy-saving Management, Reducing Power Consumption and Noises

Adopting advanced energy-saving technologies, the switch minimizes power usage and noise. With EEE, ports conserve energy by going dormant, activating only when traffic is detected.

RG-UNC for Visualized Management, Automated & Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri
Sabit Servis Portları	12 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/2.5GE/10GE SFP+ ports
Sabit Yönetim Portu	1 x RJ45 console port
USB	1 x USB 2.0 port
USB hot swapping	Destekleniyor
Cable hot swapping	Supported by all ports

Sistem Özellikleri
Sistem Paket İletim Hızı	94 Mpps
Anahtarlama Kapasitesi	104 Gbps / 336 Gbps
Switch Tampon Belleği	4 MB
İşlemci (CPU)	Dual-core CPU, each core with the clock speed of 1.0 GHz
Gerçek Zamanlı Saat (RTC)	Destekleniyor
BootROM	16 MB
Flash Bellek	512 MB
Bellek	DDR4 1GB
Switch Tampon Belleği	4 MB

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	3.3 kg (7.28 lbs)
Montaj	Mounting on a workbench/wall or in a rack (cabinet)

Güç Kaynağı ve Tüketim
Güç Kaynağı	1 x fixed power supply
Güç Girişi	AC input; Rated input voltage: 100 V AC to 240 V AC, 50/60Hz; Maximum input voltage: 90 V AC to 264 V AC; Maximum input current: 6 A
Maks. Çıkış Gücü	Built-in power supply: 409 W
Maks. Güç Tüketimi	35 W (without PoE load); 405 W (full PoE load)
Leakage current	≤ 3.5 mA
PoE Portu	Ports 1 to 12 support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)
PoE Çıkış Gücü	Each PoE port provides up to 30 W of power.; The maximum power is 370 W.
Energy saving	Destekleniyor

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.); Storage altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.)
Mean time between failure (MTBF	211,466 hours (about 24 years)
Fan	1 x fixed fan module
Isı Dağılımı	Front-to-right and left-to-right airflow
Gürültü Seviyesi	27℃(80.6°F): 35 dB
Fan İzleme	PID-based multi-level speed adjustment; Fan speed control (manual configuration not supported); Fan failure alarming
Sıcaklık İzleme	Destekleniyor
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	Service port: common mode 10 kV; Power port: common mode 6 kV, differential mode 6 kV

Performans ve Kapasite
Maks. VSU Üye Sayısı	8
VSU bandwidth	S5350-24GT4XS-E: 40 Gbps; S5350-24GT4XS-P-E: 40 Gbps; S5350-48GT4XS-E: 40 Gbps; S5350-48GT4XS-P-E: 40 Gbps; S5350-12GT4XS-P-E: 40 Gbps; S5350-24GT4SFP-E: 4 Gbps; S5350-24GT4SFP-P-E: 4 Gbps; S5350-48GT4SFP-E: 4 Gbps; S5350-48GT4SFP-P-E: 4 Gbps
Maximum number of SVIs	990
Maks. MAC Adres Kaydı	16,000
Maks. ARP Kaydı	4,000
Maximum number of ND entries	4,000
Maks. IPv4 Unicast Rota	6,000 (shared with IPv6 routes)
Maks. IPv6 Unicast Rota	2,000 (shared with IPv4 routes)
Maximum number of IPv4 multicast routes	1,000
Maximum number of IPv6 multicast routes	750
Maximum number of IGMP groups	1,000
Maximum number of MLD groups	750
Maximum number of VRF instances	255
Maximum number of ACEs	In: 1,750 Out: 800

Fonksiyonlar
Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); 802.3az EEE; IEEE 802.1Q (4K VLANs); Voice VLAN; Super-VLAN and private VLAN; MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN; GVRP; Basic QinQ; Selective QinQ; STP, (IEEE 802.1.d), RSTP, (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
IP Servisleri	Static and dynamic ARP, ARP proxy, and ARP entry timeout; DHCP client, DHCP relay, and DHCP server; DHCP snooping; DNS; DNS client, DNS proxy, and DNSv6 client; DHCPv6 client, DHCPv6 relay, and DHCPv6 server; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2 and OSPFv3; IS-ISv4 and IS-ISv6; BGP4 and BGP4+; IPv4 and IPv6 VRF; IPv4 and IPv6 PBR
Multicast	IGMP v1/v2/v3, and IGMP proxy; IGMP v1/v2 snooping; PIM-DM, PIM-SM, and PIM-SSM; PIM SMv6, and PIM-SSMv6; MSDP; MLDv1/v2 and MLD proxy; MLD snooping v1/v2; PIM-SMv6 and PIM-SSM v6; Multicast source IP address check; Multicast source port check; Multicast querier
ACL ve QoS	Standard IP ACLs; Extended IP (hardware ACLs; Extended MAC ACLs; Time-based ACLs; Expert-level ACLs; ACL80; IPv6 ACLon IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time r
Güvenlik	Multiple AAA modes; RADIUS and TACACS+; RADIUS authentication and authorization; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; HTTPS; SSHv1 and SSHv2; Global IP-MAC binding; ICMPv6; Port isolation and port security; IP source guard; SAVI; ARP spoofing prevention; CPP and NFPP; Portal authentication and Portal 2.0 authentication; ARP check; DAI; ARP packet rate limiting; Gateway ARP spoofing
Güvenilirlik	REUP; RLDP; RLDP, Layer 2 link connectivity detection, and unidirectional link detection; DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; BFD, NSR, VRRR, VRRP+; Basic LACP; Link tracing, fault notification, and remote loopback based on 802.3ah (EFM); Dual-Boot Redundancy; Fan speed adjustment; Fan fault alarm
Cihaz Sanallaştırma	Virtual Switching Unit (VSU)
Ağ Yönetimi ve Bakım	SPAN, RSPAN; sFlow; NTP and SNTP; FTP and TFTP; SNMP v1/v2c/v3; RMON (1, 2, 3, 9); NETCONF; CWMP (TR-069); gRPC; CLI (Telnet/Console); Web; Syslog/Debug; Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups; RMON used to implement Ethernet statistics, historical statistics, and alarm functions; OpenFlow Special 1.3; Flow table analysis defined by all protocols; Transmission of specified packets to the
PoE	RG-S5350-12GT4XS-P-E, RG-S5350-E-24GT4XS-P-E, RG-S5350-E-48GT4XS-P-E, RG-S5350-24GT4SFP-P-E and RG-S5350-48GT4SFP-P-E; IEEE 802.3af and 802.3at; Warm start; Port priority; Automatic and energy-saving power supply management modes; Uninterrupted power supply in hot start mode; Scheduled power-on or power-off of PoE ports based on the time policy

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Installation GuidePDF

Sık sorulanlar

RG-S5350-12GT4XS-P-E hakkında kısa yanıtlar.

RG-S5350-12GT4XS-P-E IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 30 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-S5350-12GT4XS-P-E kaç portlu?

RG-S5350-12GT4XS-P-E 12 porta sahiptir ve 4 adet SFP uplink portu bulunur.

RG-S5350-12GT4XS-P-E fiyatı ne kadar?

RG-S5350-12GT4XS-P-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
