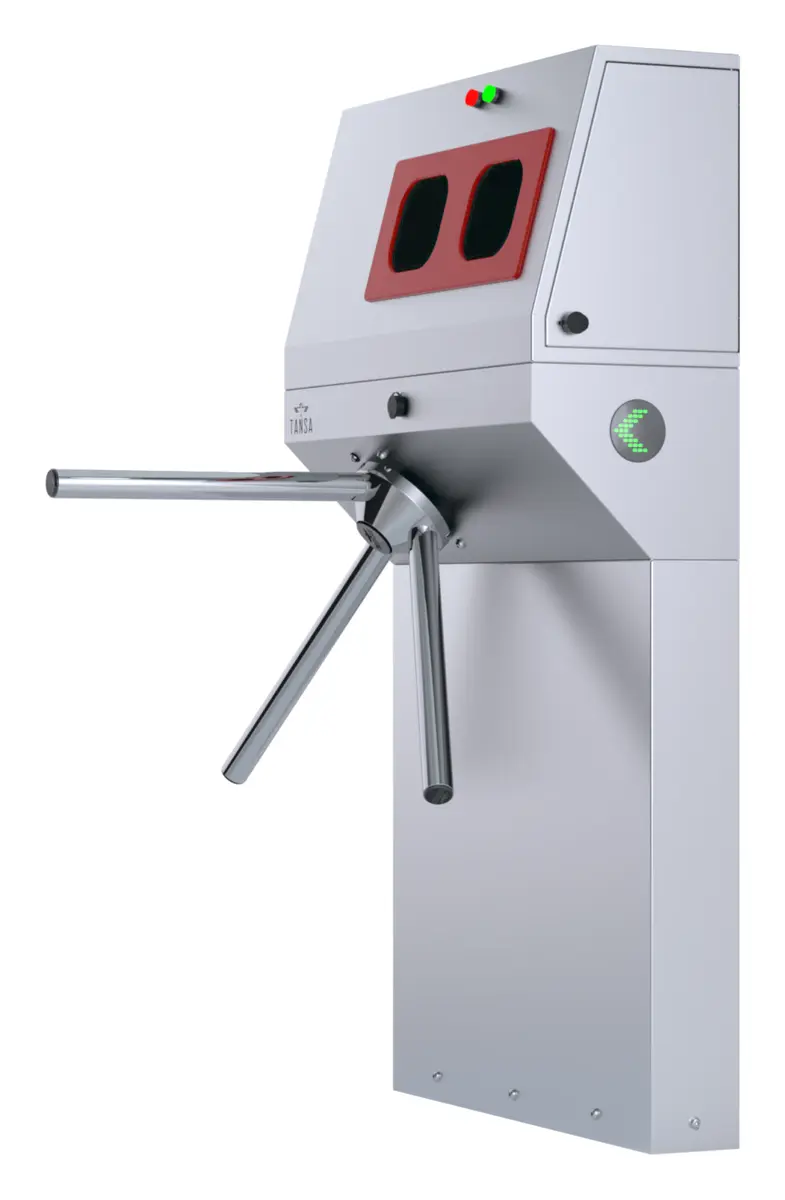

Tansa Durapod DT 590 530 mm Geçiş Tripod Turnike

Robust turnstiles for heavy traffic use with stainless steel arms. Bi-directional, logic controlled, LED indicators included on both entrance and exit sides. Hand operated; hand operated with drop arm; motor driven with drop arm options available.

Integrated sensor controlled hand disinfection unit. Turnstile let passages after the approval of hand disinfection.

Tahrik Mekanizması Seçenekleri

• Electromechanical, hand operated.
• Electromechanical, hand operated with drop arm.

Fonksiyonlar ve Arayüz

• Logic controlled interface, bi-directional operation
• Entrance and exit directions can be individually set as controlled, locked or free before or after the installation.
• The turnstile unlocks itself after the hand sanitation process
• In controlled access mode, after release confirmation which was sent by access control system, the turnstile unlocks the released direction and enables one person access in the direction of travel. After each person, the turnstile arm blocks passage again and does not permit access from both entrance and exit directions until receiving a new release signal from the access control system.
• After the release, the turnstile blocks itself after an adjusted time if no transition or passage occures.
• If people from both directions would like to pass through simultaneously, the first person who activates the turnstile takes precedense.
• An additional person is able to to release the next passage cycle during an ongoing passage cycle in both directions. The turnstile controller stores up to 255 releases and lets corresponding number of individuals pass through.
• Relay outputs for counting passage in either direction
• RS 232 serial port

Acil Durum ve Elektrik Kesintisi

In the event of emergency or power-cut the mechanism unlocks the arms and the arms rotate freely in both directions. The turnstile reset itself automatically when the emergency alarm stops or the power is switched back on.

LED Göstergeler

LED lights indicates the operating status of the turnstile in both directions/

Green: Standby or locked

Red: Released or free passage

Green: Released or free passage

Red: Standby or locked

Housıng Materıal Optıons

• AISI 304 Stainless steel (Standard)
• AISI 316 Stainless steel
• Powder coated steel in RAL colours

Aksesuarlar

• Mounting plate for raised/suspended floor
• Ramp plate
• Heating kit for -40 degrees
• Jump over & crawl under sensor kit integration
• Back-up battery 7A
• Access controller integration options (Please contact with sales represantative for full list of options and accessories

Nerelerde kullanılır?

Fabrika, okul, stadyum ve ofis girişlerinde kartlı, şifreli veya yüz tanımalı geçiş sistemleriyle entegre çalışarak tek tek ve kontrollü geçiş sağlar.

Tüm özellikler

• Electromechanical, hand operated.
• Electromechanical, hand operated with drop arm.
• Logic controlled interface, bi-directional operation
• Entrance and exit directions can be individually set as controlled, locked or free before or after the installation.
• The turnstile unlocks itself after the hand sanitation process
• In controlled access mode, after release confirmation which was sent by access control system, the turnstile unlocks the released direction and enables one person access in the direction of travel. After each person, the
• After the release, the turnstile blocks itself after an adjusted time if no transition or passage occures.
• If people from both directions would like to pass through simultaneously, the first person who activates the turnstile takes precedense.
• An additional person is able to to release the next passage cycle during an ongoing passage cycle in both directions. The turnstile controller stores up to 255 releases and lets corresponding number of individuals pass t
• Relay outputs for counting passage in either direction
• RS 232 serial port
• AISI 304 Stainless steel (Standard)
• AISI 316 Stainless steel
• Powder coated steel in RAL colours
