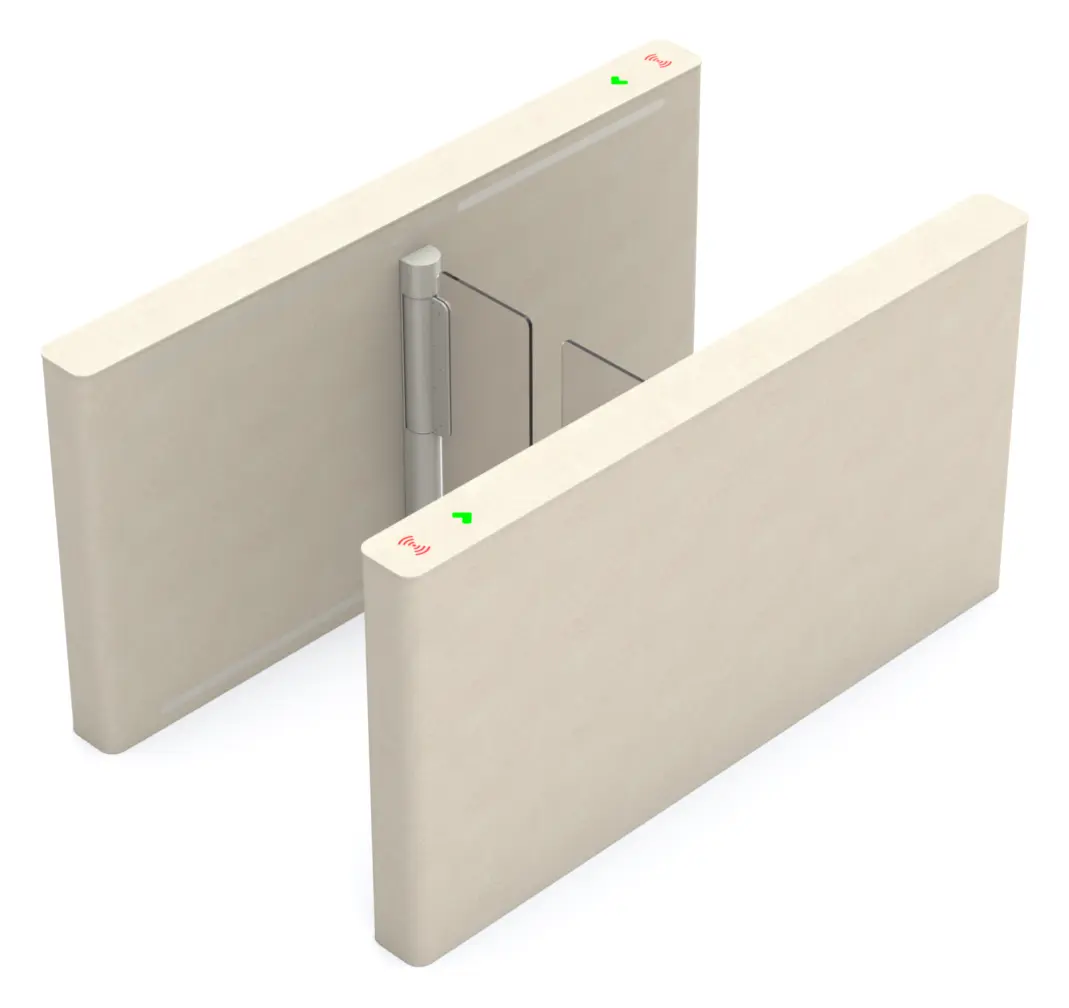

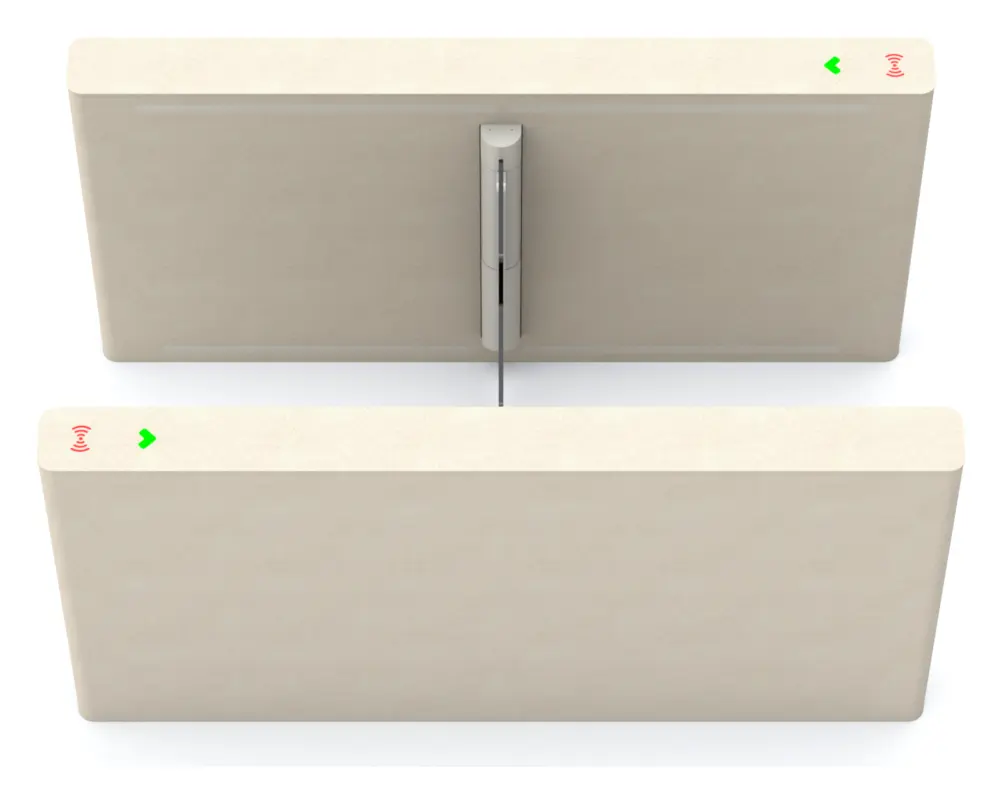

Tansa Vision Solid 650 – 915 mm Geçiş Hızlı Geçiş Turnikesi

A combination of elegant design and advanced security. Swing Speed Gate with 24V BLDC motor and 24 optical safety sensors. Opening and closing times between 0.4 and 1.2 seconds. As part of the interior design, Vision Solid Speed Gate can be adapted to the corporate or interior colors and becomes an integral part of your entrance area.

Composıtıon

• Galvanized coated steel frame
• Side panels options: Corian / Stainless Steel / Aluminium/ Powder Coated Steel
• 10 mm glass / Corian top
• Stainless steel motor mechanism and drive shaft
• 10 mm tempered glass barrier wing
• Illuminated indication pictograms

Acil Çıkış

In case of emergency alarm, 2 options are available.

With an additional and seperate input, fail-locked/emergency-locked option is available.

• Locking unit can be released and door leaves become unlocked position and move freely.
• Door leaves can be opened in selected direction and remains open during alarm sequence.

Hıgh Flow Rate

Vision Solid provides optimized security and high flow rate of people at the same time. For correct walking route, illuminated guidance pictograms give clear directions to staff and vistors.

Adjustable gate direction control adds flexibility to building entrance control systems and improves people flow for efficency & user convenience

Relıabıty & Long Lıfe Cycle

Basic and reliable mechanical system with advanced electronics allows maximum stability and needs less maintanence to provide permanent service life.

Vision Solid ensures an effective and reliable pedestrian entrance control system for a higher return on investment.

Variable passage width

650 mm – 915 mm

Vision Solid offers 2 passage width selection. 650 mm standard passage width and an 915 mm passage width for wheelchair access and material transport.

With adjustable door opening angle feature, 915 mm version can be reduced to 650 mm passage width for standard use.

For wheelchair access and material transport or in case of emergency the door opens 90 degrees to achieve 915 mm passage width.

Barrier height options

900 mm – 1200 mm – 1800 mm

Taller barrier door selections for higher security.

For high level security needs Vision Solid offers 1200 and 1800 mm tall barrier doors instead of standard 900 mm tall.

Erişim Kontrol Entegrasyonu

Vision Solid can be controlled by any kind of access control system through dry contact or COM ports.

Dept adjustable card reader & scanner installation area allows easy fitting.

The maximum dimensions for card reader: 160 mm long, 70 mm wide, 30mm dept.

Optional cuts on glass top is available for surface mount readers, reader holders or stands as well as standard or custom designed posts for access controller integration.

RFID Icon positioned in the middle of reader installation area to indicate the card reader position clearly.

An additional indicator on top illuminates in red when the gate is locked and changes to green for confirmed passages or during free passage.

Seçenekler ve Özelleştirme

To match aesthetic requirements, Vision Solid offers a freedom of choice with large selection of material and color combinations.

Multi-layer compositions and contrasting surfaces makes Vision Solid offers wide range of design options.

Nerelerde kullanılır?

Plaza, hastane ve kurumsal lobilerde estetik ve hızlı geçiş için kullanılır; yetkisiz geçiş ve kuyruk takibi (tailgating) algılama sunar.
