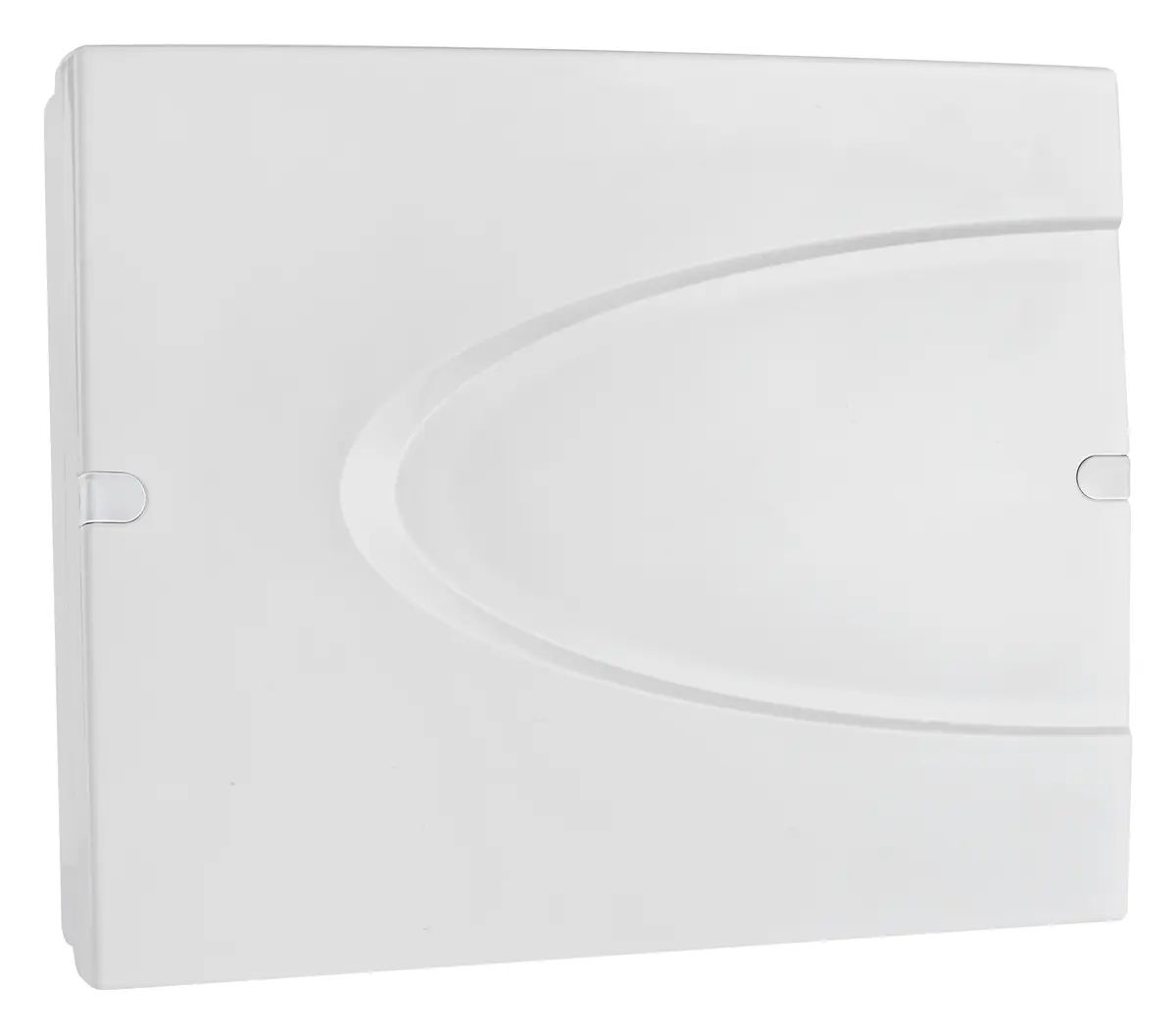

Teletek Eclipse 32 Hırsız Alarm Paneli

Teletek Eclipse 32, hırsız alarm panelidir. Öne çıkanlar: 16 bölge (32'ye kadar genişletilebilir).

Eclipse 32 is an intruder alarm panel with 8 / 16 zones with freely programmable parameters (with possibility for expanding up to 32), appropriate for security of homes, medium sized commercial premises and offices. The panel supports 8 independent areas (partitions) with individual programming.

Eclipse 32 has 8 physical inputs for connecting of detectors; the zone balancing is with 1 or 2 balancing resistors or doubling zone connection, for determining the type of balancing of every input. In the hardware system configuration the installer can choose among 9 connection styles in the zones. The full configuration of 32 zone can be realized with doubling zone connection (16 logical zones on the control PCB) and 1 Zone expander for 8 zones (16 logical zones on the) or without zone doubling with 3 zone expanders.

Main advantages:

• Up to 32 zones with freely programmable parameters
• 8 undependable areas
• Flexible programming via keyboard or ProsTE software.
• Available firmware update
• 3 different programming modes
• Up to 30 devices connected to the system bus
• Wide range of detectors, periphery devices and communication modules

• Zone inputs: 8 physical inputs on control panel for connecting of detectors.
• Max Zones: 8 / 16 zones with freely programmable parameters (with possibility for expanding up to 32).
• Zone Wiring: 9 types, single or doubling zone connection.
• Areas: 8 independent areas.
• Access control: via proximity card readers. 8 Time slots (tables) to manage the user access to the protected sites. Every time slot can be programmed individually according the system requirements. Auto Arming mode for arming the security areas in preprogrammed time.
• Outputs: 4 weak current and 1 power current programmable outputs type ОС (open collector) on the control panel. Expanding up to 32 outputs using PGM expander module. Same options for programming of all outputs. PGM4 can be programmed to operate as fire zone using 2-wire connection of a standard 24V fire base.
• Codes: 4/ 6 digit; 64 User codes, 1 Maintenance code, 1 Engineer code.
• Memory LOG: 1024 events with time and date – can be viewed by a keyboard or via ProsTE software.

Nerelerde kullanılır?

Ev, ofis, mağaza ve depolarda hırsız alarm sisteminin merkezidir; dedektörlerden gelen alarmları değerlendirir, siren çaldırır, kullanıcıya ve izleme merkezine bildirim gönderir.
