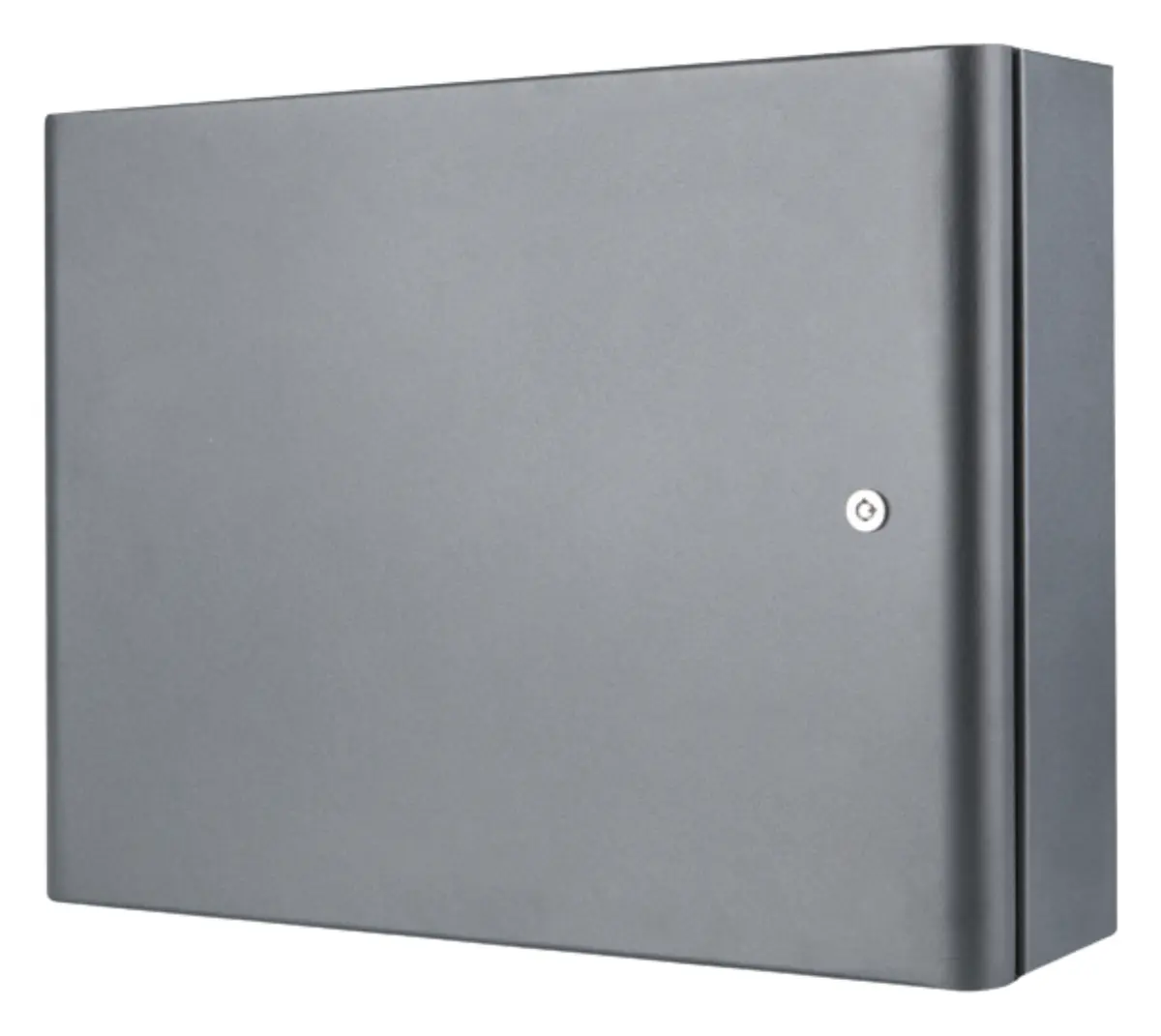

Teletek IRIS8 Loop Extension Box Adresli Loop Genişletme Modülü

Teletek IRIS8 Loop Extension Box, adresli loop genişletme modülüdür. Öne çıkanlar: loop başına 250 adres.

IRIS8 Ext. is an analogue addressable fire alarm loop extension. It extends the capacity of IRIS8 panel with 4 more loop controllers. IRIS8 Ext. supports two communication protocols: System Sensor series 200/500 (Loop SS) and Teletek Electronics (Loop TTE) according the type of used devices. In the configuration of the IRIS8 panel can be implemented both Loops SS and TTE at the same time. To avoid or significantly diminish problems when mounting the system it must be carefully planned prior to installation. This includes: establishing an address for every device and planning a name of maximum 40 digits (including the spaces) for each address, thereby ensuring easy access to the device. According to
the acting standards for establishing fire systems and the plan of the building, the devices must be grouped in zones.

BOSEC certified.

• Up to 4 loops, loop card expandable
• Up to 250 devices per loop, 1000 total
• Double address detection and localization
• Short circuit detection and localization
• Loop break detection

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
