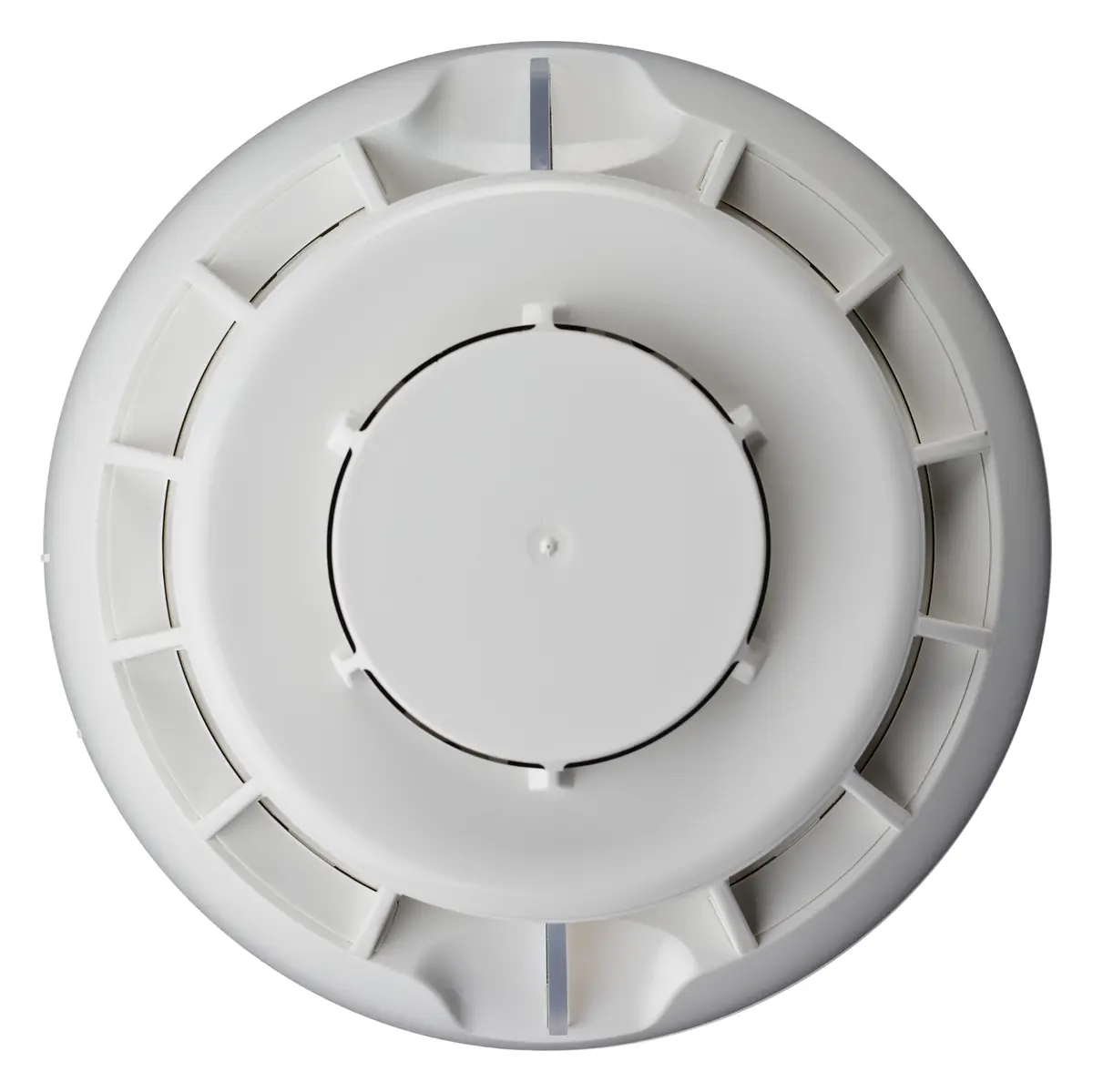

Teletek PAX FD Kablosuz Optik Duman + Isı Multi Dedektör

Teletek PAX FD, kablosuz optik duman + ısı multi dedektördür.

PAX FD is a wireless combined detector that uses both optical smoke sensing and heat detection to provide fire alarm monitoring within compatible PAX security systems. Designed for indoor residential and commercial installations, it operates as a supervised 24-hour fire alarm zone.

The detector can connect directly to the ЕМА control panel in a fully wireless system or through the PAX WL expander in a hybrid system with compatible Eclipse panels. Its heat element uses rate-of-rise detection specified at 10°C/min, while automatic compensation of the optical chamber helps maintain smoke-detection performance over time.

Bi-directional wireless communication provides jamming detection, encrypted communication channels and RSSI signal-strength indication. PAX FD transmits fire, tamper and low-battery events, with wireless communication specified at up to 1,500 m in open space.

Why Choose PAX FD?

Smoke and Heat Detection in One Device
Optical smoke sensing and rate-of-rise heat detection provide two fire-detection methods within one wireless device.

Wireless or Hybrid Installation
Use PAX FD with ЕМА in fully wireless systems or through PAX WL with compatible Eclipse control panels.

Supervised System Status
Fire, tamper and low-battery events are transmitted to the system, while RSSI indication helps installers evaluate wireless signal strength.

At a Glance

• Combined optical smoke and heat detection
• 24-hour supervised fire alarm zone
• Rate-of-rise heat detection, 10°C/min
• Automatic optical chamber compensation
• BRAVO Next and PAX WL compatibility
• Bi-directional wireless communication
• Jamming detection, channel encryption and RSSI indication
• Up to 1,500 m wireless range in open space

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
