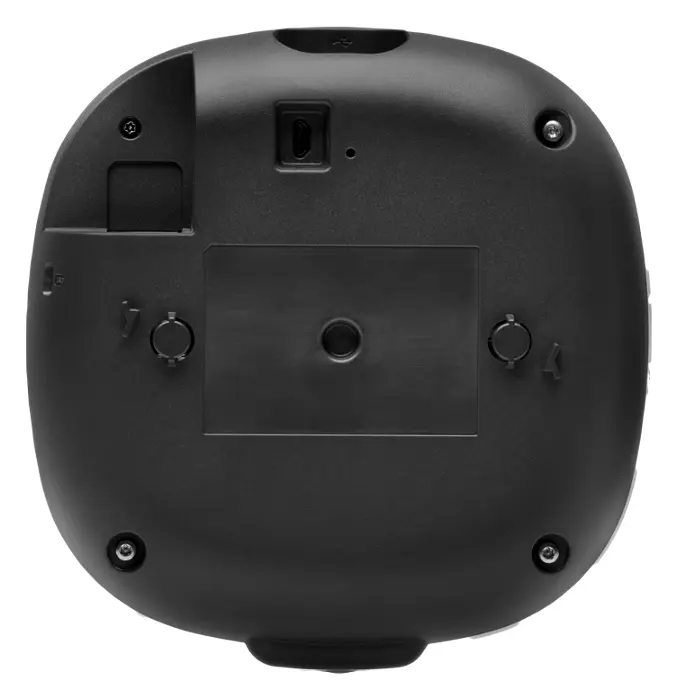

Aruba AP-503 Wi-Fi 6 Access Point
Model
AP-503Aruba AP-503 access point: Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate, It supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multiuser efficiency and WPA and Enhanced Open (OWE) for greater security, Dynamic segmentation and po.
- Kablosuz standart
- Wi-Fi 6
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
- It supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multiuser efficiency and WPA and Enhanced Open (OWE) for greater security
- Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
- Flexible management with AI-powered HPE Aruba Networking Central
- Available as optional eco-friendly 10-packs
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S1E83A |
|---|---|
| Bölgesel Sipariş Kodları | S5D83A (ID), S1E83A (RW), S2C07A (-), S1E84A (US), R8M95A (EG), R8M96A (IL), R8M97A (JP), R8M98A (RW), R8M99A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-503 10-Pack Dual Radio 2x2:2 Wi-Fi 6 Campus Access Point |
Seri Özellikleri 18 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 6 (802.11ax) |
| Wi-Fi Radyoları | Dual 2x2 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz and 5 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Wi-Fi Anteni | AP-503: Integrated downtilt omnidirectional antennas for 2x2 MIMO. Built-in antennas for horizontal ceiling-mounted orientation of the access point. The downtilt angle gain is roughly 30°. |
| Ultra Tri-Band (UTB) Filtreleme | No |
| IoT Desteği | USB 2.0 type A |
| Dahili Sensör | No |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 1 x 1GbE |
| MACsec Desteği | No |
| Portlar | E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.1.0 and later HPE Aruba Networking Wireless Operating System 10.5.0.0 and later |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | Ethernet Alliance (PoE, PD device, Class 3) Wi - Fi Alliance®: Wi - Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband |
| Regülasyonlar | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-503 kullanım alanları ve özellikleri.
HPE Aruba Networking 503 Series Campus Access Points deliver affordable Wi- Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 503 series delivers cost-effective and reliable Wi-Fi for low to medium density environments.
The 503 series is WiFi CERTIFIED® and supports 802.11ax features; OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 503 series includes a limited lifetime warranty.
HPE Aruba Networking 503 Series Campus Access Points deliver a maximum speed of 1.49 Gbps with up to 2 spatial streams and 80 MHz channels (HE80).
WiFi CERTIFIED® with support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. Handles multiple Wi-Fi 6 clients on each channel simultaneously, regardless of device or traffic type.
- Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
- It supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multiuser efficiency and WPA and Enhanced Open (OWE) for greater security
- Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
- Flexible management with AI-powered HPE Aruba Networking Central
- Available as optional eco-friendly 10-packs
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-503 hakkında kısa yanıtlar.
AP-503 fiyatı ne kadar?
AP-503 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
