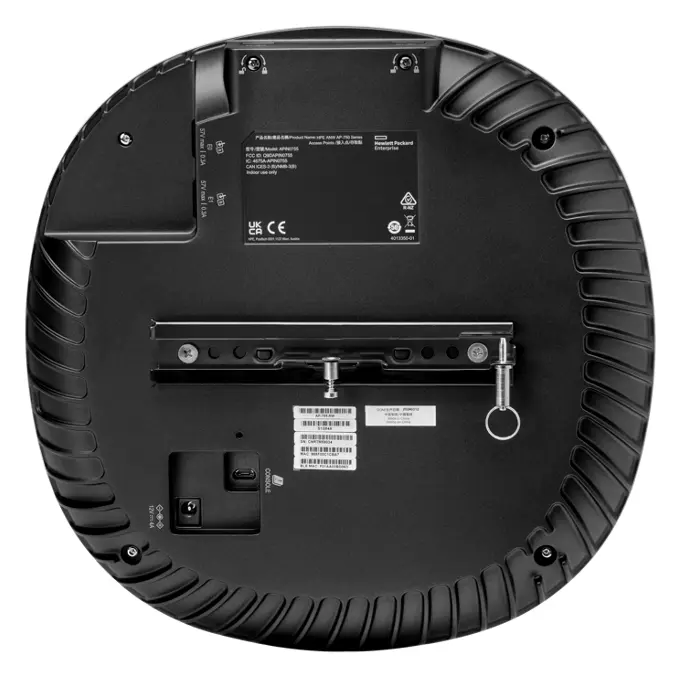

Aruba AP-755 Wi-Fi 7 Dahili Anten Access Point
Model
AP-755Aruba AP-755 access point: AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments, Three 4x4 MIMO radios provide comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps.
- Kablosuz standart
- Wi-Fi 7
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments
- Three 4x4 MIMO radios provide comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate
- High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine power from both ports
- High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self locate and act as reference points for accurate indoor location measurements
- Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S0H10A |
|---|---|
| Bölgesel Sipariş Kodları | S1G81A (EG), S5E16A (ID), S1G82A (IL), S1G83A (JP), S0H10A (RW), S1G84A (RW), S0H11A (US), S1G85A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-755 Tri Radio 4x4 Wi-Fi 7 Internal Antennas 5-pack Campus Access Point |
Seri Özellikleri 19 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 7 (802.11be) |
| Wi-Fi Radyoları | Triple 4x4 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz + 5 GHz + 6 GHz 5 GHz + 5 GHz + 6 GHz 5 GHz + 6 GHz + 6 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 750 Series Campus Access Points models: AP - 754: Two sets of four (female) RP - SMA connectors for external antennas AP - 755: Integrated downtilt omnidirectional antennas for 4x4 (2x2 on 2.4 GHz) MIMO. Built - in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle gain is roughly 30° to 40°. |
| Ultra Tri-Band (UTB) Filtreleme | Yes |
| IoT Desteği | Dual BLE and IEEE 802.15.4/Zigbee Dual USB |
| Dahili Sensör | Barometric sensor |
| Konum Servisleri | GNSS receiver 802.11 FTM support BLE channel sounding |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 2 x 10GbE |
| MACsec Desteği | Yes |
| Portlar | E0, E1: Two Ethernet wired network ports (RJ - 45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro - B USB physical jack) Kensington security slot |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Wi - Fi Alliance®: Wi - Fi CERTIFIED® a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Regülasyonlar | FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-755 kullanım alanları ve özellikleri.
HPE Aruba Networking 750 Series Campus Access Points are our flagship Wi-Fi 7 access points that deliver impressive wireless performance, strengthen network security, provide precise location-based services, and offer an Internet of Things (IoT) platform with enterprise-grade security, enabling enterprises to fully realize the value of their wireless investment and unlock operational efficiencies.
This high performance access point is designed with three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10 Gbps Ethernet ports, dual IoT radios, builtin GNSS receiver, and patented ultra tri-band (UTB) filtering for high capacity, fast, and resilient connectivity with enhanced security. HPE Aruba Networking Central provide intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 750 series includes a
Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multigigabit traffic, and less interference.
- AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments
- Three 4x4 MIMO radios provide comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate
- High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine power from both ports
- High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self locate and act as reference points for accurate indoor location measurements
- Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
