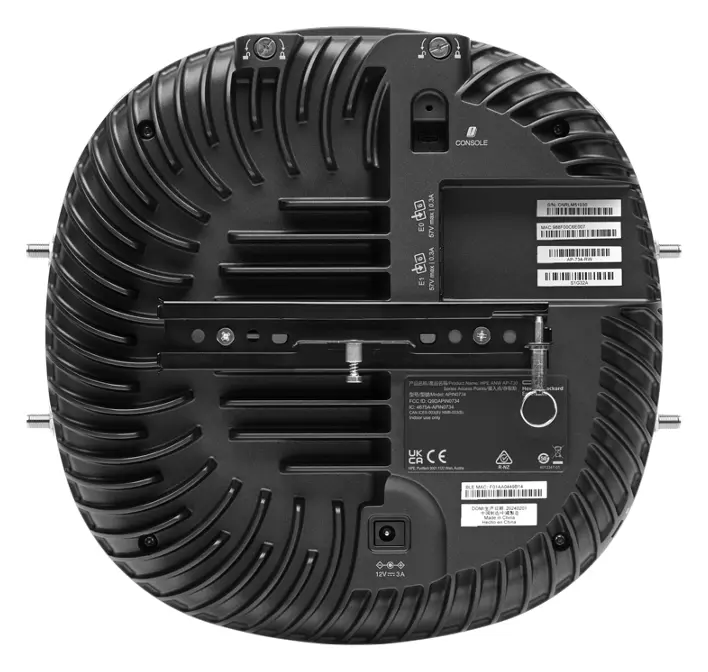

Aruba AP-734 Wi-Fi 7 Harici Anten Access Point
Model
AP-734Aruba AP-734 access point: Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments, Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate, Patented ultra tri-b.
- Kablosuz standart
- Wi-Fi 7
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments
- Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate
- Patented ultra tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands
- High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- High availability with dual 5 Gbps ports for redundant Ethernet and power
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S1G32A |
|---|---|
| Bölgesel Sipariş Kodları | S1G29A (EG), S1G30A (IL), S1G31A (JP), S1G32A (RW), S1G33A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-734 Tri Radio 2x2 Wi-Fi 7 External Antennas Campus Access Point |
Seri Özellikleri 19 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 7 (802.11be) |
| Wi-Fi Radyoları | Triple 2x2 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz + 5 GHz + 6 GHz or 5 GHz + 5 GHz + 6 GHz (AP-735) or 5 GHz + 6 GHz + 6 GHz (AP-735) |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 730 Series Campus Access Points models: AP-734: Two sets of two (female) RP-SMA connectors for external antennas AP-735: Integrated downtilt omnidirectional antennas for 2x2 MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the access point. The downtilt angle gain is roughly 30° to 40°. |
| Ultra Tri-Band (UTB) Filtreleme | Yes |
| IoT Desteği | Dual BLE and IEEE 802.15.4/Zigbee Dual USB |
| Dahili Sensör | Barometric sensor |
| Konum Servisleri | 802.11 FTM support GNSS receiver BLE channel sounding |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 2 x 5GbE |
| MACsec Desteği | Yes |
| Portlar | E0, E1: Two Ethernet wired network ports (RJ - 45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, micro - B USB physical jack) |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System 10 |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Wi - Fi Alliance® Wi-Fi CERTIFIED® a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Regülasyonlar | FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-734 kullanım alanları ve özellikleri.
The HPE Aruba Networking 730 Series Campus Access Points go beyond the Wi-Fi 7 standard to improve wireless performance, strengthen network security, deliver precise location-based services, and act as a secure Internet of Things (IoT) platform, enabling enterprises to increase the value of their wireless investment and unlock operational efficiencies.
The 730 series includes unique ultra tri-band (UTB) filtering and dual 5 Gbps Ethernet ports to remove coverage gaps, provide greater resiliency, and deliver fast connectivity with enhanced security. HPE Aruba Networking Central provides intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 730 series includes a limited lifetime warranty.
The HPE Aruba Networking 730 Series Campus Access Points are based on the IEEE 802.11be standard and designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multigigabit traffic, and less interference.
This series delivers up to 9.3 Gbps maximum triband aggregate data rate by using three 2x2 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), and achieving capability of up to 14.4 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
- Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments
- Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate
- Patented ultra tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands
- High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
- High availability with dual 5 Gbps ports for redundant Ethernet and power
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
