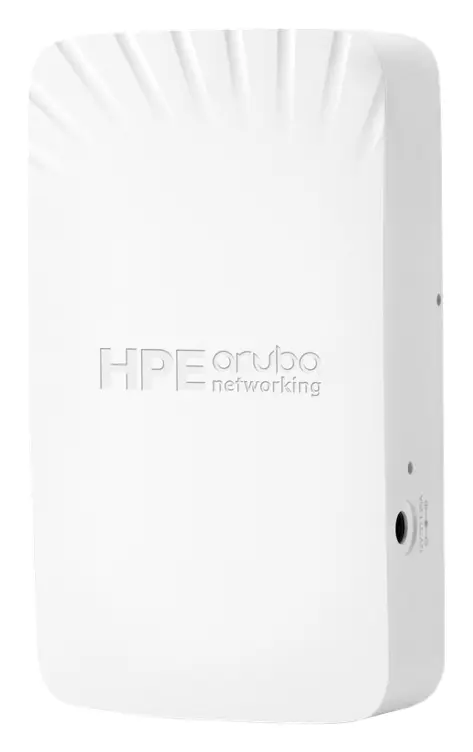

Aruba AP-503H Wi-Fi 6 Duvar Tipi Access Point

ModelAP-503H

Aruba AP-503H duvar tipi access point: Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices, The AP provides supports for OFDMA for enhanced multi-user.

Port sayısı: 45 port
Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without onsite technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Sipariş Kodu (RW / Türkiye)	R3V36A
Bölgesel Sipariş Kodları	R3V44A (EG), S5D82A (ID), R3V42A (IL), R3V40A (JP), R3V36A (RW), R3V38A (US)
Ürün Adı (Üretici)	HPE Aruba Networking AP-503H Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP

Seri Özellikleri 19 satır

Kullanım Alanı	Hospitality Indoor
Wi-Fi Nesli	Wi-Fi 6 (802.11ax)
Wi-Fi Radyoları	Dual 2 x2
Radyo Yapılandırma Seçenekleri	2.4 GHz and 5 GHz
Bant Başına Maks. Bant Genişliği ve Veri Hızı	20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Wi-Fi Anteni	HPE Aruba Networking 500H Series Unified Hospitality Access Points models: AP-503H: Two integrated semi-directional antennas for 2x2 MIMO. Built-in antennas for vertical wall or desk mounted orientation of the AP. AP 505H: Two integrated semi-directional antennas for 2x2 MIMO. Built-in antennas for vertical wall or desk mounted orientation of the AP.
Ultra Tri-Band (UTB) Filtreleme	No
IoT Desteği	AP-503H: IEEE 802.15.4/Zigbee or BLE 5.0 AP-505H: IEEE 802.15.4/Zigbee or BLE 5.0, USB 2.0 type A
Dahili Sensör	No
Konum Servisleri	802.11 FTM support
Hücresel Destek	USB LTE modem (sold separately)
Kablolu Ağ Arayüzü	AP-503H: 3x 1 Gbps Ethernet ports (1x 1 Gbps uplink, 2x 1 Gbps downlink). AP-505H: 5x Ethernet ports (1x 2.5 Gbps uplink, 4x 1 Gbps downlink). It supports PoE out on two ports
MACsec Desteği	No

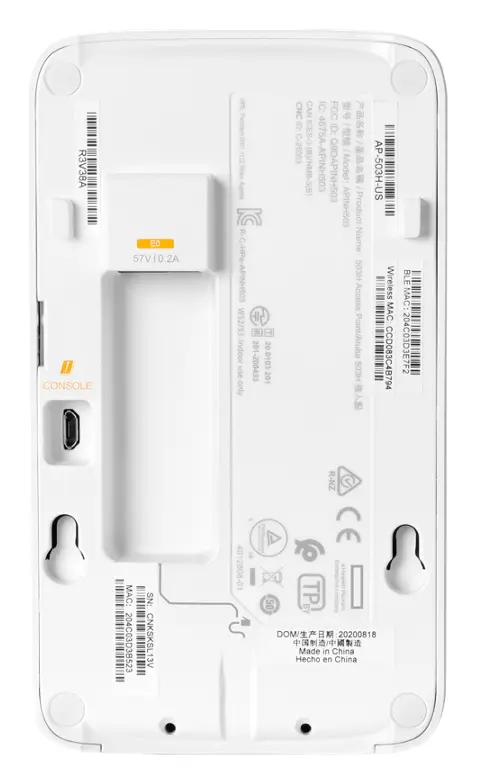

Portlar	USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack); AP-503H: E0: Ethernet wired network port (RJ-45) E1–E2: Ethernet wired network ports (RJ-45); AP-505H: E0: HPE Smart Rate RJ-45 port E1–E4: Ethernet wired network ports (RJ-45)
AP İşletim Sistemi Desteği	HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H)
AP Yönetimi	On-premises Public Cloud Virtual Private Cloud (VPC) as a Service
Sertifikalar	Wi - Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE)
Regülasyonlar	FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative.
Garanti	Limited lifetime warranty.

Genel bakış

Aruba AP-503H kullanım alanları ve özellikleri.

HPE Aruba Networking 500H Series Hospitality Access Points deliver costeffective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers.

The 500H series is Wi-Fi CERTIFIED® and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected

Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited

Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without onsite technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking 500H Series Unified Hospitality Access PointsPDF · AP-503H

Sık sorulanlar

AP-503H hakkında kısa yanıtlar.

AP-503H fiyatı ne kadar?

AP-503H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
