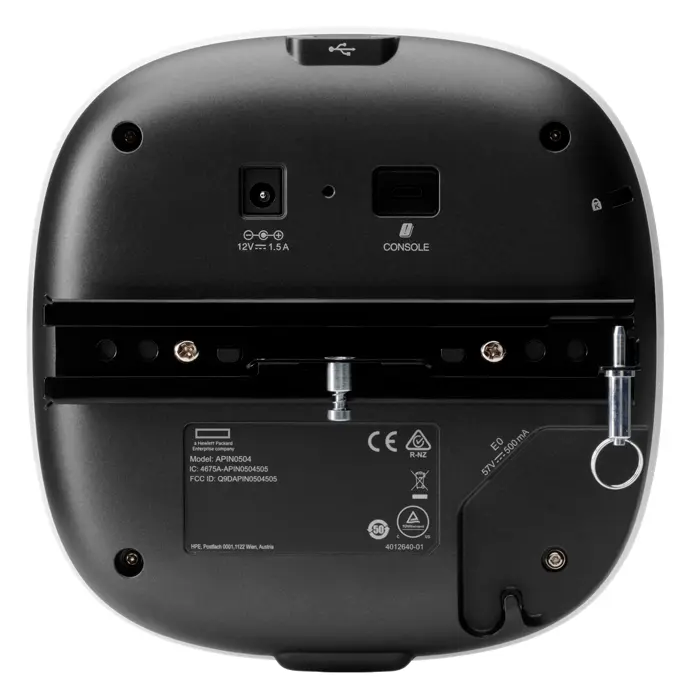

Aruba AP-504 Wi-Fi 6 Harici Anten Access Point
Model
AP-504Aruba AP-504 access point: Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate, Support for orthogonal frequencydivision multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security, IoT-ready with bui.
- Kablosuz standart
- Wi-Fi 6
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
- Support for orthogonal frequencydivision multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
- IoT-ready with built-in Bluetooth 5 and Zigbee support
- Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent
- Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
- Available in optional eco-friendly 10-packs
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | R2H22A |
|---|---|
| Bölgesel Sipariş Kodları | R2H19A (EG), R2H20A (IL), R2H21A (JP), R2H22A (RW), R2H23A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-504 Dual Radio 2x2 802.11ax External Antennas Unified Campus AP |
Seri Özellikleri 19 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 6 (802.11ax) |
| Wi-Fi Radyoları | Dual 2x2 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz and 5 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 500 Series Campus Access Points models: AP-504: Two RP-SMA connectors for external dual-band antennas. AP-505: Two integrated dual-band downtilt omnidirectional antennas for 2x2 MIMO. Built-in antennas for horizontal ceiling-mounted orientation of the access point. The downtilt angle gain is roughly 30°. |
| Ultra Tri-Band (UTB) Filtreleme | No |
| IoT Desteği | IEEE 802.15.4/Zigbee or Bluetooth 5, USB 2.0 Type A |
| Dahili Sensör | No |
| Konum Servisleri | 802.11 FTM support |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 1 x 1GbE |
| MACsec Desteği | No |
| Portlar | E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot. |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Wi - Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4) |
| Regülasyonlar | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2; Railway Certs (AP-505 only): EN 50155:2017 —Railway Applications EN 50121-1:2017 —Railway EMC EN 50121-3-2 —Railway EMC EN 50121-4:2016 —Railway Immunity IEC 61373 ed2:2008 —Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-504 kullanım alanları ve özellikleri.
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control.
The 500 series is Wi-Fi CERTIFIED® and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a
HPE Aruba Networking 500 Series Campus Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium-density environments.
- Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
- Support for orthogonal frequencydivision multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
- IoT-ready with built-in Bluetooth 5 and Zigbee support
- Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent
- Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
- Available in optional eco-friendly 10-packs
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-504 hakkında kısa yanıtlar.
AP-504 fiyatı ne kadar?
AP-504 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, AP-504 için fiyat ve teslim süresini iletelim.
