Aruba
R7H97A
Aruba

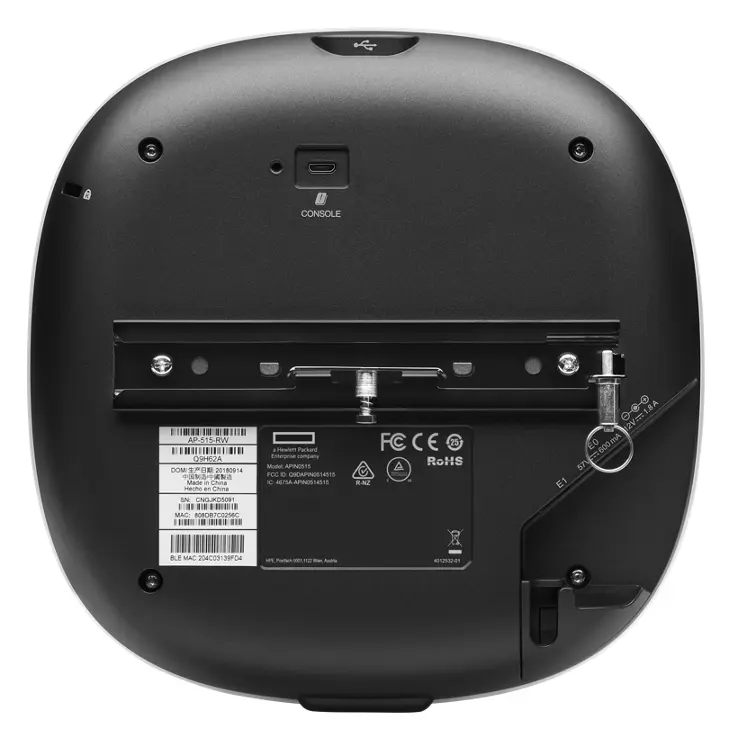

Aruba AP-515 Wi-Fi 6 Dahili Anten Access Point
Model
AP-515Aruba AP-515 access point: Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate, The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security, IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5.
- Kablosuz standart
- Wi-Fi 6
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
- The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
- IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
- It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
- Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
- It is offered in optional eco-friendly 10-packs
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | Q9H62A |
|---|---|
| Bölgesel Sipariş Kodları | Q9H59A (EG), S5D86A (ID), Q9H60A (IL), Q9H61A (JP), Q9H62A (RW), S3J29A (RW), Q9H63A (US), S3J30A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-515 Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP |
Seri Özellikleri 19 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 6 (802.11ax) |
| Wi-Fi Radyoları | 2x2:2 (2.4 GHz), 4x4:4 (5 GHz) |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz, 5 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 510 Series Campus Access Points models: AP-514: Four (female) RP-SMA connectors for external dual-band antennas AP-515: Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO (2x2 MIMO for 2.4 GHz) MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle gain is roughly 30°. |
| Ultra Tri-Band (UTB) Filtreleme | No |
| IoT Desteği | Bluetooth 5 and Zigbee (802.15.4) radio (2.4 GHz), USB 2.0 |
| Dahili Sensör | No |
| Konum Servisleri | 802.11 FTM support |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 1 x 2.5GbE, 1 x 1GbE |
| MACsec Desteği | No |
| Portlar | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Bluetooth SIG Wi - Fi Alliance®: Wi - Fi CERTIFIED® a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Regülasyonlar | FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs (AP-515 only): EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-515 kullanım alanları ve özellikleri.
The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance WiFi CERTIFIED® for medium density campus environments.
The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).
The 510 series supports Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
- Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
- The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
- IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
- It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
- Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
- It is offered in optional eco-friendly 10-packs
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-515 hakkında kısa yanıtlar.
AP-515 fiyatı ne kadar?
AP-515 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, AP-515 için fiyat ve teslim süresini iletelim.
