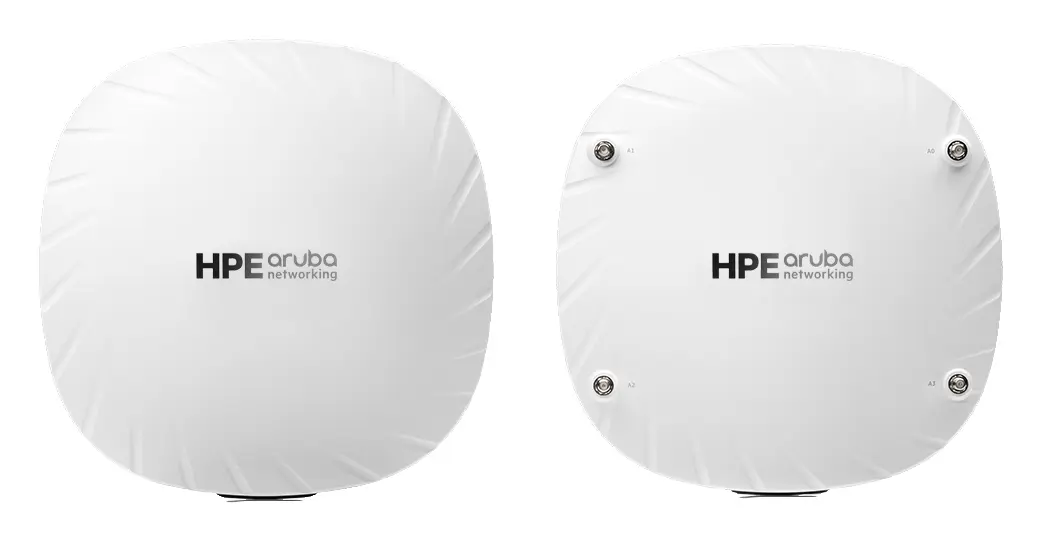

Aruba AP-535 Wi-Fi 6 Dahili Anten Access Point

ModelAP-535

Aruba AP-535 access point: Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate, Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO), Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 3 satır

Sipariş Kodu (RW / Türkiye)	JZ336A
Bölgesel Sipariş Kodları	JZ333A (EG), S5D87A (ID), JZ334A (IL), JZ335A (JP), JZ336A (RW), JZ337A (US)
Ürün Adı (Üretici)	HPE Aruba Networking AP-535 Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP

Seri Özellikleri 19 satır

Kullanım Alanı	Indoor
Wi-Fi Nesli	Wi-Fi 6 (802.11ax)
Wi-Fi Radyoları	Dual 4x4
Radyo Yapılandırma Seçenekleri	2.4 GHz and 5 GHz
Bant Başına Maks. Bant Genişliği ve Veri Hızı	20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
Wi-Fi Anteni	HPE Aruba Networking 530 Series Campus Access Points models: AP-534: Four (female) RP-SMA connectors for external dual-band antennas. AP-535: Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO. Built-in antennas for horizontal ceiling-mounted orientation of the AP. The downtilt angle gain is roughly 30°.
Ultra Tri-Band (UTB) Filtreleme	No
IoT Desteği	IEEE 802.15.4/Zigbee or Bluetooth 5.0, USB 2.0 Type A
Dahili Sensör	No
Konum Servisleri	802.11 FTM support
Hücresel Destek	USB LTE modem (sold separately)
Kablolu Ağ Arayüzü	2 x 5GbE
MACsec Desteği	No
Portlar	E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
AP İşletim Sistemi Desteği	HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
AP Yönetimi	On-premises Public Cloud Virtual Private Cloud (VPC) as a Service
Sertifikalar	UL2043 plenum rating Wi - Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)
Regülasyonlar	FCC/ISED CE marked Radio Equipment Directive (RED) Directive 2014/53/EU Electromagnetic compatibility (EMC) Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway certs (AP-535 Only): EN 50155:2017—Railway applications EN 50121-1:2017—Railway EMC EN 50121-3-2—Railway EMC EN 50121-4:2016—Railway immunity IEC 61373 ed2:2008—Railway shock and vibration. For more country-specific regulatory information and approvals, contact your HPE representative.
Garanti	Limited lifetime warranty.

Genel bakış

Aruba AP-535 kullanım alanları ve özellikleri.

The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.

The 530 series can be deployed using zero touch provisioning (ZTP) without onsite technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AIpowered analytics, endtoend orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime

The HPE Aruba Networking 530 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types providing up to 2.97 Gbps combined aggregate data rate.

Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking 530 Series Campus Access PointsPDF · AP-535

Sık sorulanlar

AP-535 hakkında kısa yanıtlar.

AP-535 fiyatı ne kadar?

AP-535 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
