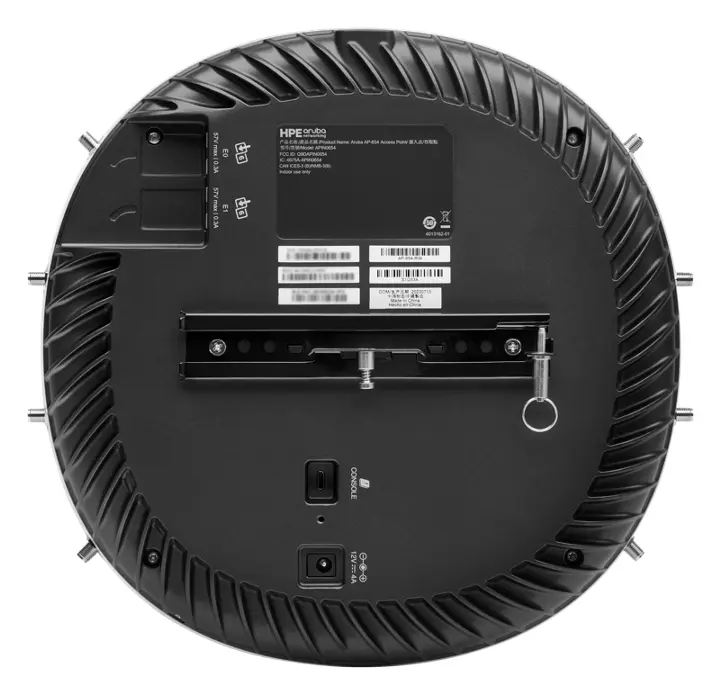

Aruba AP-654 Wi-Fi 6E Harici Anten Access Point
Model
AP-654Aruba AP-654 access point: Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate, 4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-divi.
- Kablosuz standart
- Wi-Fi 6E
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
- 4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
- Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
- High availability with dual 5 Gbps wired
- Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
- IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S1G53A |
|---|---|
| Bölgesel Sipariş Kodları | S1G53A (RW), S1G54A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-654 Tri Radio 4x4 Wi-Fi 6E External Antennas Campus AP |
Seri Özellikleri 18 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 6E (802.11ax with 6 GHz) |
| Wi-Fi Radyoları | 4x4:4 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz, 5 GHz and 6 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 650 Series Campus Access Points models: AP-654: Two sets of four (female) RP-SMA connectors for external antennas. AP-655: Integrated downtilt omnidirectional antennas for 4x4 MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the access point. The downtilt angle gain is roughly 30° to 40°. |
| Ultra Tri-Band (UTB) Filtreleme | Yes |
| IoT Desteği | Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio, USB 2.0 host interface (Type A connector) |
| Dahili Sensör | No |
| Konum Servisleri | 802.11 FTM support GNSS receiver |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 2 x 5 Gbps |
| MACsec Desteği | No |
| Portlar | Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack) |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Wi - Fi Alliance® Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Regülasyonlar | FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-2; For country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-654 kullanım alanları ve özellikleri.
The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these highperformance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate.
The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry
applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.
The HPE Aruba Networking 650 Series Campus Access Points, based on the 802.11ax standard, take advantage of the 6 GHz band through three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), delivering up to 7.8 Gbps maximum tri-band aggregate data rate.
- Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
- 4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
- Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
- High availability with dual 5 Gbps wired
- Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
- IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-654 hakkında kısa yanıtlar.
AP-654 fiyatı ne kadar?
AP-654 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, AP-654 için fiyat ve teslim süresini iletelim.
