Aruba

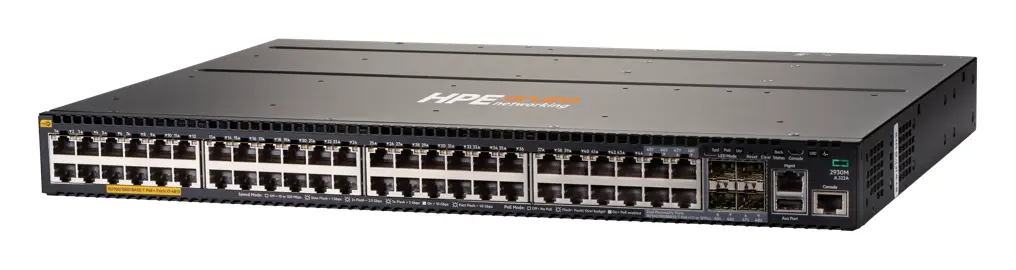

Aruba JL322A 2930M 48G PoE+ 1-slot PoE Switch

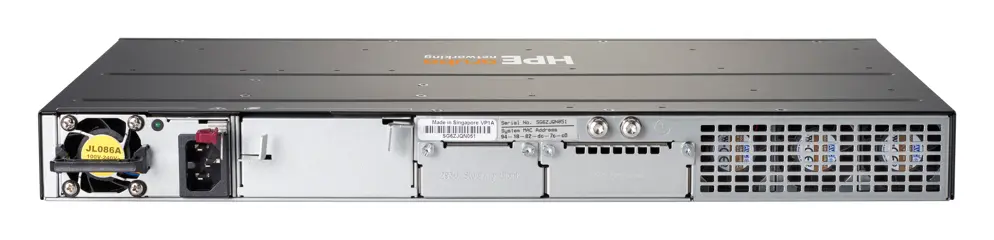

Aruba JL322A 2930M 48G PoE+ 1-slot PoE Switch — görsel 2
1 / 2
PoE Switch 2930M

Aruba JL322A 2930M 48G PoE+ 1-slot PoE Switch

ModelJL322A

Aruba JL322A, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler.

Port hızı
Gigabit
PoE
PoE
Port sayısı
48 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
  • Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
  • Scale with modular 10 chassis stacking and up to 1440W PoE.
  • Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
  • Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
  • High Power PoE models deliver up to 60W of PoE per port.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır
Ürün Adı (Üretici)HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch
Teknik Özellikler 10 satır
Model FarkıPowerful and flexible 1U 48-port PoE+ access switch supporting up to 1440W of PoE. This model has 48x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This model does support PoE/PoE+ with a Power over Ethernet budget of up to 1440 Watts based on selected power supplies.
Güç Tüketimi2 power supplies are supported: JL086A PSU (each): 470W JL087A PSU (each): 860W
Isı Yayılımı355 BTU/hr (375 kJ/hr)
Giriş Gerilimi100 - 127 / 200 - 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply
Portlar(44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot
Anahtarlama Kapasitesi176 Gbps
Bellek ve İşlemciDual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC
Güç KaynağıJL086A X372 54VDC 680W 100-240VAC Power Supply, JL087A X372 54VDC 1050W 110-240VAC Power Supply
PoE KapasitesiMaximum power rating: JL086A PSU (each): 470W JL087A PSU (each): 860W
Yönetim ÖzellikleriHPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Seri Özellikleri 3 satır
Gecikme1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Veri Hızı112 Mpps maximum, depending on model and configuration
GarantiLimited lifetime warranty.

Genel bakış

Aruba JL322A kullanım alanları ve özellikleri.

The HPE Aruba Networking 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The HPE Aruba Networking 2930M Switch Series delivers performance and value with support for static, RIP and Access OSPF routing, 10 GbE and 40 GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

The HPE Aruba Networking 2930M Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.

Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Dynamic Segmentation, sFlow, IPv6 with no software licensing required.

Modular stacking (10 chassis) and modular 10 GbE (SFP+) and 40 GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet models support high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE is needed.

  • The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
  • Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
  • Scale with modular 10 chassis stacking and up to 1440W PoE.
  • Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
  • Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
  • High Power PoE models deliver up to 60W of PoE per port.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking 2930M Switch SeriesPDF · JL322A

Sık sorulanlar

JL322A hakkında kısa yanıtlar.

JL322A IP kamera beslemek için uygun mu?
Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.
JL322A kaç portlu?
JL322A 48 porta sahiptir.
JL322A fiyatı ne kadar?
JL322A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, JL322A için fiyat ve teslim süresini iletelim.
