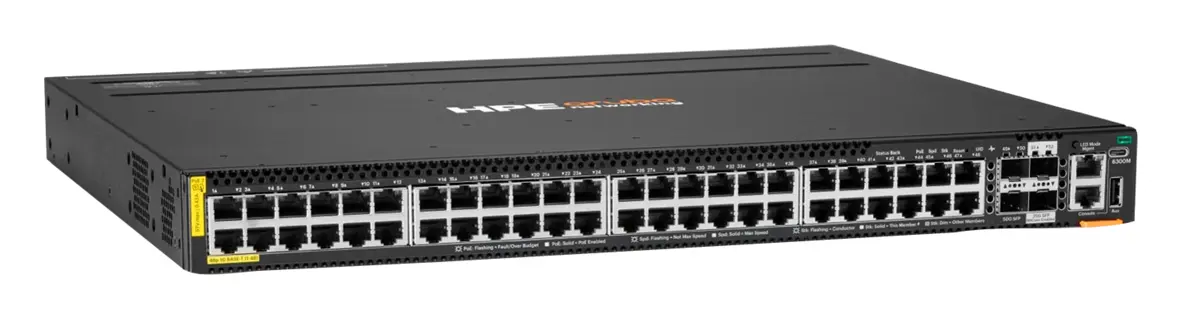

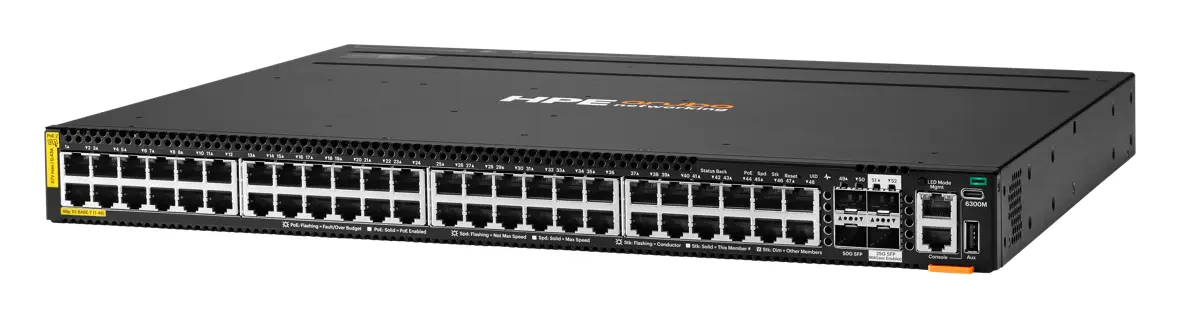

Aruba S6X59A CX6300M 48p 1G Class8 PoE 2p SFP56 50G 2p SFP28 25G MACsec PoE Switch

ModelS6X59A

Aruba S6X59A gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 370 W.

Port hızı: Gigabit
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX6300M 48p 1G Class8 PoE 2p SFP56 50G 2p SFP28 25G MACsec Switch

Teknik Özellikler 14 satır

Güç Tüketimi	Up to 211W depending on model
Giriş Gerilimi	Maximum 120V/208V–240V depending on PSU model
Portlar	48x of 1G Copper ports
Gecikme	Depending on model
Anahtarlama Kapasitesi	From to 880 Gbps to 1760 Gbps, depending on model and configuration
İstifleme (Stack)	Up to 10 members per stack.; Note: CX 6300L switches only stack with other CX 6300L switches
Veri Hızı	From to 660 Mpps to 1310 Mpps, depending on model and configuration
Bellek ve İşlemci	CPU: Dual-core Arm® Cortex®-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration

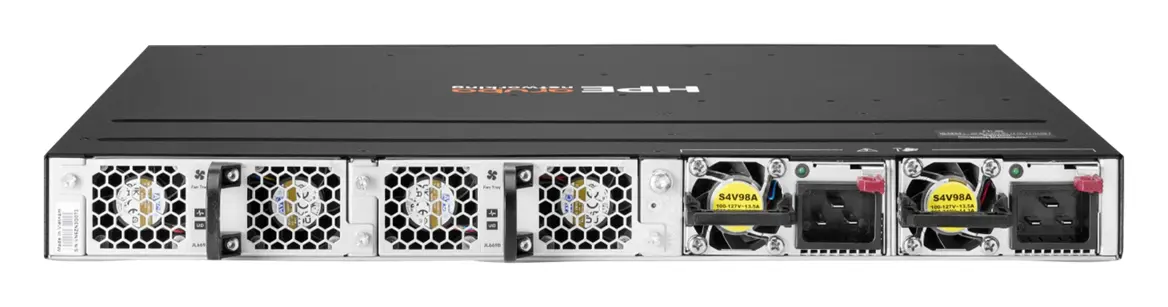

Güç Kaynağı	2 fieldreplaceable, hotswappable power supply slots
PoE Kapasitesi	Maximum PoE power: Up to 370W, 720W, 1440W, 2640W, or 2880W, depending on model and installed power supplies
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate 1°C for every 1,000 ft from 50,00 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time .
Yönetim Özellikleri	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Garanti	Limited lifetime warranty.
Fanlar	Switch has two fan tray slots and comes with two JL669B fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hotswappable. Each fan tray contains two fans.

Seri Özellikleri 2 satır

Sevkiyat Ağırlığı	13.27 lbs, maximum, depending on model
Sevkiyat Boyutları	1.73 x 17.4 x 15.2 in, maximum, depending on model

Genel bakış

Aruba S6X59A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations.

A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

The HPE Aruba Networking CX 6300 Switch Series is a wire-speed solution that uses a fully distributed architecture with Gen7 ASICs that deliver low latency, increased packet buffering, and intelligent power consumption for AI, Wi- Fi 7, and Internet of Things (IoT) requirements.

HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using highperformance front-plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100GbE for a total of 200 to 400 Gbps of stacking throughput per switch.

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Networking CX6300 Switch SeriesPDF · S6X59A

Sık sorulanlar

S6X59A hakkında kısa yanıtlar.

S6X59A IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 370 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

S6X59A fiyatı ne kadar?

S6X59A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
