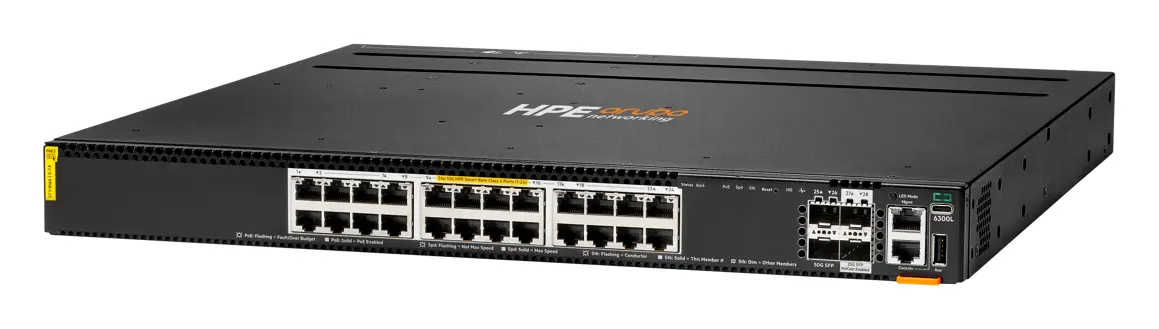

Aruba S3L75A CX6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 PoE Switch

ModelS3L75A

Aruba S3L75A gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 2880 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX6300L 24p Smart Rate 1G/2.5G/5G/10G CL6 2p SFP56 50G 2p SFP28 25G L2 Switch

Teknik Özellikler 15 satır

Model Farkı	Layer 2 only L switch does not support Layer 3 features in the F and M models Non-PoE
Güç Tüketimi	With JL086A PSU: Hibernation (0 rpm fan): 37W Idle: 90W 100% Traffic Rate: 143W With JL087A PSU: Hibernation (0 rpm fan):41W Idle: 90W 100% Traffic Rate: 140W With JL670A PSU: Hibernation (0 rpm fan): 35W Idle: 101W 100% Traffic Rate: 152W
Giriş Gerilimi	JL670A PSU: 110V–120V/208V–240V JL086A PSU: 100V–240V JL087A PSU: 110V–240V
Portlar	24x HPE Smart Rate 100M /1G/2.5G/5G BaseT Class 6 PoE ports supporting up to 60W per port 4x 1G/10G/25G/50G SFP ports Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C console port 1x USB Type-A host port 1x OOBM port 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which require QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M swi
Gecikme	1 Gbps: 4.24 s 10 Gbps: 1.50 s 25 Gbps: 2.91 s 50 Gbps: 3.49 s
Anahtarlama Kapasitesi	780 Gbps
İstifleme (Stack)	Note: CX 6300L switches only stack with other CX 6300L switches
Veri Hızı	580 Mpps
Bellek ve İşlemci	Quad Core Arm® Cortex® A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC 16 MB Shared Packet Buffer Memory
Güç Kaynağı	2 fieldreplaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A.
PoE Kapasitesi	Maximum PoE power:2880W
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5000 ft. Derate 1°C for every 1000 ft from 5000 ft to 10000 ft.
Yönetim Özellikleri	1 default VRF, 1 management VRF
Garanti	Limited lifetime warranty.

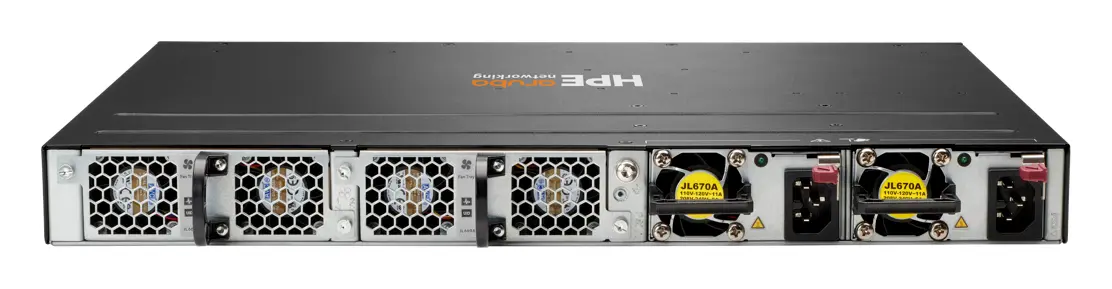

Fanlar	Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hotswappable. Each fan tray contains two fans.

Seri Özellikleri 2 satır

Sevkiyat Ağırlığı	13.27 lbs, maximum, depending on model
Sevkiyat Boyutları	1.73 x 17.4 x 15.2 in, maximum, depending on model

Genel bakış

Aruba S3L75A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations.

A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

The HPE Aruba Networking CX 6300 Switch Series is a wire-speed solution that uses a fully distributed architecture with Gen7 ASICs that deliver low latency, increased packet buffering, and intelligent power consumption for AI, Wi- Fi 7, and Internet of Things (IoT) requirements.

HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using highperformance front-plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100GbE for a total of 200 to 400 Gbps of stacking throughput per switch.

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Networking CX6300 Switch SeriesPDF · S3L75A

Sık sorulanlar

S3L75A hakkında kısa yanıtlar.

S3L75A IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 2880 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.
