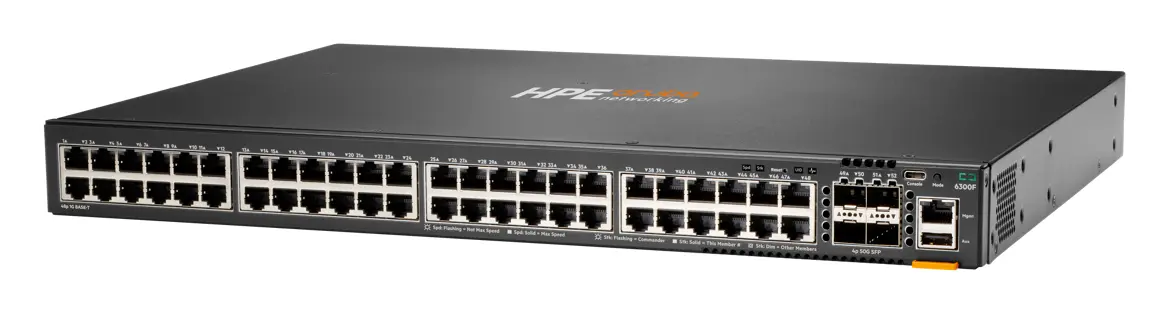

Aruba JL667A CX6300F 48-port 1GbE and 4-port SFP56 Yönetilebilir Switch

ModelJL667A

Aruba JL667A, 48 portlu gigabit bir yönetilebilir switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 370 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX6300F 48-port 1GbE and 4-port SFP56 Switch

Teknik Özellikler 12 satır

Model Farkı	Non-PoE
Güç Tüketimi	Idle: 52W 100% Traffic Rate: 74W
Giriş Gerilimi	Fixed PSU: 100V–120V/200V–240V
Portlar	48 x 10/100/1000 BaseT ports 4 x 1G/10G/25G/50G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port
Anahtarlama Kapasitesi	496 Gbps
İstifleme (Stack)	Note: CX 6300L switches only stack with other CX 6300L switches
Veri Hızı	369 Mpps
Bellek ve İşlemci	CPU: Dual-core Arm® Cortex®-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Güç Kaynağı	Internal (fixed) power supply (200W)
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate 1°C for every 1,000 ft from 50,00 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time .
Yönetim Özellikleri	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Garanti	Limited lifetime warranty.

Seri Özellikleri 5 satır

Gecikme	Depending on model
PoE Kapasitesi	Maximum PoE power: Up to 370W, 720W, 1440W, 2640W, or 2880W, depending on model and installed power supplies
Sevkiyat Ağırlığı	13.27 lbs, maximum, depending on model
Sevkiyat Boyutları	1.73 x 17.4 x 15.2 in, maximum, depending on model
Fanlar	The switch has two fan tray slots and comes with one or two fan trays installed depending on the model. Fan trays are field replaceable and hot - swappable. Each fan tray contains two fans.; Features not supported on CX 6300L switches (S3L75A, S3L76A, S3L77A) The simultaneous use of HPE Aruba Networking Virtual Switching Framework stacking and its cluster is not supported. A switch may either be its member or an HPE Aruba Networking Virtual Switching Extension cluster. No more than 96 consecutiv

Genel bakış

Aruba JL667A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations.

A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

The HPE Aruba Networking CX 6300 Switch Series is a wire-speed solution that uses a fully distributed architecture with Gen7 ASICs that deliver low latency, increased packet buffering, and intelligent power consumption for AI, Wi- Fi 7, and Internet of Things (IoT) requirements.

HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using highperformance front-plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100GbE for a total of 200 to 400 Gbps of stacking throughput per switch.

The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for highperformance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.3bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through a single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Networking CX6300 Switch SeriesPDF · JL667A

Sık sorulanlar

JL667A hakkında kısa yanıtlar.

JL667A IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 370 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

JL667A kaç portlu?

JL667A 48 porta sahiptir.

JL667A fiyatı ne kadar?

JL667A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
