PoE Switch 2930F

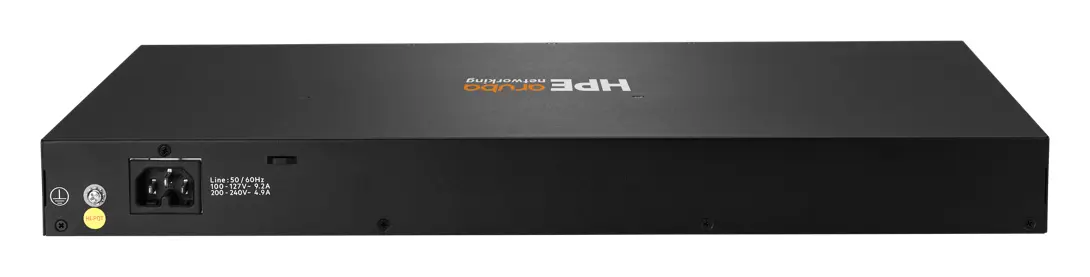

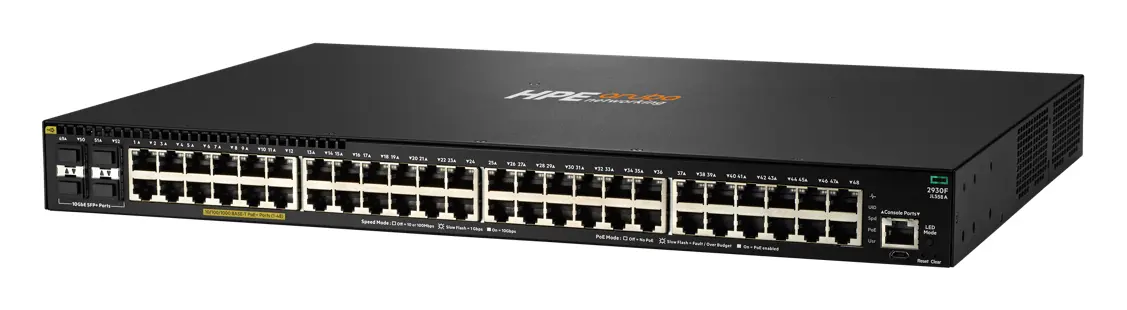

Aruba JL558A 2930F 48G PoE+ 4SFP+ 740W PoE Switch

ModelJL558A

Aruba JL558A, 52 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler. 4 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı
Gigabit
PoE
PoE
Port sayısı
52 port
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Distribütör garantili
81 ile sevkiyat
Teknik destek
  • The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
  • Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
  • Scale with 8-member stacking

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır
Ürün Adı (Üretici)HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch
Teknik Özellikler 12 satır
Model FarkıPopular 52-port Gig + 10G access switch with highpower 740W PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740W.
Güç Tüketimi980W (maximum)
Isı Yayılımı420.9 BTU/hr (444.1 kJ/hr)
Giriş Gerilimi100–127/200–240 VAC, rated
Portlar48x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP+ 1/10GbE ports PHY-less
Gecikme1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Anahtarlama Kapasitesi176 Gbps
Veri HızıUp to 112 Mpps
Bellek ve İşlemciDual Core Arm® Cortex® A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
PoE Kapasitesi740W PoE+
Yönetim ÖzellikleriHPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
GarantiLimited lifetime warranty.

Genel bakış

Aruba JL558A kullanım alanları ve özellikleri.

The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.

Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow®, IPv6 with no software licensing required.

Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.

  • The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
  • Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
  • Scale with 8-member stacking

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Sık sorulanlar

JL558A hakkında kısa yanıtlar.

JL558A IP kamera beslemek için uygun mu?
Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.
JL558A kaç portlu?
JL558A 52 porta sahiptir ve 4 adet SFP uplink portu bulunur.
JL558A fiyatı ne kadar?
JL558A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
