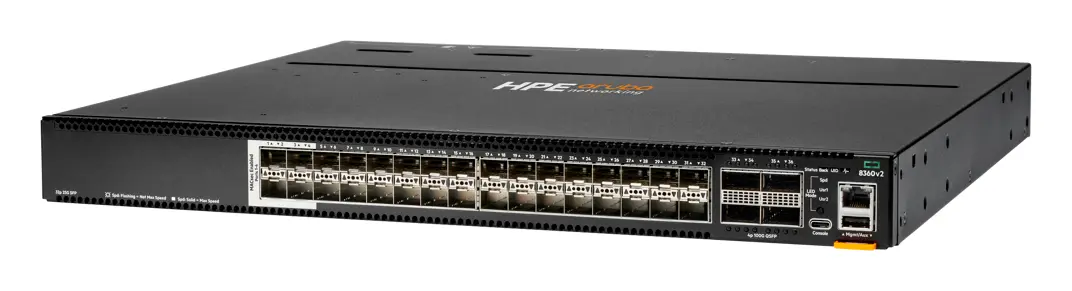

Aruba JL717C CX8360-32Y4C v2 32-port 25G SFP/SFP+/SFP28 4 Sec 4-port 100G QSFP+/QSFP28 Veri Merkezi Switch

ModelJL717C

Aruba JL717C, 32 portlu bir yönetilebilir switch'tir. Öne çıkan özellikleri: 48-port 1/10/25g with 4 macsec, 6-port of 40/100g with 2 macsec (macsec secured connectivity over untrusted domains), high performance fully distributed architecture provides up to 4.8 tbps switching and 1786 mpps for forwarding, intelligent monitoring and visibility are delivered by the hpe aruba networking cx network analytics engine (nae), high availability with industry-leading.

Port hızı: 10G uplink
PoE: PoE yok
Port sayısı: 32 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX8360-32Y4C v2 32-port 25G SFP/SFP+/SFP28 4 Sec 4-port 100G QSFP+/QSFP28 Switch

Teknik Özellikler 12 satır

Model Farkı	Base unit spares (fans, PS not included)
Güç Tüketimi	Maximum: 425W Idle: 120W
Isı Yayılımı	1,450 BTU/hr
Giriş Gerilimi	7.1A 100–127 VAC 3.4A 200–240 VAC
Portlar	28-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE QSFP+/QSFP28 (optional 1GBASE-T SFP, 10GBASE-T SFP+ transceivers and 4 x 10/25G breakout cables supported)
Anahtarlama Kapasitesi	2.4 Tbps
Veri Hızı	1309 Mpps depending on the model
Bellek ve İşlemci	CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Güç Kaynağı	2 field-replaceable and hot-swappable power supplies depending on the model
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5000 ft
Yönetim Özellikleri	RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Garanti / Fanlar	Limited lifetime warranty. 3 field-replaceable and hot-swappable fans

Seri Özellikleri 2 satır

Garanti	Limited lifetime warranty.
Fanlar	3 field-replaceable and hot-swappable fans

Genel bakış

Aruba JL717C kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 8360 v2 Switch Series is designed for nextgeneration core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor.

These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.

HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.

It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.

48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 8360 v2 Switch SeriesPDF · JL717C

Sık sorulanlar

JL717C hakkında kısa yanıtlar.

JL717C kaç portlu?

JL717C 32 porta sahiptir.

JL717C fiyatı ne kadar?

JL717C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
