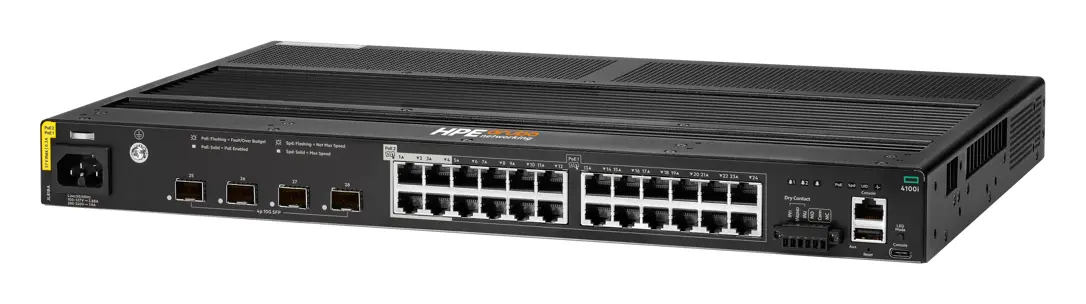

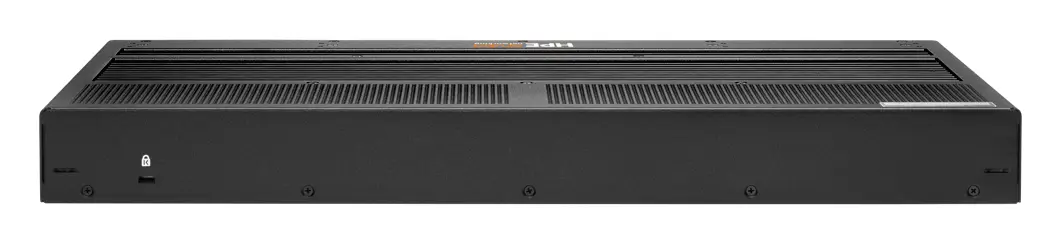

Aruba JL818A CX4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+ Endüstriyel Switch

ModelJL818A

Aruba JL818A bir endüstriyel switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler.

Port hızı: 10G uplink
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Layer 2 feature set with static routing and no switch software licensing required.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Management flexibility with support for HPE Aruba Networking Central, easyto-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+ Switch

Teknik Özellikler 9 satır

Model Farkı	20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 4 x 1/10G SFP ports
Güç Tüketimi	Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W Note: Heater will only turn on at extreme low temperature condition.
Isı Yayılımı	117 BTU/hr at 230V - Room temperature (25°C)
Giriş Gerilimi	100V-240V
Portlar	4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port 20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 4 x 1G/10G SFP ports; 1 x USB-C console port 1 x RJ45 console 1 x USB Type-A host port 1 x Alarm socket
Gecikme	1 Gbps: 1.585 Sec , 10 Gbps: 1.243 Sec; Average Latency (LIFO-64-bytes packets)
Güç Kaynağı	Fixed internal power supply (300W) 240W of PoE Power (no de-rating)
PoE Kapasitesi	240W no derating
Yönetim Özellikleri	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

Seri Özellikleri 6 satır

Anahtarlama Kapasitesi	Up to 128 Gbps depending on the model
İstifleme (Stack)	No stacking capability
Veri Hızı	Up to 95 Mpps depending on the model
Bellek ve İşlemci	CPU: Dual Core Arm® Cortex-A9 @ 1016 MHz Memory and flash: 4 GB DDR3 32 GB eMMC
Çalışma Sıcaklığı	-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
Garanti	5-year warranty

Genel bakış

Aruba JL818A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.

Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i series also simplifies ownership with no switch software licensing requirements.

The HPE Aruba Networking CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.

Uses the HPE Aruba Networking CX Switch Operating System (AOS-CX) for a simpler, more consistent operator experience with capabilities fit for ruggedized access.

Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Layer 2 feature set with static routing and no switch software licensing required.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Management flexibility with support for HPE Aruba Networking Central, easyto-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 4100i Switch SeriesPDF · JL818A

Sık sorulanlar

JL818A hakkında kısa yanıtlar.

JL818A IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.

JL818A fiyatı ne kadar?

JL818A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
