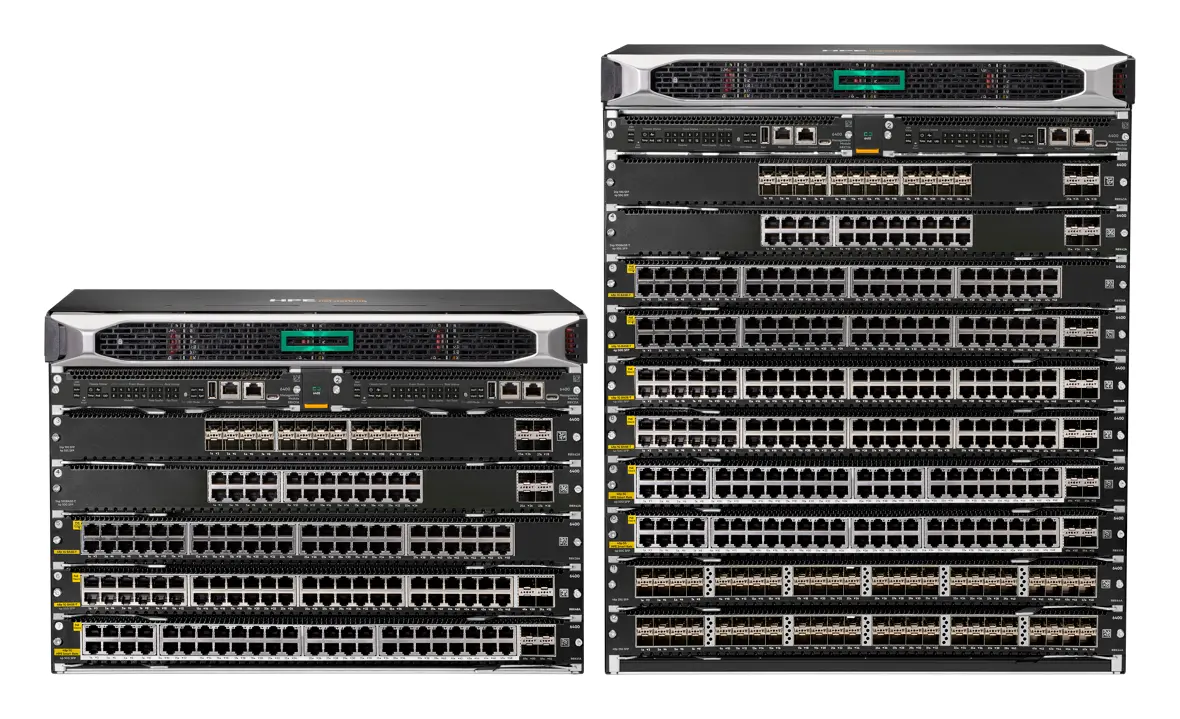

Aruba R0X27C CX6410 v2 Omurga Switch

ModelR0X27C

Aruba R0X27C gigabit bir yönetilebilir switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler.

Port hızı: Gigabit
PoE: PoE

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High-performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security, MACsec encryption, and QoS while delivering up to 28 Tbps in nonblocking bandwidth
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) and redundant power supplies and fans
Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
High-speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with intelligent monitoring, visibility and remediation with the HPE Aruba Networking CX Network Analytics Engine
Manage through single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
Dynamic segmentation enables enhanced security and simple access for users and Internet of Things (IoT) and leverages TLS-encrypted traffic analytics

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX6410 v2 Switch

Teknik Özellikler 9 satır

Model Farkı	1 x 6410 v2 chassis (R0X25C) 1 x management module (R0X31A) 4 x fan trays (R0X32A); 10 open module slots Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C, S0E48A, S1T83A
Güç Tüketimi	R0X35A PSU: 1800W at 200–240 VAC, 1100W at 110–127 VAC R0X36A PSU: 3000W at 200–240 VAC, 1500W at 110–127 VAC
Portlar	High speed, non-blocking 1/10/25/40/50/100GbE ports 10 I/O module slots maximum depending on model
Anahtarlama Kapasitesi	28 Tbps
Bellek ve İşlemci	CPU Management Module: Quad-core Arm® Cortex™ A72 at 1.8 GHz Line Cards: Dual-core Arm® Cortex™ A72 at 1.8 GHz (R0X38AR0X45A and R0X38BR0X40B) Line Cards: Quad-core Arm® Cortex™ A72 at 1.8 GHz (R0X38CR0X45C, S0E48A, S1T83A); Memory and flash Management Module: 16 GB DDR4 ECC memory: 32 GB eMMC Flash memory Line Cards: 4 GB DDR4 memory (R0X38AR0X45A and R0X38BR0X40B) Line Cards: 8 GB DDR4 memory (R0X38CR0X45C, S0E48A, S1T83A)
Güç Kaynağı	Power supply units are not included; order separately. Supports four modular frontserviceable power supplies with removable rearserviceable power cord inlet adapters. Supported power supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
PoE Kapasitesi	Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 90W)
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C derating per 1,000 feet above 5,000 feet
Fanlar	Four field replaceable system fan trays

Seri Özellikleri 6 satır

Giriş Gerilimi	R0X35A and R0X36A PSUs: 110–127/200–240 VAC
Gecikme	1G: 5.32 μ Sec 10G: 1.48 μ Sec 25G: 2.78 μ Sec 40G: 1.31 μ Sec 100G: 1.42 μ Sec
İstifleme (Stack)	Yes
Veri Hızı	Up to 20 Bpps, depending on model and configuration
Yönetim Özellikleri	1 x RJ - 45 console port 1 x USB - C console port 1 x OOBM port 1 x USB Type-A host port; HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking CX Mobile App Command-line interface SNMP v2c/v3 RMON
Garanti	Limited lifetime warranty.

Genel bakış

Aruba R0X27C kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 6400 Switch Series is a modern, flexible, and intelligent family of modular switches ideal for enterprise campus and data center deployments. With a cloud-native design that combines a fully programmable OS with HPE Aruba Networking CX Network Analytics Engine, the CX 6400 series extends industry-leading monitoring and troubleshooting across the network.

Powerful Gen7 ASIC architecture delivers fast, future-ready non-blocking performance. HPE Aruba Networking Virtual Switching Extension (VSX) brings high availability and enables fast, uninterrupted upgrades. Support for HPE Aruba Networking Switch Multi-Edit Software and the HPE Aruba Networking CX Mobile App validates configurations and simplify deployment. This series offers 5 and 10-slot compact chassis, a choice of line rate interfaces including

25GbE, 100GbE, and full-density 60W Power over Ethernet (PoE) with HPE Smart Rate multi-gigabit Ethernet ideal for access, aggregation and core deployments.

The CX 6400 series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The HPE Aruba Networking CX Network Analytics Engine automatically interrogates and analyzes events that can impact network health.

High-performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security, MACsec encryption, and QoS while delivering up to 28 Tbps in nonblocking bandwidth
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) and redundant power supplies and fans
Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
High-speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with intelligent monitoring, visibility and remediation with the HPE Aruba Networking CX Network Analytics Engine
Manage through single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
Dynamic segmentation enables enhanced security and simple access for users and Internet of Things (IoT) and leverages TLS-encrypted traffic analytics

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 6400 Switch SeriesPDF · R0X27C

Sık sorulanlar

R0X27C hakkında kısa yanıtlar.

R0X27C IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler. Toplam kamera tüketiminin switch'in PoE bütçesini aşmaması gerekir.

R0X27C fiyatı ne kadar?

R0X27C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
