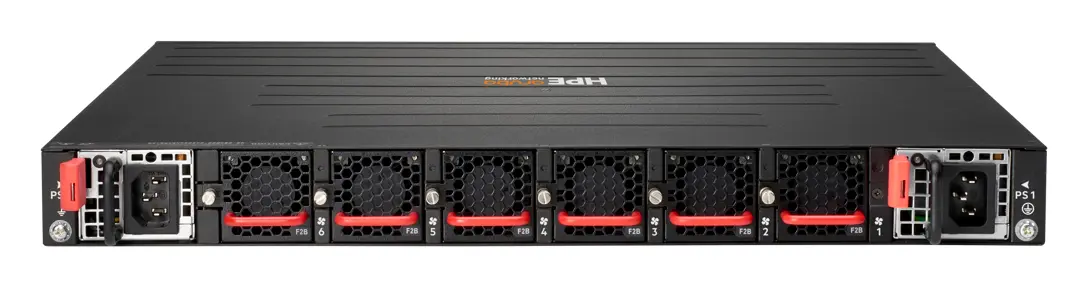

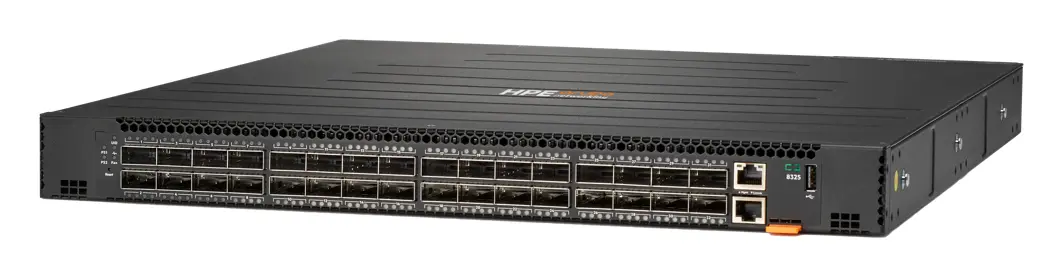

Aruba R9F66A CX8325-32C Port-to-Power Airflow 6xFan 2xPSU Veri Merkezi Switch

ModelR9F66A

Aruba R9F66A bir yönetilebilir switch'tir. Öne çıkan özellikleri: high-performance with 2000 mpps. hpe aruba networking designed the data center for core/aggregation in the campus or top-of-rack (tor) or end of row (eor), aos-cx delivers automation and programmability using built-in rest apis and python scripts. highavailability with industry-leading vsx redundancy, and redundant power supplies and fans, intelligent monitoring, visibility, and remediation with hpe aruba networking cx network analytics, compact 1u switches with 1gbe, 10gbe, 25gbe, 40gbe, and 100gbe connectivity. advanced layer...

Port hızı: 10G uplink
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. Highavailability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations:; 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE; 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX8325-32C Port-to-Power Airflow 6xFan 2xPSU Switch Bundle

Teknik Özellikler 13 satır

Güç Tüketimi	Maximum: 618W depending on the model Idle: 143W depending on the model
Isı Yayılımı	Maximum: 2110 BTU/hr
Giriş Gerilimi	100–240 VAC -36–72 VDC
Portlar	(32) 100G QSFP28 ports
Anahtarlama Kapasitesi	CX 8325 and CX 8325P models provide 6.4 Tbps switching capacity; CX 8325H models provide high-performance ASIC switching capacity of 2.16 Tbps (full-duplex) with 18 ports of 1/10/25G and 4 ports of 40/100G and ASIC switching capacity of 4 Tbps
İstifleme (Stack)	These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).
Veri Hızı	Maximum depending on model: For CX 8325 and CX 8325P and CX 8325H-16C models: 2000 Mpps For CX 8325H-18Y4C models: 1000 Mpps
Bellek ve İşlemci	For CX 8325 models: CPU: 2.2 GHz Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash Packet Buffer: 32 MB; For CX 8325P models: CPU: 2.2 GHz Memory, Drive and Flash: 32 GB RAM, 128 GB SSD, 4 GB Flash Packet Buffer: 32 MB; For CX 8325H models: CPU: AMD® x86 8-core processor Memory: 32 GB, 120 GB SSD Packet Buffer: 32 MB
Güç Kaynağı	Field-replaceable, hotswappable, and up to 2 power supplies or 2 fixed power supplies (1+1) in CX 8325H models
Çalışma Sıcaklığı	CX 8325: 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.); CX 8325P: 0°C to 40°C (32°F to 104°F) up to 3.0 km (10,000 ft.) CX 8325H: 0°C to 45°C (32F-113F)* (F2B); 0°C to 40°C (32F-104F)* (B2F) at sea level Derate 1°C for every 1,000 ft to 10,000 ft (300 m to 3.0 km)
Yönetim Özellikleri	Industry-standard CLI with hierarchical structure SNMP v2c and v3 sFlow (RFC 3176) Remote monitoring (RMON) Precision Time Protocol (PTP) Class C (G.8275.1 and G.8275.2) REST APIs RJ45 serial console RJ45 Ethernet port Micro-USB console
Garanti	Limited lifetime warranty.
Fanlar	Fieldreplaceable, hotswappable, and up to 6 fans or 4 fixed fans (N+1) in CX 8325H models

Genel bakış

Aruba R9F66A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This gamechanging solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned controlplane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor.

The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are

high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

The HPE Aruba Networking CX 8325 Switch Series is a campus core and aggregation switch and data center (ToR) solution with an innovative and powerful approach to dealing with the cross-domain demands of the mobile, cloud, and IoT era.

High-performance with 2000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or end of row (EoR)
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. Highavailability with industry-leading VSX redundancy, and redundant power supplies and fans
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking CX Network Analytics
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock
CX 8325H has two variations:; 2.16 Tbps half-width fixed switch that supports 18 ports of 1/10/25GbE and 4 ports of 40/100GbE; 4 Tbps half-width fixed switch that supports 16 ports of 40/100GbE

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 8325 Switch SeriesPDF · R9F66A

Sık sorulanlar

R9F66A hakkında kısa yanıtlar.

R9F66A fiyatı ne kadar?

R9F66A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
