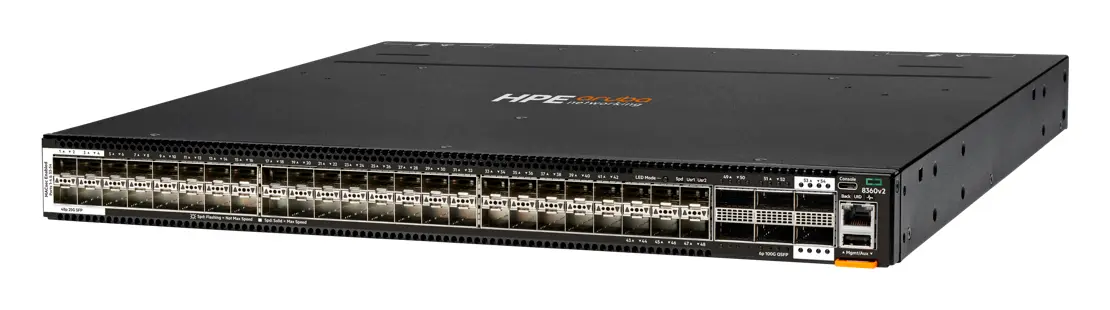

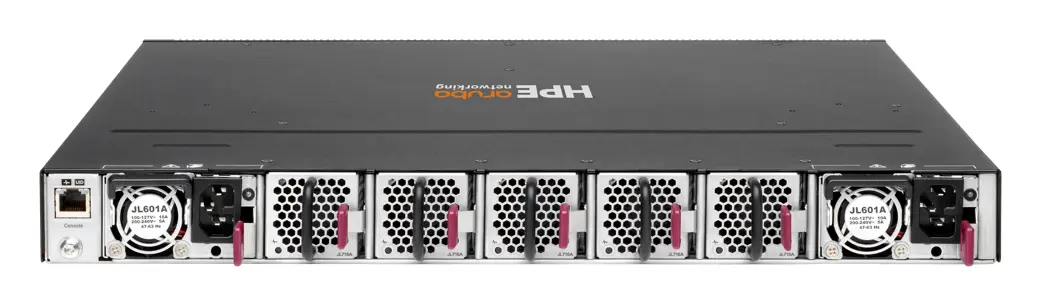

Aruba R9G22A CX8360-48Y6C v2 Port-to-Power Airflow 5xFan 2xPSU Attached Veri Merkezi Switch

ModelR9G22A

Aruba R9G22A bir yönetilebilir switch'tir. Öne çıkan özellikleri: 48-port 1/10/25g with 4 macsec, 6-port of 40/100g with 2 macsec (macsec secured connectivity over untrusted domains), high performance fully distributed architecture provides up to 4.8 tbps switching and 1786 mpps for forwarding, intelligent monitoring and visibility are delivered by the hpe aruba networking cx network analytics engine (nae), high availability with industry-leading.

Port hızı: 10G uplink
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX8360-48Y6C v2 Port-to-Power Airflow 5xFan 2xPSU Attached Switch Bundle

Teknik Özellikler 7 satır

Model Farkı	CX 8360 v2 bundles include redundant fan, redundant power supply, and a 2-post rack kit. 4-post rack kit must be ordered separately.
Giriş Gerilimi	100-127 VAC/200-240 VAC 10A (Low Voltage) / 5A (High Voltage)
Portlar	44-port of 1/10/25GbE (SFP/SFP+/SFP28) 4-port of 10/25GbE (SFP+/SFP28) with MACsec 4-port of 40/100GbE (QSFP+/QSFP28) 2-port of 40/100GbE (QSFP+/QSFP28) with MACsec
Veri Hızı	1309 Mpps depending on the model
Güç Kaynağı	2 field-replaceable and hot-swappable power supplies depending on the model
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5000 ft
Garanti / Fanlar	Limited lifetime warranty. 5 field-replaceable and hot-swappable fans

Seri Özellikleri 7 satır

Güç Tüketimi	Maximum: 350W to 725W depending on the model Idle: 110W to 230W depending on the model
Isı Yayılımı	1,109 to 1,450 BTU/hr depending on the model
Anahtarlama Kapasitesi	Provides up to 4.8 Tbps for bidirectional switching depending on the model
Bellek ve İşlemci	CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB
Yönetim Özellikleri	RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A
Garanti	Limited lifetime warranty.
Fanlar	3 field-replaceable and hot-swappable fans

Genel bakış

Aruba R9G22A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 8360 v2 Switch Series is designed for nextgeneration core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor.

These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.

HPE Aruba Networking CX 8360 v2 Switch Series features HPE Aruba Networking CX Switch Operating System (AOS-CX) which simplifies the complexities of managing data center networks with automation options to match your IT organization’s operating model.

It proactively detects issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch.

48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability with industry-leading
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 8360 v2 Switch SeriesPDF · R9G22A

Sık sorulanlar

R9G22A hakkında kısa yanıtlar.

R9G22A fiyatı ne kadar?

R9G22A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
