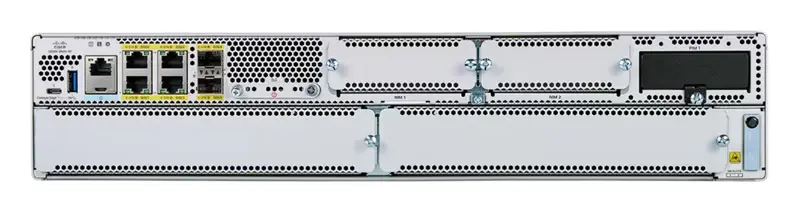

Cisco C8300-2N2S-6T Catalyst 8300 SD-WAN Router
Model
C8300-2N2S-6TCisco C8300-2N2S-6T router: C8300 2RU w/ 1G WAN, (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports), Multicore processors, Embedded IPsec VPN hardware acceleration, Integrated Gigabit Ethernet ports.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- C8300 2RU w/ 1G WAN
- (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 49 satır
| 1G Port Yoğunluğu | 6 |
|---|---|
| Modül Yuvaları | 2 SM; 2 NIM; 1 PIM |
| Bellek (DRAM, varsayılan) | 8 GB |
| Depolama (M.2 SSD, varsayılan) | 16 GB |
| SD-WAN IPsec Throughput (1400Bytes) | Up to 2Gbps |
| SD-WAN IPsec Throughput with IQDF (1400Bytes) | Up to 2Gbps |
| SD-WAN IPsec Throughput (IMIX) | 1.8Gbps |
| SD-WAN IPsec Throughput with IQDF (IMIX) | 1.7Gbps |
| SD-WAN Overlay Tunnels scale | 6000 |
| 50% IQDF + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) | 2.8Gbps |
| DIA w. NAT + NGFW + IPS + URLF + AMP | 2.3Gbps |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 19.7Gbps |
| IPsec Throughput (1400Bytes) | Up to 1.9Gbps |
| IPsec Throughput (IMIX) | 1.9Gbps |
| Number of IPsec SVTI Tunnels | 4000 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 8K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
| Number of Firewall Sessions | 512K |
| Number of VRFs | 4000 |
| Typical power (watts) | 89W |
| Minimum Yazılım Sürümü | Cisco IOS XE Software Release 17.3.2 |
| Boyutlar (Y x G x D) | 3.5 in. x 17.25 in. x 18.52 in. |
| Rack Yüksekliği (RU) | 2RU |
| Chassis weight with 2X AC power supplies and fan tray | 40 lbs |
| Acoustics: Sound pressure (Typical/maximum) | 59 dBa/73 dBa (Non-NEBS); 63 dBa/75 dBa (NEBS) |
| Acoustics: Sound power (Typical/maximum) | 74 dBa/87 dBa (Non-NEBS); 77 dBa/89 dBa (NEBS) |
| Giriş Gerilimi | AC: 85 to 264 VAC; DC: -40 to 72V; 48V nominal |
| Çalışma Sıcaklığı | 32 to 104°F; (0 to 40°C) |
| Depolama Sıcaklığı | -40 to 150°F; (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5 to 85%; Ambient (noncondensing) nonoperating and storage: 5 to 95% |
| Rakım | 0 to 10,000 feet; (0 to 3050 meters) |
| MTBF (Arızalar Arası Ortalama Süre) | 710,300 hours |
| Güvenlik Sertifikaları | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC/EN 60825 Laser Safety; FDA: Code of Federal Regulations Laser Safety |
| EMC (Emissions) | 47 CFR Part 15 Class A; ICES 003 Class A; AS/NZS CISPR 32 Class A; CISPR 32 Class A; EN55032 Class A; VCCI-CISPR 32 Class A; CNS-13438 Class A; KN32 Class A; IEC/EN 61000-3-2: Power Line Harmonics; IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
| EMC (Immunity) | IEC/EN-61000-4-2: Electrostatic Discharge Immunity; IEC/EN-61000-4-3: Radiated Immunity; IEC/EN-61000-4-4: Electrical Fast Transient Immunity; IEC/EN-61000-4-5: Surge AC, DC, and Signal Ports; IEC/EN-61000-4-6: Immunity to Conducted Disturbances; IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity; IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations; KN35 |
| EMC (ETSI/EN) | EN300 386: Telecommunications Network Equipment (EMC); EN55032: Multimedia Equipment (Emissions); EN55024: Information Technology Equipment (Immunity); EN55035: Multimedia Equipment (Immunity); EN61000-6-1: Generic Immunity Standard |
| Protokoller | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast Sparse Mode (PIM SM), … |
| Encapsulations | Generic Routing Encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) |
| Traffic management | Quality of Service (QoS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), and Network-Based Application Recognition (NBAR) |
| Cryptographic algorithms | Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
| Unified Communication | Call Admission Control (CAC), Cisco Unified Border Element (CUBE) Session Border Controller(SBC), Cisco Unified Communications Manager Express (CUCME), ISDN, RADIUS, RFC4040 based Clear Channel codec signaling with SIP, Resource Reservation Protocol (RSVP), RTP Control Protocol (RTCP), Session Initiation Protocol for VoIP(SIP), Survivable Remote Site Telephony (SRST), Secure Real-time Transport … |
| Core Features | IPv4, IPv6, static routes, Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), BoGateway Protocol (BGP), Overlay Management Protocol (OMP), Application Aware Routing (AAR), Traffic EngineerinService Insertion, zero-trust, whitelisting, tamper-proof module, DTLS/TLS, IPsec, classification, prioritization, low latequeuing, remarking, shaping, scheduling, policing, … |
| Application Experience | Quality of service (QoS), Forward Error Correction (FEC), COS Marking, Weighted Random Early Detection (WRED)Hierarchical QoS, Policy-Based Routing (PBR), Network-Based Application Recognition (NBAR), Software Defined A Visibility and Control (SD-AVC), per tunnel QoS, Cloud onRamp for SaaS, Enhanced Office 365 traffic steering, DirecAccess, Flexible Netflow (FnF) |
| Cryptographic Algorithms (Teknik Özellikler) | Encryption: AES-256 (in CBC and GCM modes), Internet Key Exchange (IKE), Cisco PKI; Authentication: AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit); Integrity: SHA-1, SHA-2 |
| Security | Built-in end-to-end segmentation (VPNs), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL Filtering, Advanced Protection (AMP), ThreatGrid (TG), ALG for ZBFW |
Sipariş Bilgileri 2 satır
| Ürün Tanımı (Üretici) | C8300 2RU w/ 1G WAN; (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports) |
|---|---|
| Planlanan Satış Sonu (End-of-Sale) Tarihi | 31.07.2027 |
Genel bakış
Cisco C8300-2N2S-6T kullanım alanları ve özellikleri.
Cisco C8300-2N2S-6T, Catalyst 8300 ailesinden şube ve kurumsal ağlar için güvenli SD-WAN destekli router platformudur.

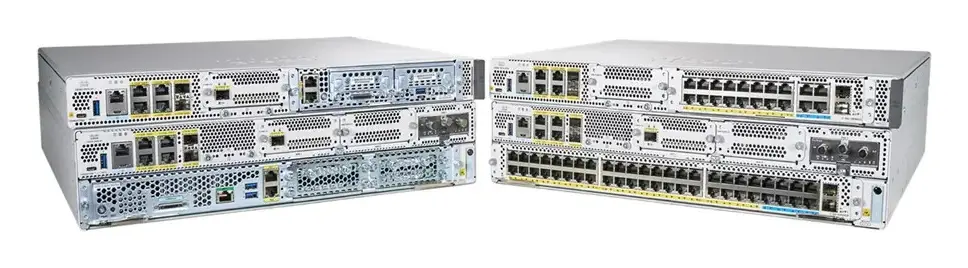

The Cisco Catalyst 8300 Series Edge Platforms are best-of-breed, 5G-ready, cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
Cisco Catalyst 8300 Series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale Catalyst SD-WAN solution for the branch. The Catalyst 8300 Series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.
Öne Çıkan Özellikler
- C8300 2RU w/ 1G WAN
- (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
- Default dual power supplies
- Modularity and form factor
- Integrated security
- Dedicated management for netops and secops
Tüm özellikler
- C8300 2RU w/ 1G WAN
- (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
- Multicore processors
- Embedded IPsec VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- DRAM
- Flash memory support
- M.2 storage
- Default dual power supplies
- Modularity and form factor
- Integrated security
- Dedicated management for netops and secops
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
C8300-2N2S-6T hakkında kısa yanıtlar.
C8300-2N2S-6T fiyatı ne kadar?
C8300-2N2S-6T için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, C8300-2N2S-6T için fiyat ve teslim süresini iletelim.
